414 CC
2022
414 CC
w/ Quad Mercury® 350 XXL Verado® Phantom Black Standard
Price Excludes Optional Trailer
| View Price w/ Prep & Freight: | Select Dealer |
|
NO HAGGLE NO HASSLE® National Price
Base Price
|
$654940
USD
|
Overview

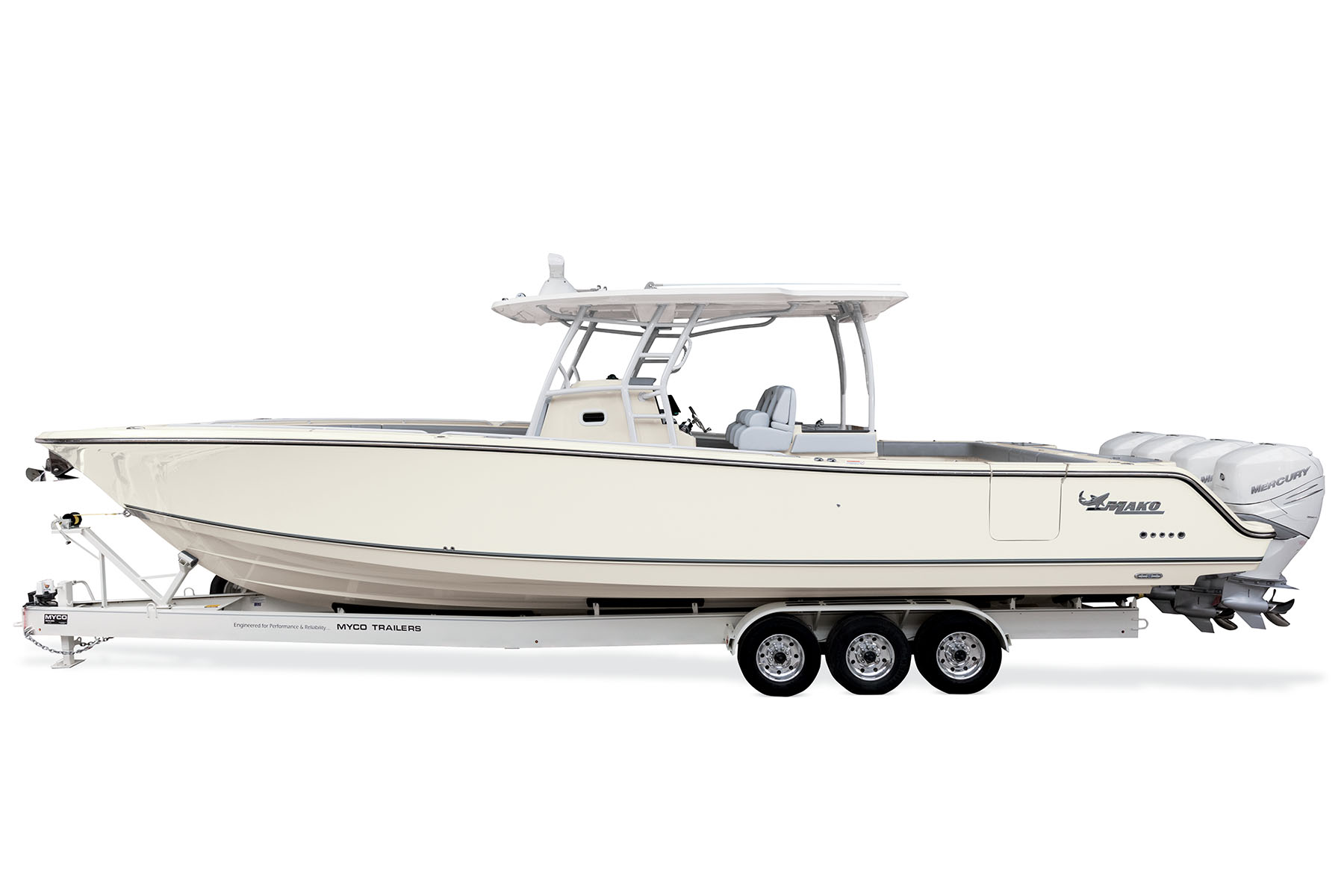

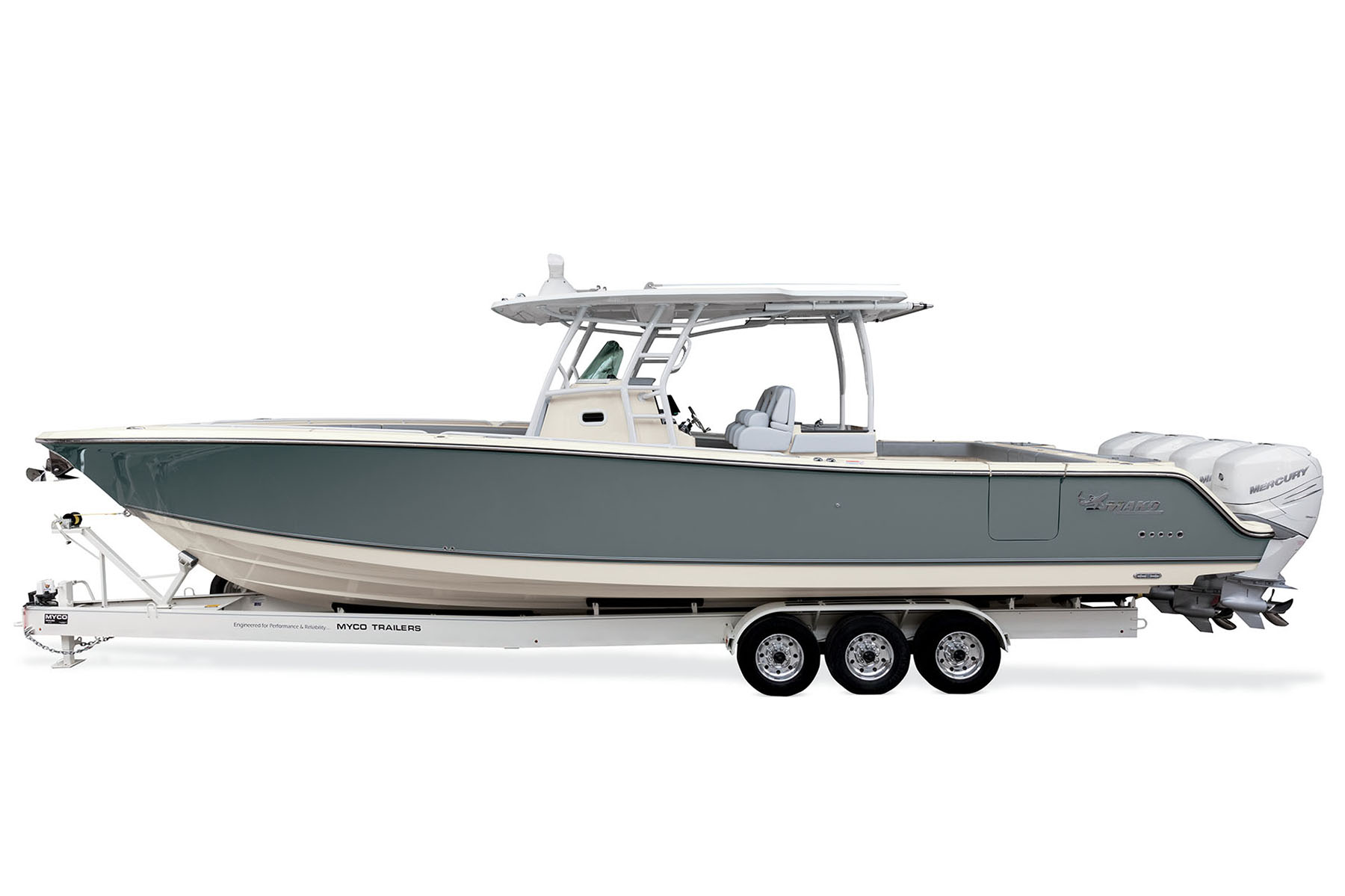

The MAKO® 414 CC features a beautiful fit and finish, premium fishing features and state-of-the-art technology. It's ready to safely take you and your crew to the horizon and back for the adventure of a lifetime.
Standard features include a walk-down head, bow lounges, 275-qt. cooler, tuna door with dive ladder, Garmin® electronics package and much, much more!
Features
Fishboxes
Both 290-qt. insulated fishboxes feature Gulper macerator pumps.
Livewells
The 34-gal. livewells have rounded corners to protect the inhabitants.
Dive door
The tuna/dive door also features a stowable stainless steel ladder.
Videos
Specifications
| Length | 12.5 m | 41' |
| Beam | 3.63 m | 11' 11'' |
| Bottom Width | 3.22 m | 10' 6.75'' |
| Max. Recommended HP | 1675 HP | |
| Fuel Capacity | 2142.31 L | 566 gal. |
| Interior Depth | 93.98 cm | 37'' |
| Transom Height At Center Line | 86.36 cm | 34'' |
| Deadrise | 24 degrees | |
| Draft | 60.96 cm | 24'' |
| Dry Weight | 7638.5 kg | 16840 lbs. |
| Average Hull Weight | 6803.89 kg | 15000 lbs. |
| Average Package Weight | 10432.62 kg | 23000 lbs. |
| Package Height w/Hardtop | 4.06 m | 13' 4'' |
| Storage Length | 14.02 m | 46' |
Motor Options
| AVAILABLE MOTOR | ESTIMATED SPEEDS | PACKAGE PRICE | VIEW PRICE W/ PREP & FREIGHT | ||
|---|---|---|---|---|---|
| Standard | |||||
| Quad Mercury® 350 XXL Verado® Phantom Black | - |
$654940 USD
|
Select Dealer | ||
| Quad Mercury® 350 XXL Verado® Warm Fusion White | - |
$659995 USD
|
Select Dealer | ||
| Quad Mercury® 350 XXL Verado® Phantom Black w/Joystick Piloting | - |
$674940 USD
|
Select Dealer | ||
| Quad Mercury® 350 XXL Verado® Warm Fusion White w/Joystick Piloting | - |
$679995 USD
|
Select Dealer | ||
Features
Certification & Safety
- Backed by MAKO® Assurance 5+Life—the best factory warranty in saltwater boats
- NMMA® yacht certified
- Factory leak tested for hull, plumbing & fitting integrity
- Dual-tone marine horn
- Flush-mounted Ritchie Navigation® Voyager compass

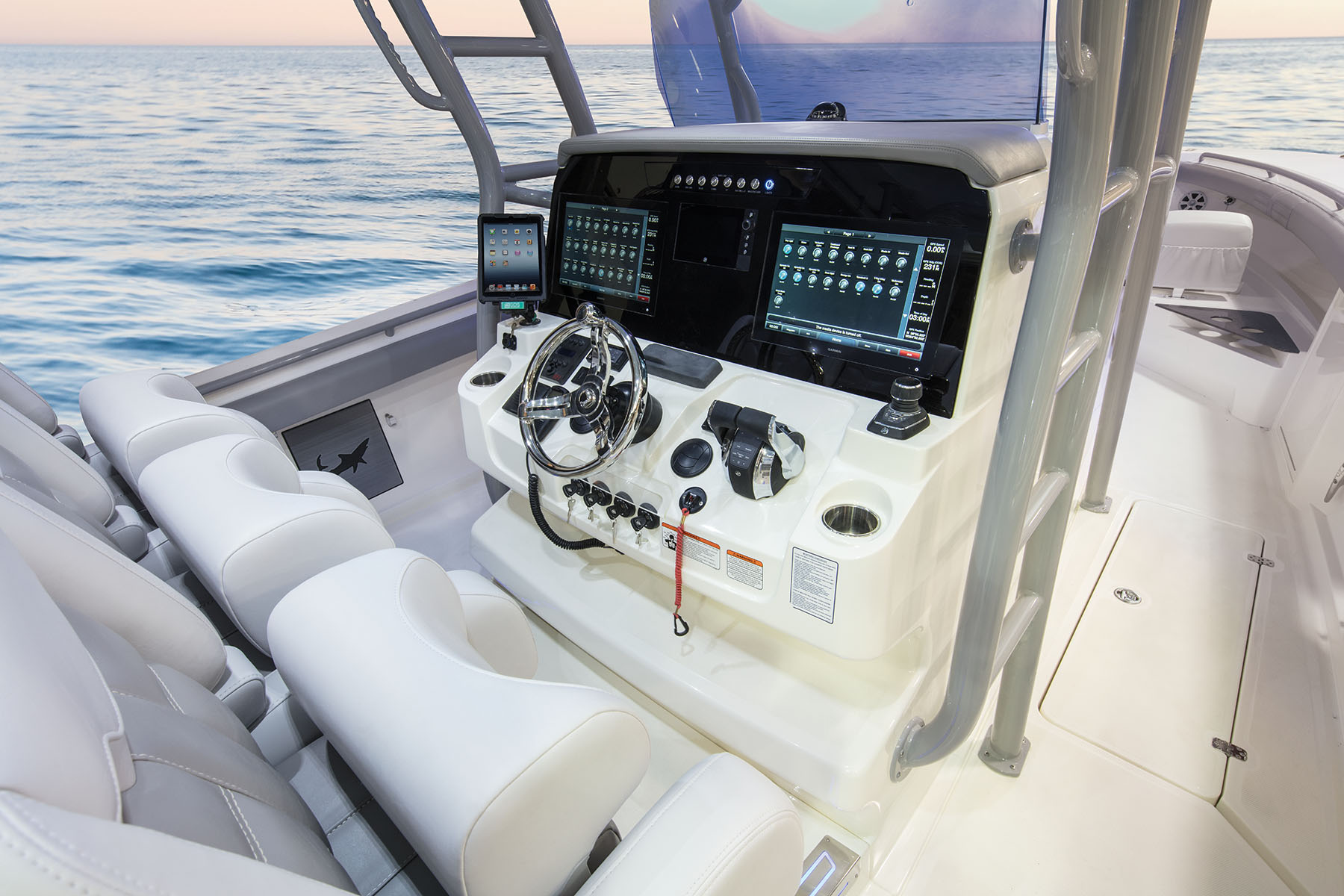

Console

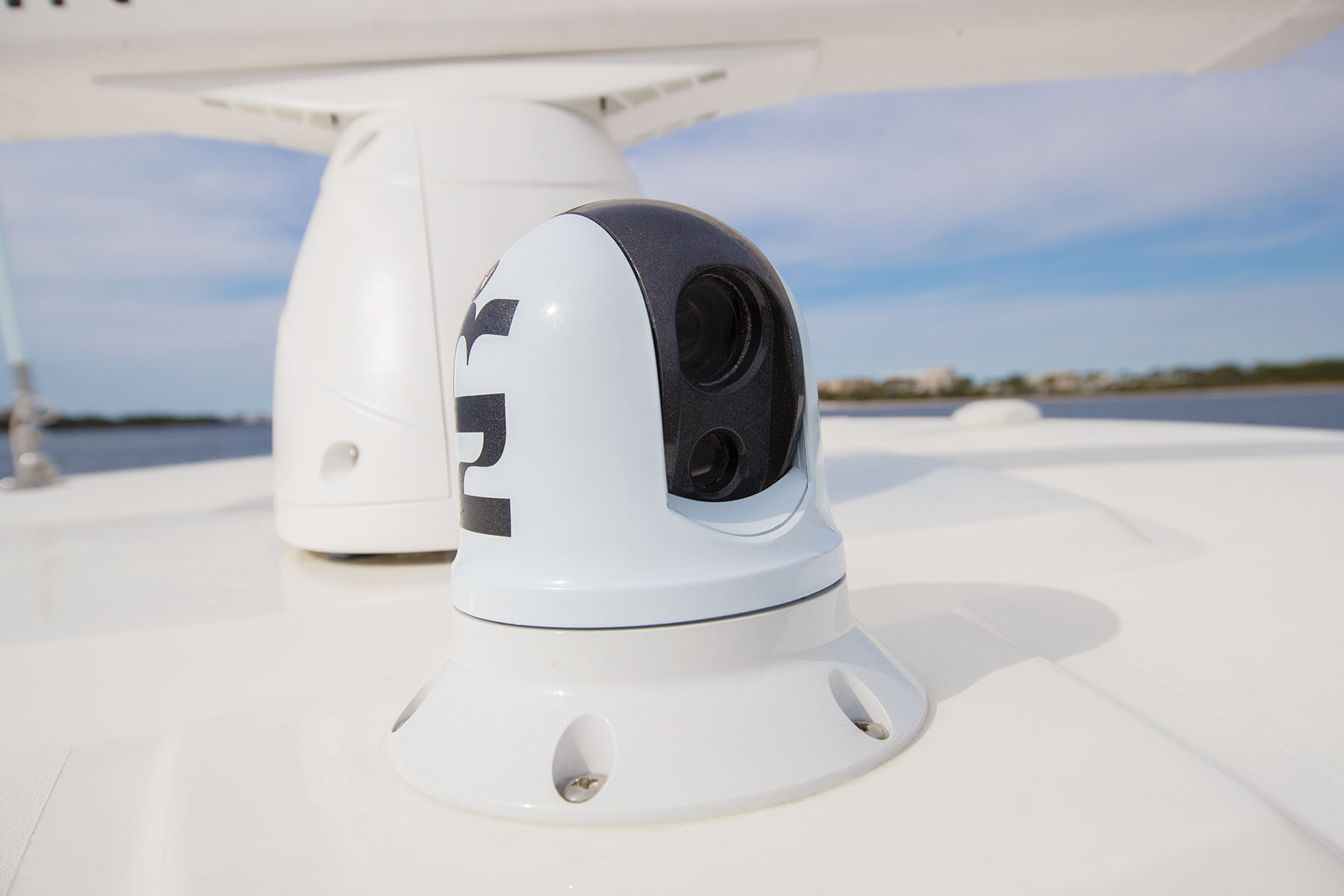

- Garmin® 8617 MFD Package: 2 Garmin® 17" (43.18 cm) GPSMAP® 8617 MFD chartplotter/sonar combos, 2 Garmin® GSD 25 sounder modules, Garmin® GXM™ 51 w/side/downscan transducer, Garmin® VHF radio, 300 Blackbox receiver, open array radar & Airmar B265 w/dual CHIRP transducer
- CZone® digital switching w/comprehensive electrical-monitoring system
- Digital switching through multifunction displays
- Stainless steel tilt steering wheel w/knob
- Binnacle-mounted motor control(s)
- Available w/Mercury® JPO (Joystick Piloting for Outboards) w/Skyhook® auto-positioning GPS (at additional cost)
- Mercury® VesselView®
- Heavy-duty motorized mechanical switching system w/battery selectors & voltage sensing relays (VSR)
- Recessed ignition switches
- Illuminated electrical distribution panel w/digital volt meters
- Illuminated panel & elevator switches
- Mercury® diagnostic port
- Easy access to helm electronics, instruments & switches

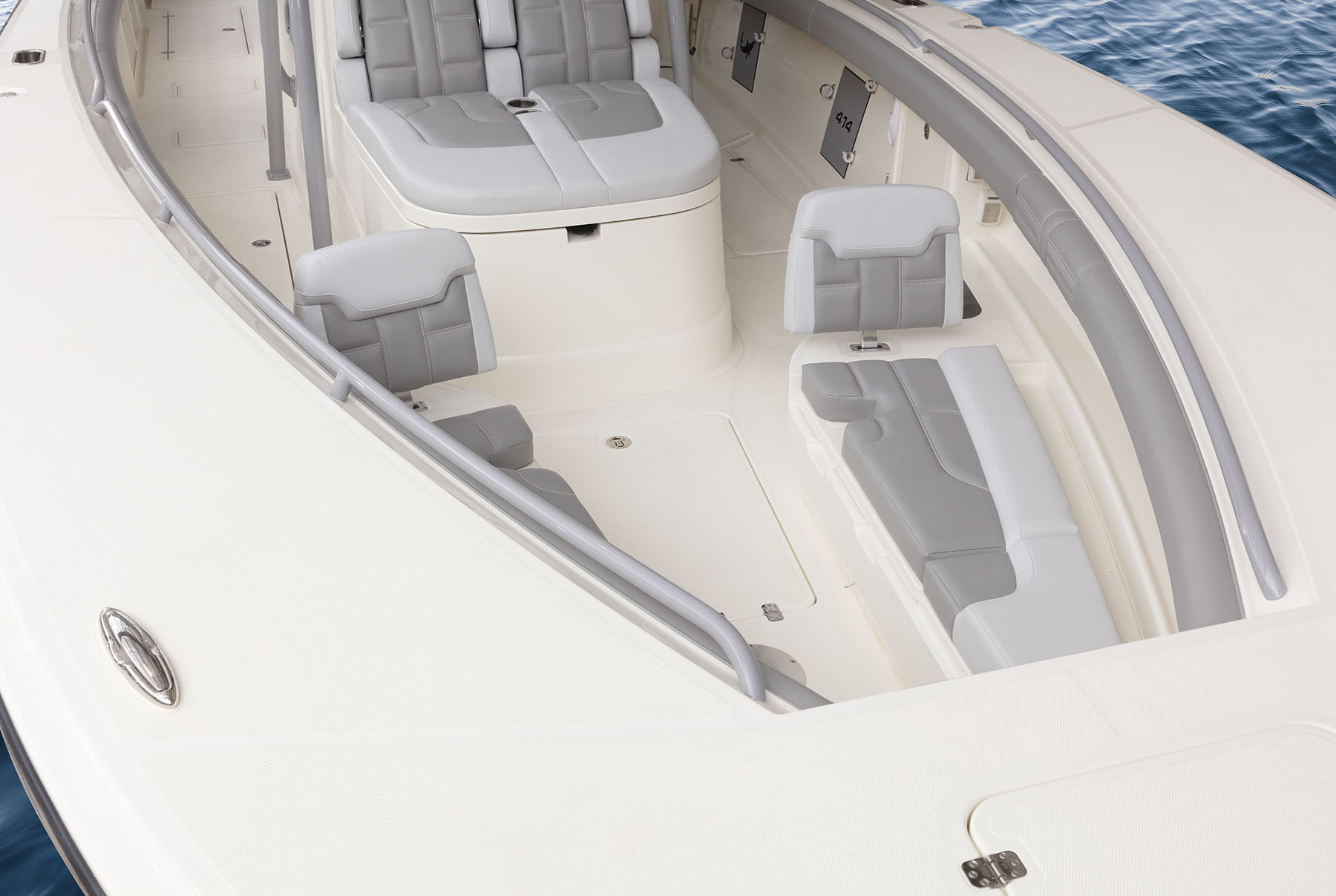

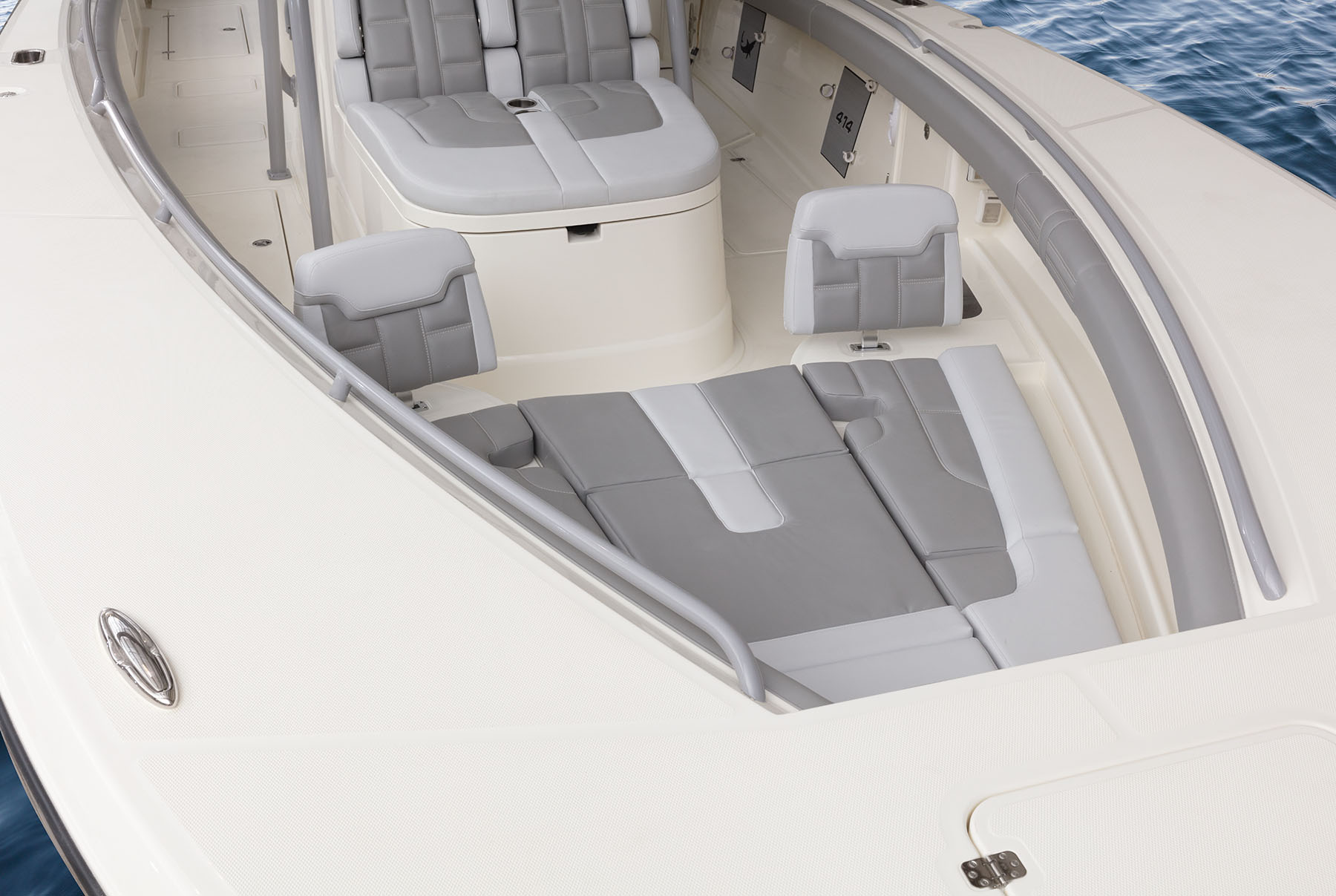

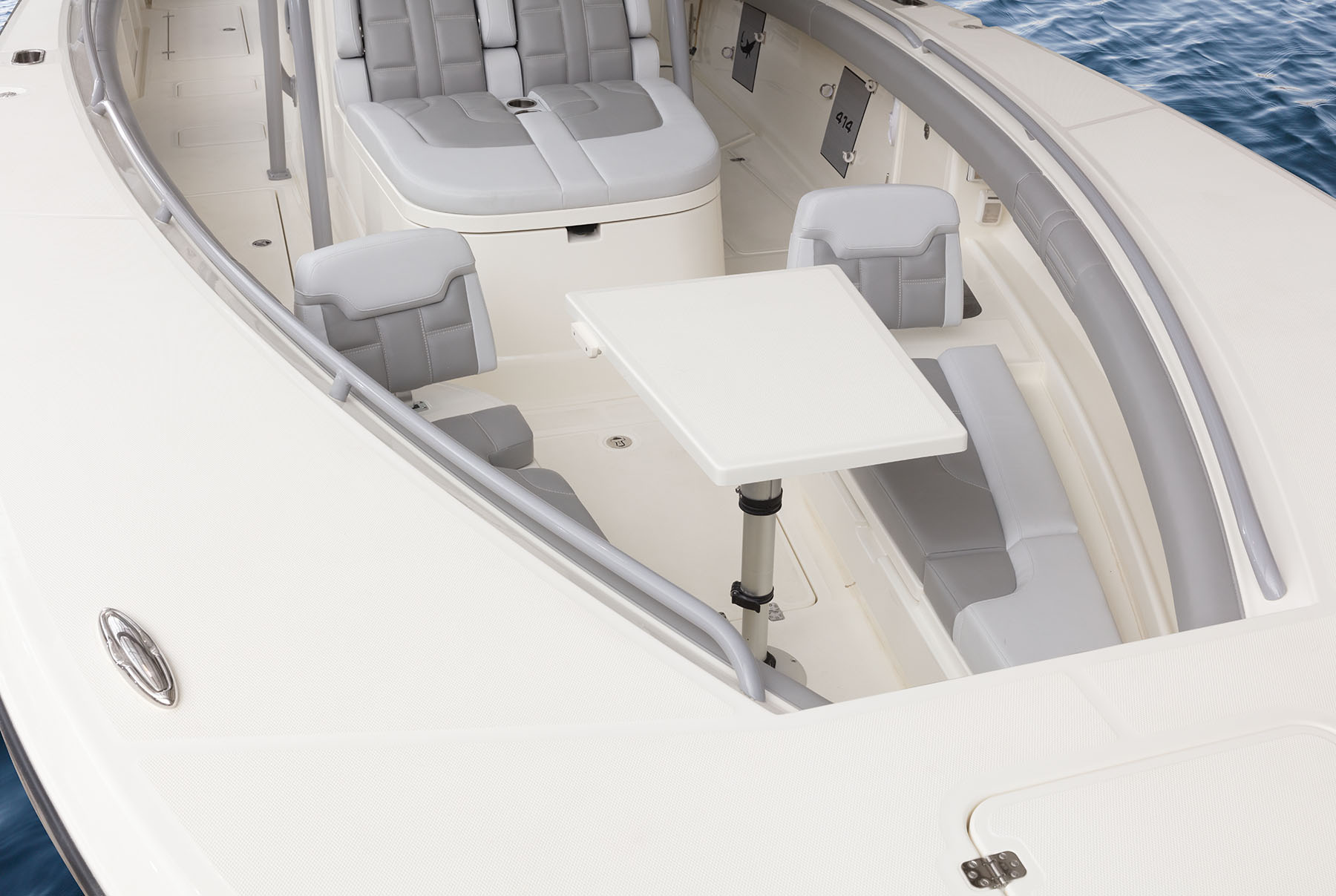

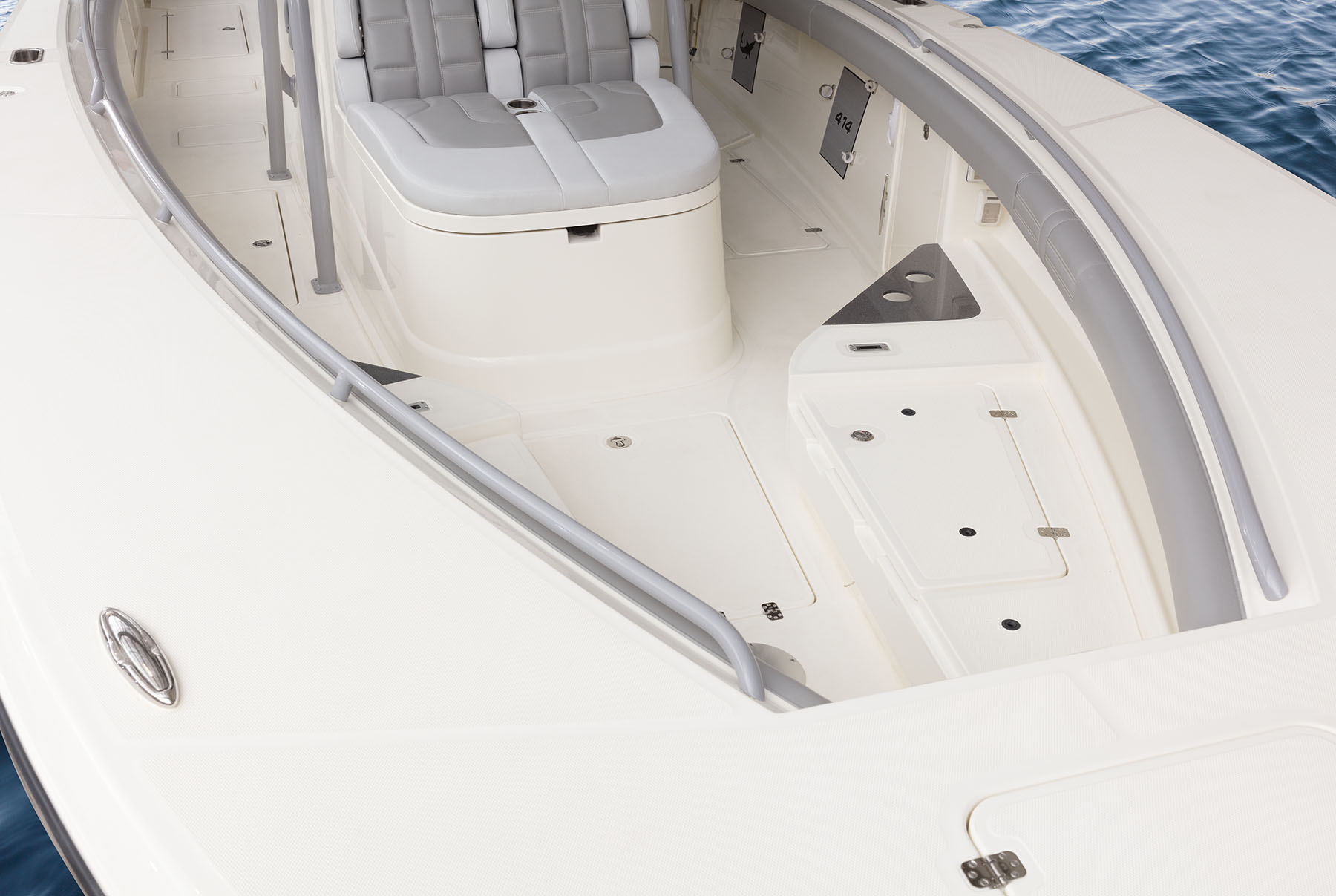

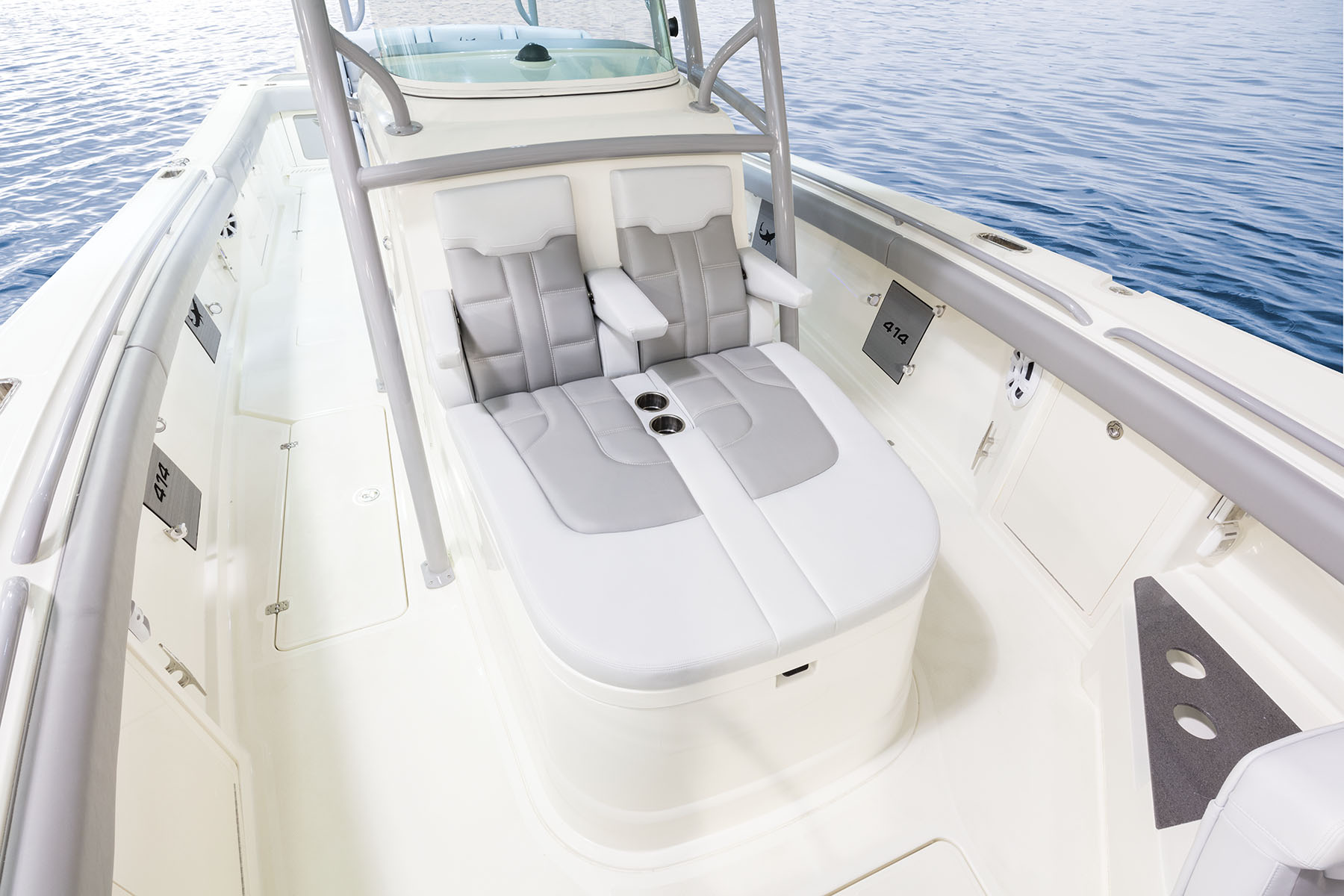

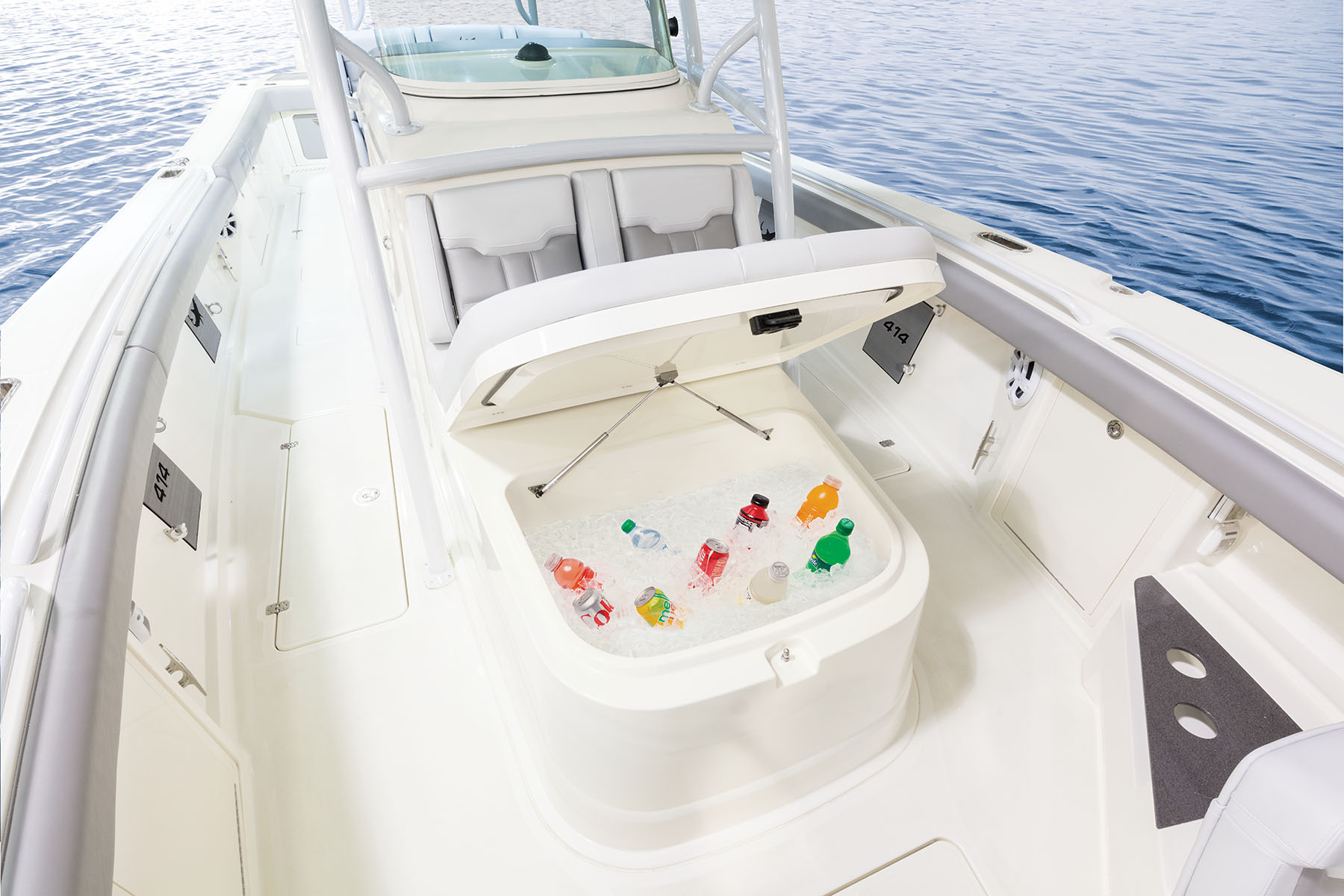

- Oversized cushioned forward-console lounge w/275-qt. (260.25 L) insulated, drained cooler
- Vinyl-covered console brow
- Integrated full-width fiberglass footrest w/non-skid surface
- Tempered safety glass windshield w/aluminum frame
- Marine-grade tinned wiring w/submersible connectors
- Extra-large electronics mounting surface
- 2 console drink holders
- 12V DC outlet & dual USB ports

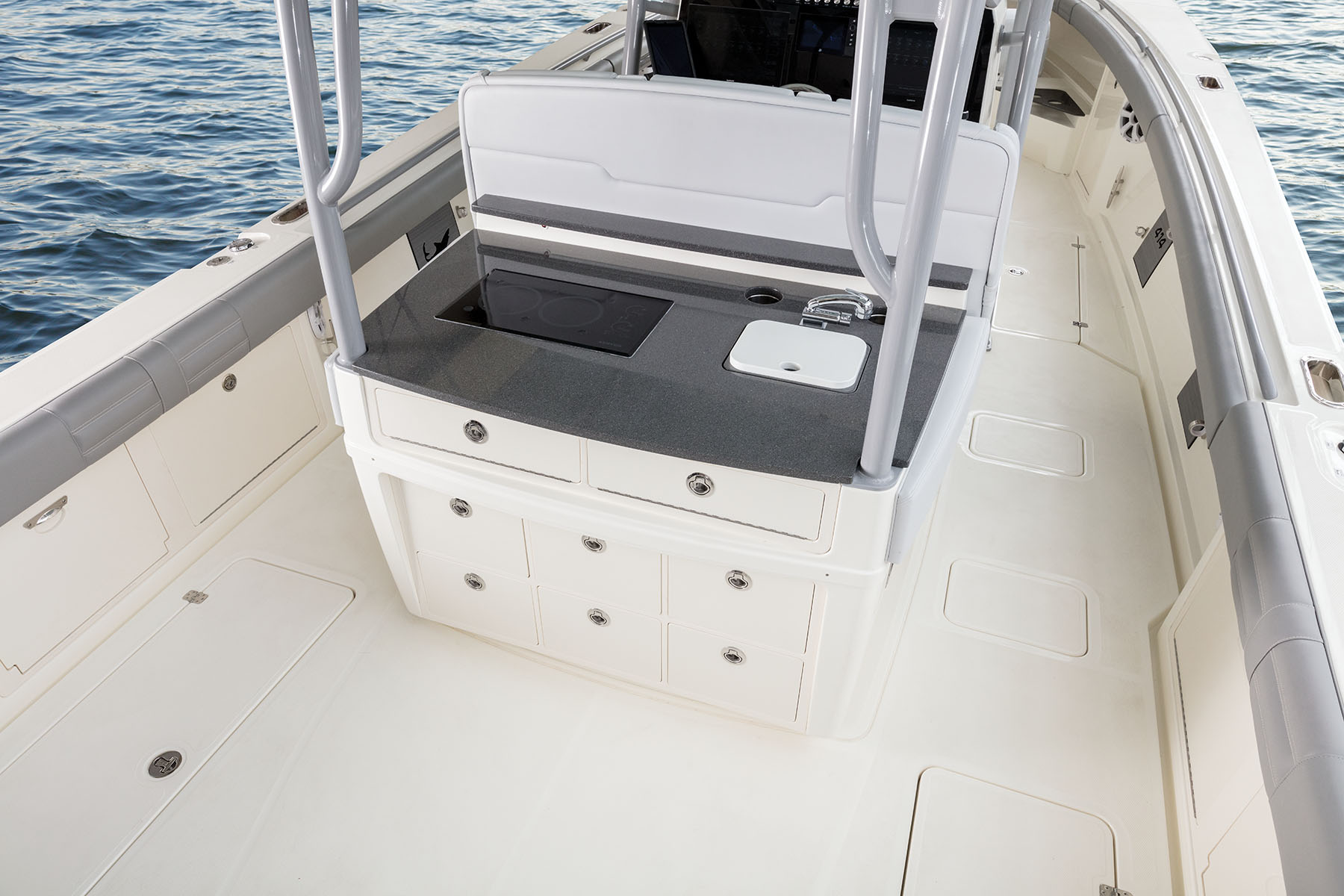

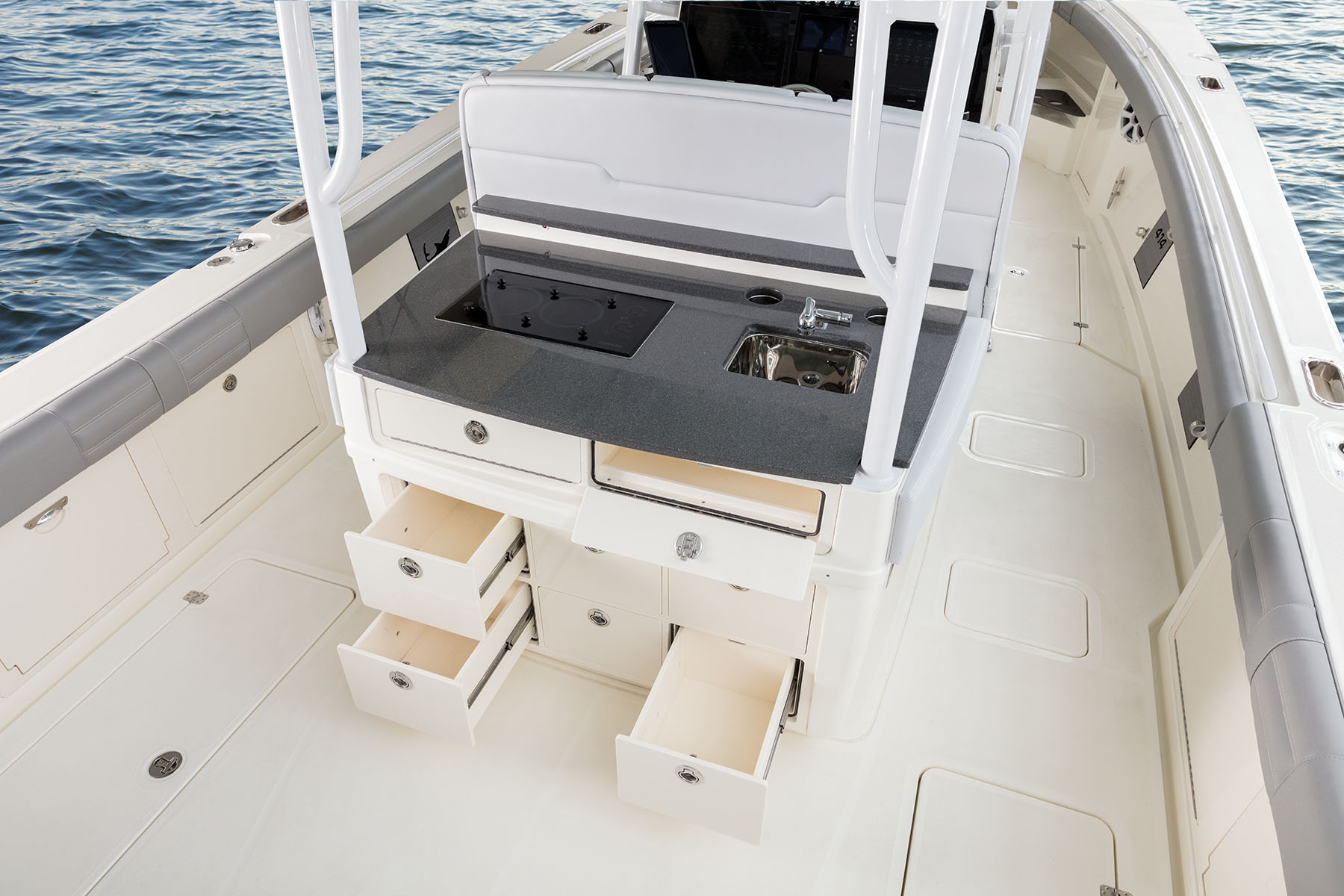

Leaning Post
- Fiberglass leaning post

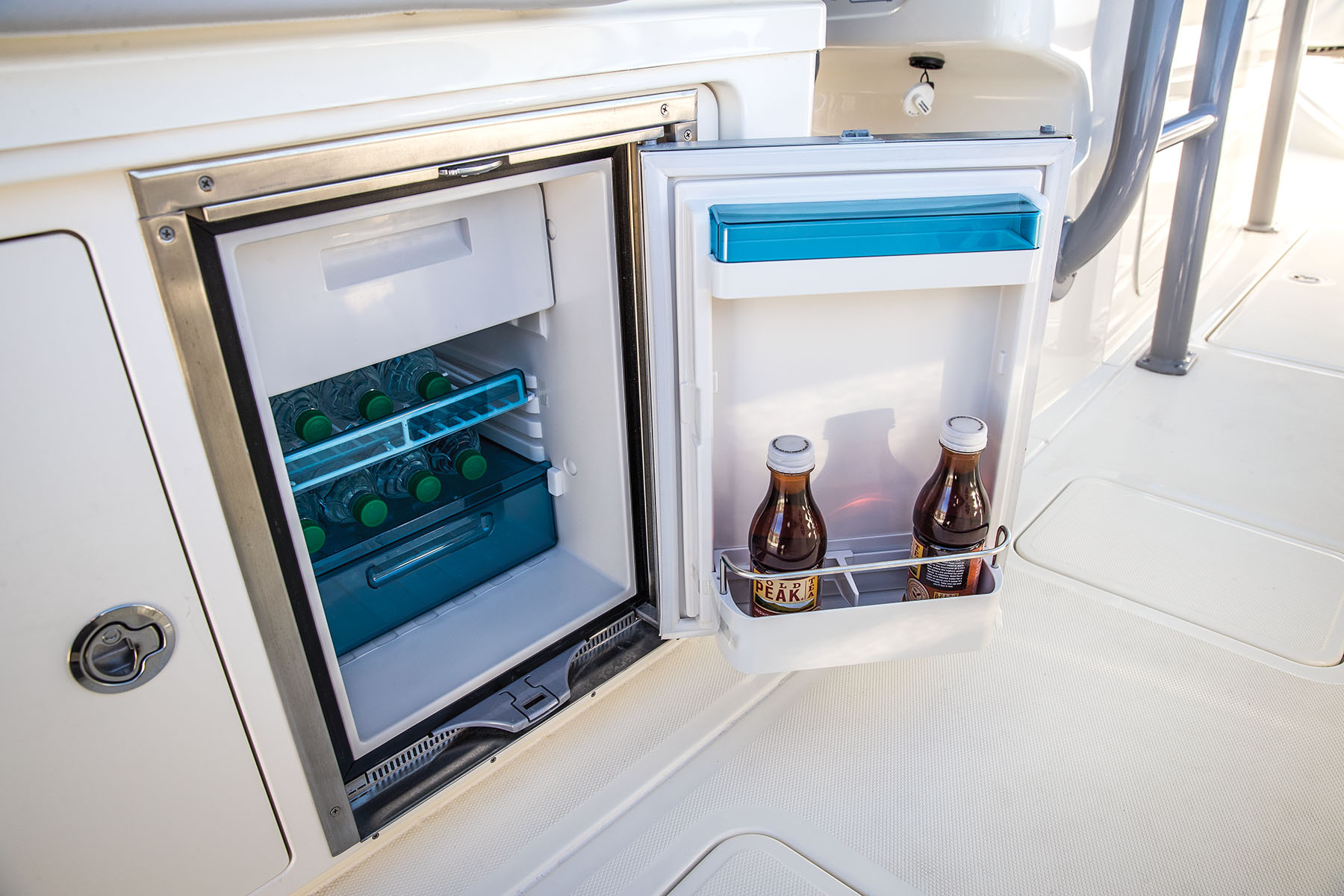

- Dometic® 12V 1.6cu refrigerator
- Armrest
- Backrest
- Tackle storage
- 2 large, hinged top storage drawers
- 6 large, sliding storage drawers
- Stainless steel freshwater sink w/sprayer/pull-out shower
- Diffused LED courtesy light
- Overhead LED lighting
- Battery & charger access below leaning post
- 120V electrical outlet
- Trash bin
- 2 drink holders on leaning post

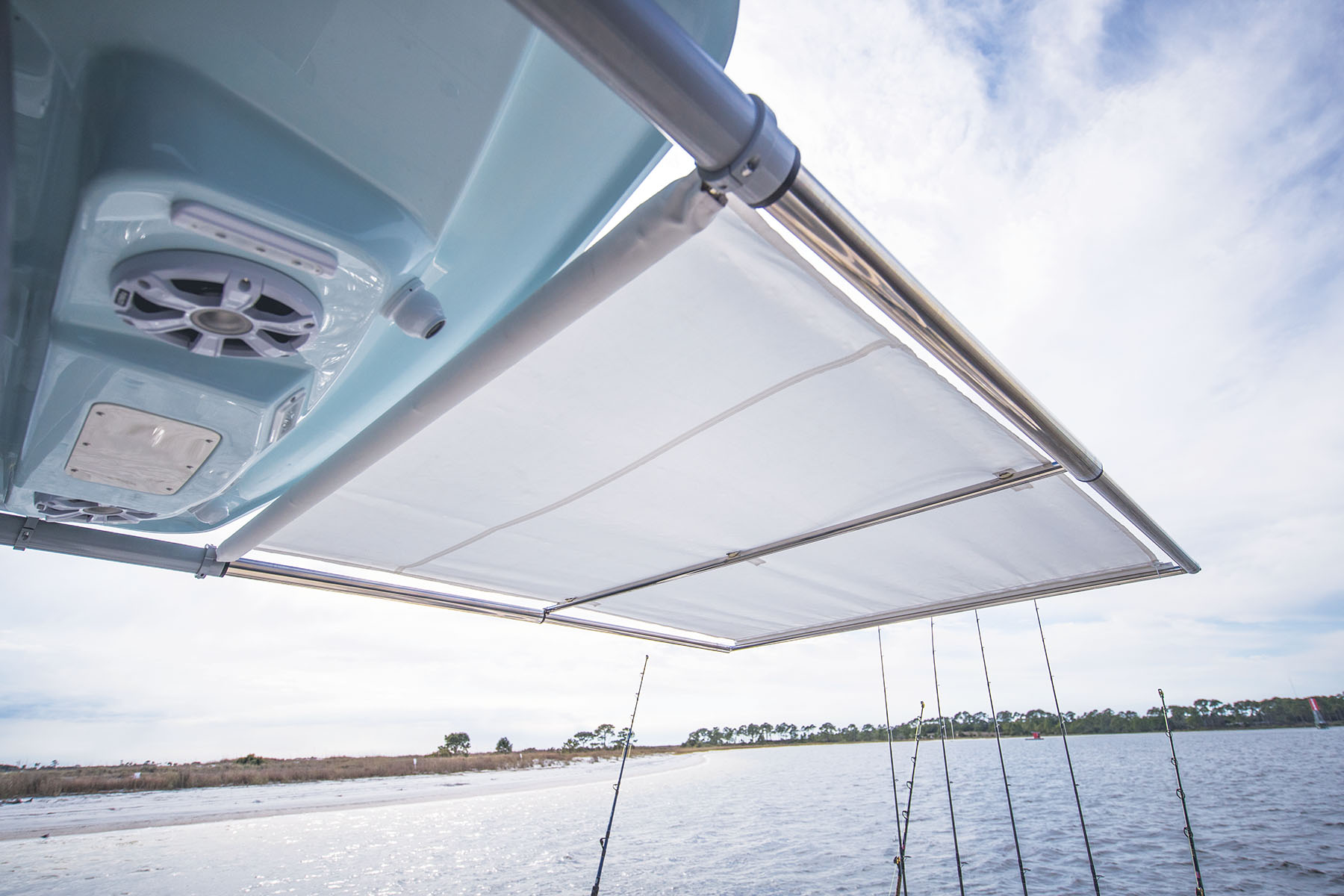

Top

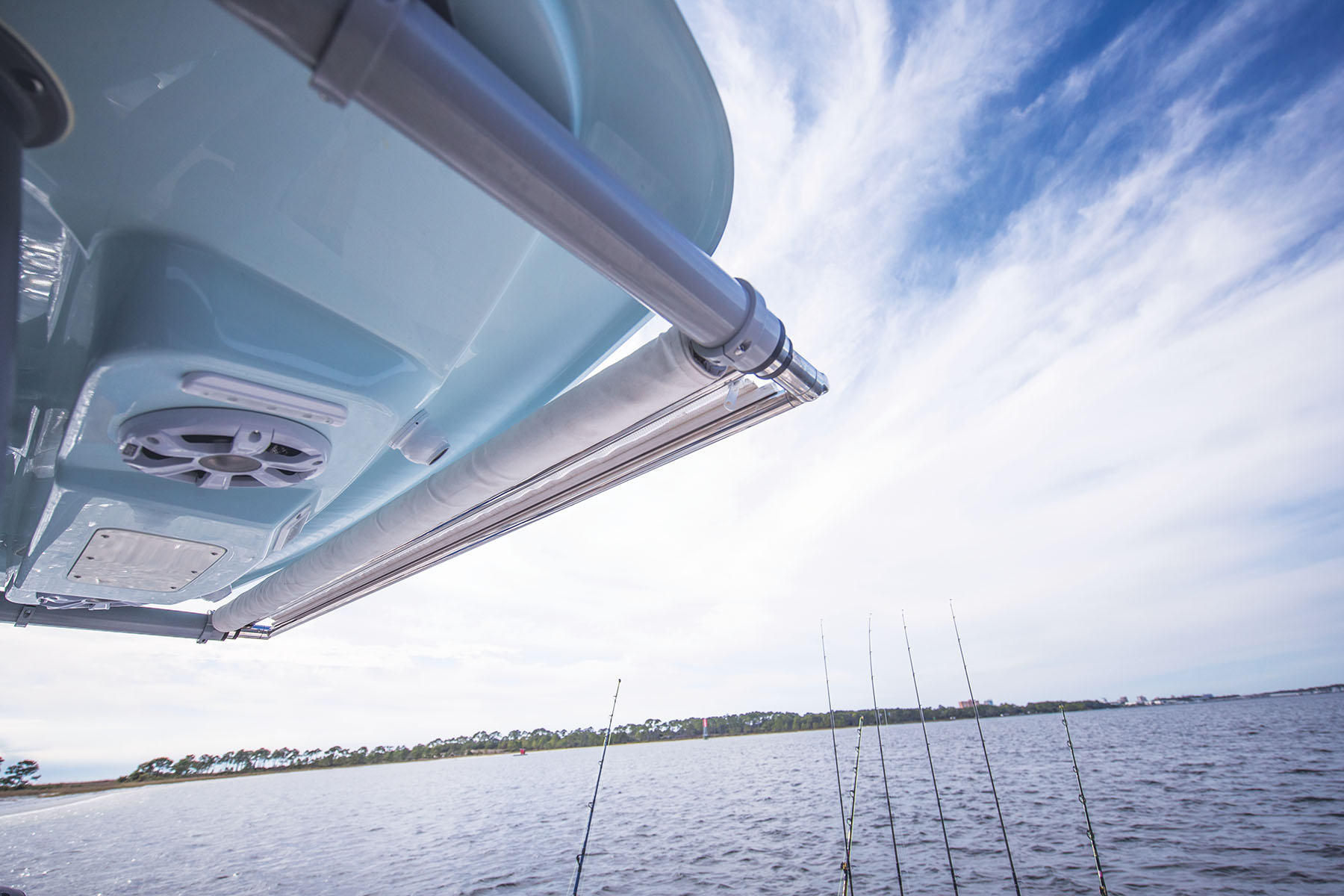

- Outrigger-ready fiberglass hardtop
- .25" (6.35 mm) in-deck aluminum backing-plate reinforcement for frame
- .25" (6.35 mm) in-hardtop aluminum backing-plate reinforcement
- White powdercoated tubular frame
- Integrated port-side ladder w/recessed cut-out for top access
- 2 electronics boxes w/lockable stainless steel latches
- Non-skid hardtop surface

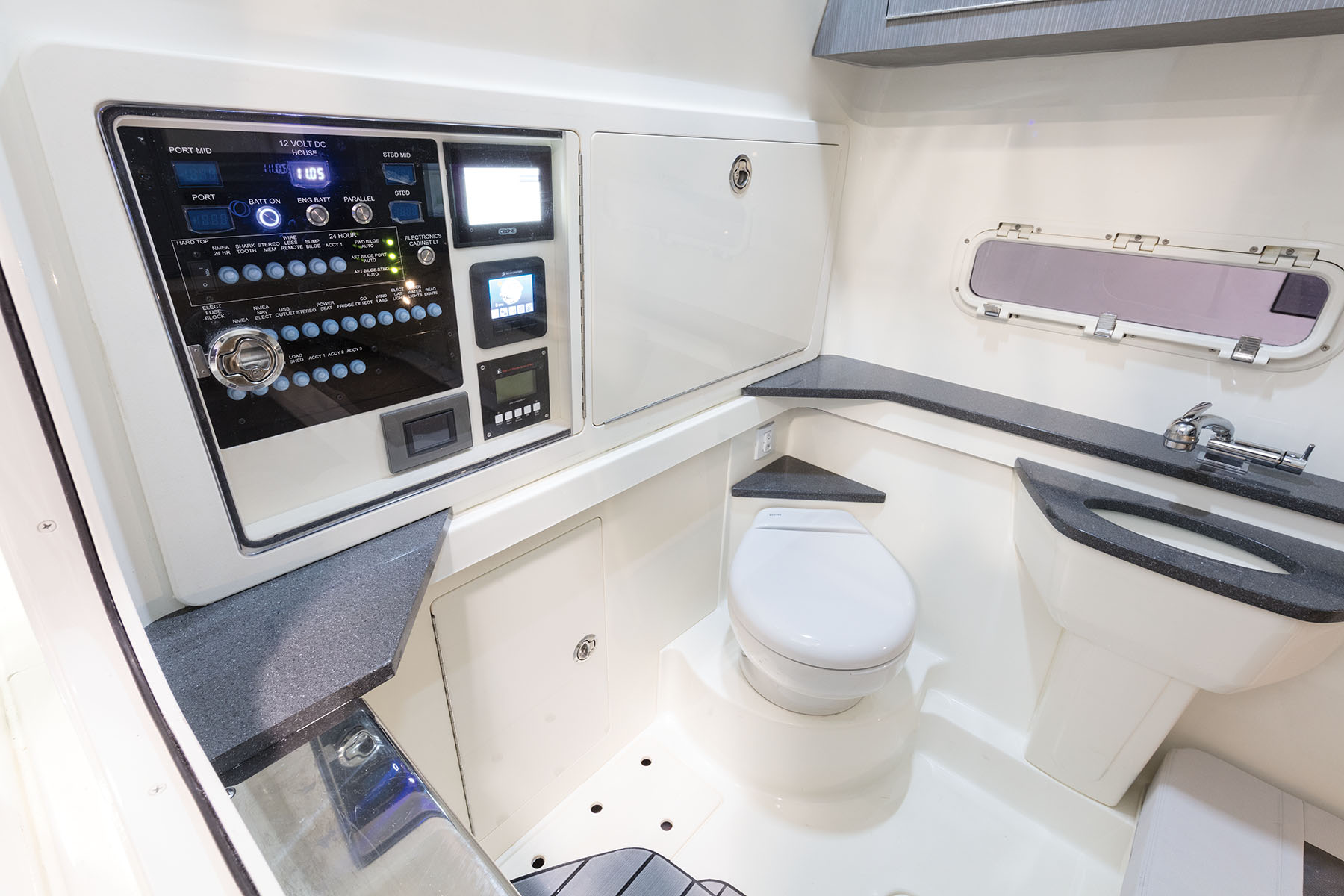

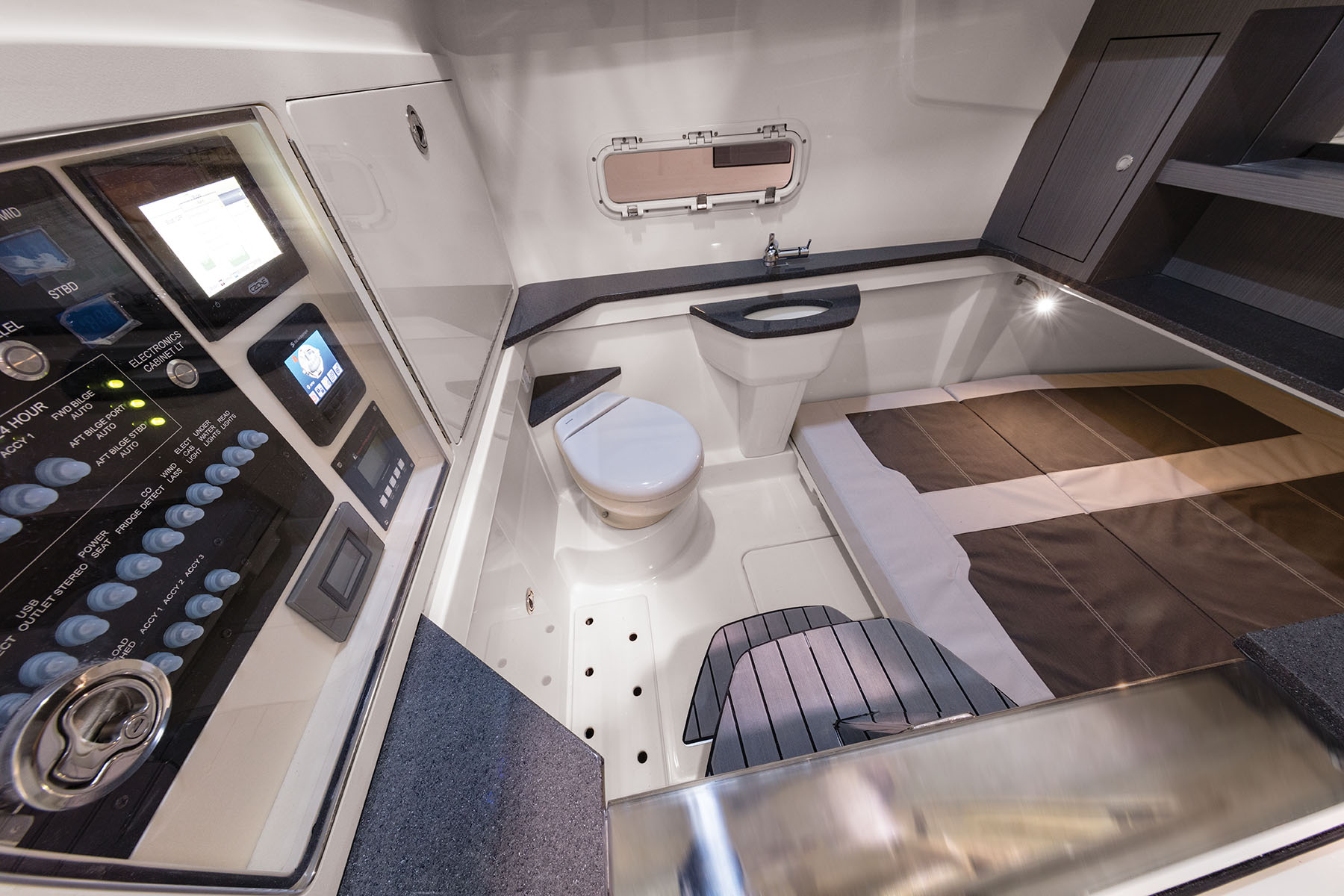

Head
- Main distribution panel w/breakers to bypass digital functions
- Portlight in head door
- 5" (12.7 cm) CZone® monitor
- Custom-molded freshwater sink w/Corian® top
- Hot water pull-out shower head
- Fold-down bunk/storage area w/removable cushions
- Dual overhead cabinet storage
- Tempered safety glass port lights for natural interior lighting
- Bunk reading light
- Gelcoated interior for ease of cleaning
- Wiring, breaker & battery access
- 120V GFCI plug outlet
Interior
- 35-lb. (15.88 kg) Delta® stainless steel anchor w/550' (167.64 m) rode

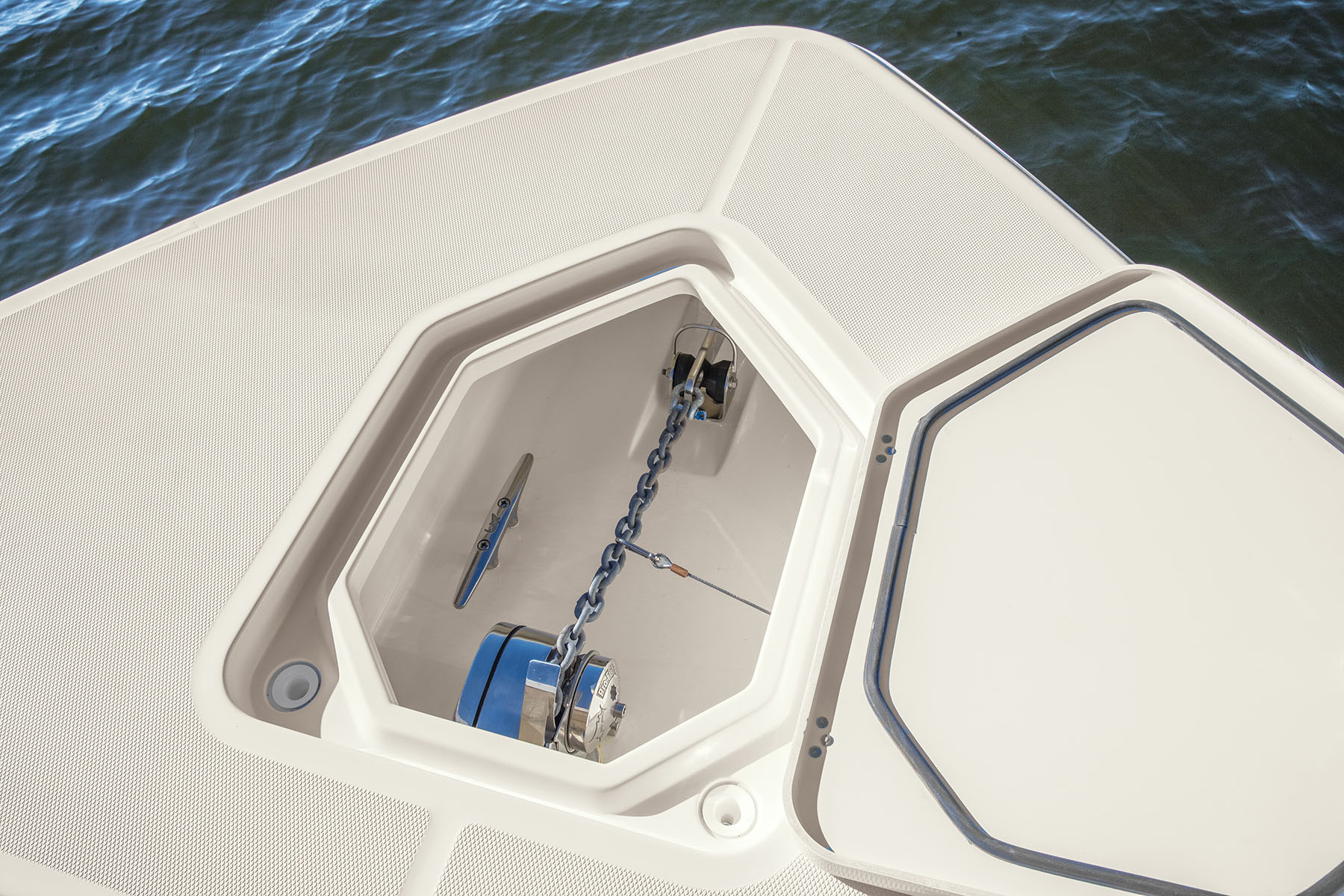

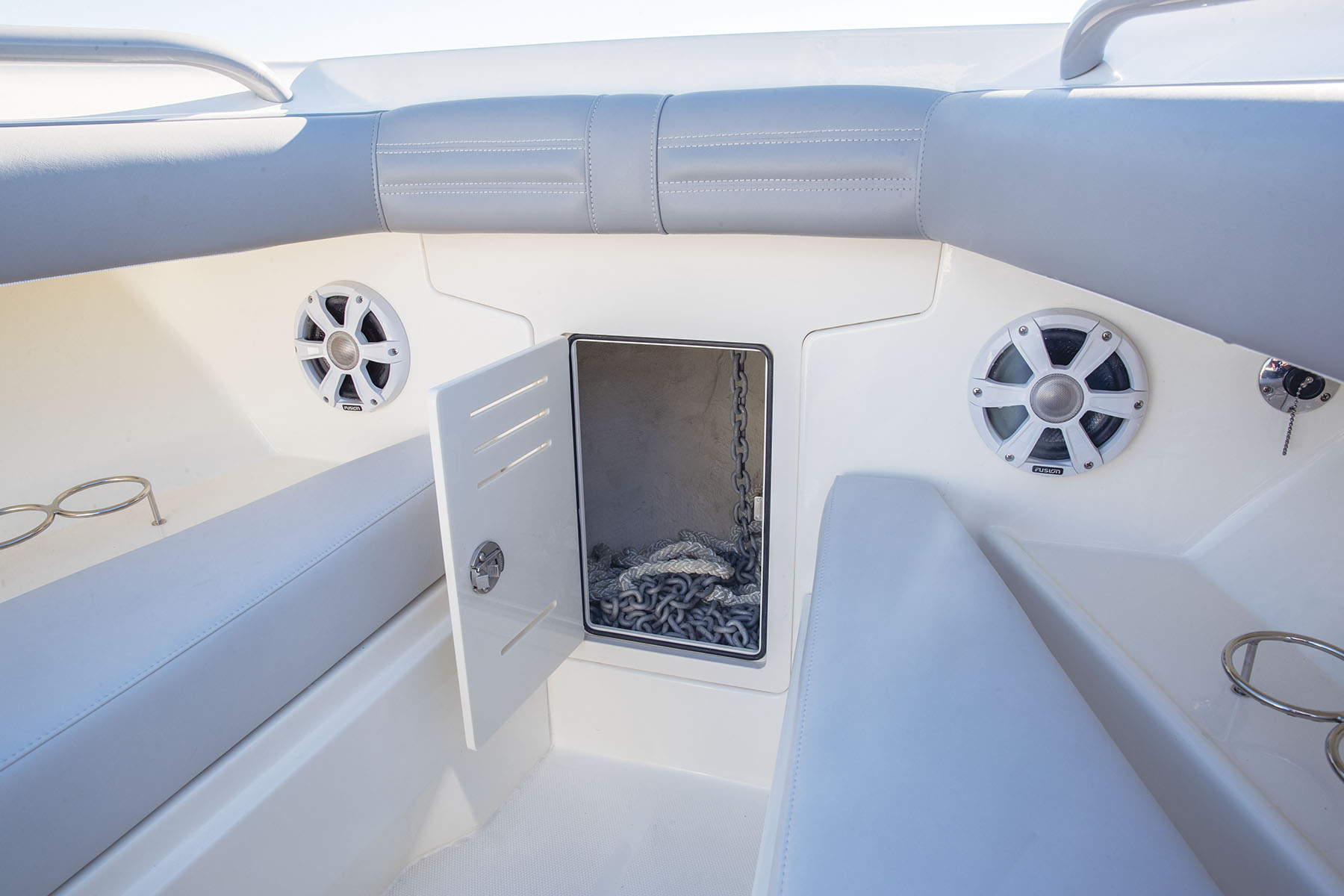

- Lewmar® below deck, vertical free-fall windlass w/rode stowage locker
- 2-tone high-density marine-grade vinyl upholstery w/stain-resistant coating & composite substrates on seats
- 824-qt. (779.8 L) bow center in-deck storage compartment w/drain
- 3-across powered helm seating w/folding arm rests & flip-up bolsters
- Self-bailing cockpit w/gutters, oversized drains & transom valves

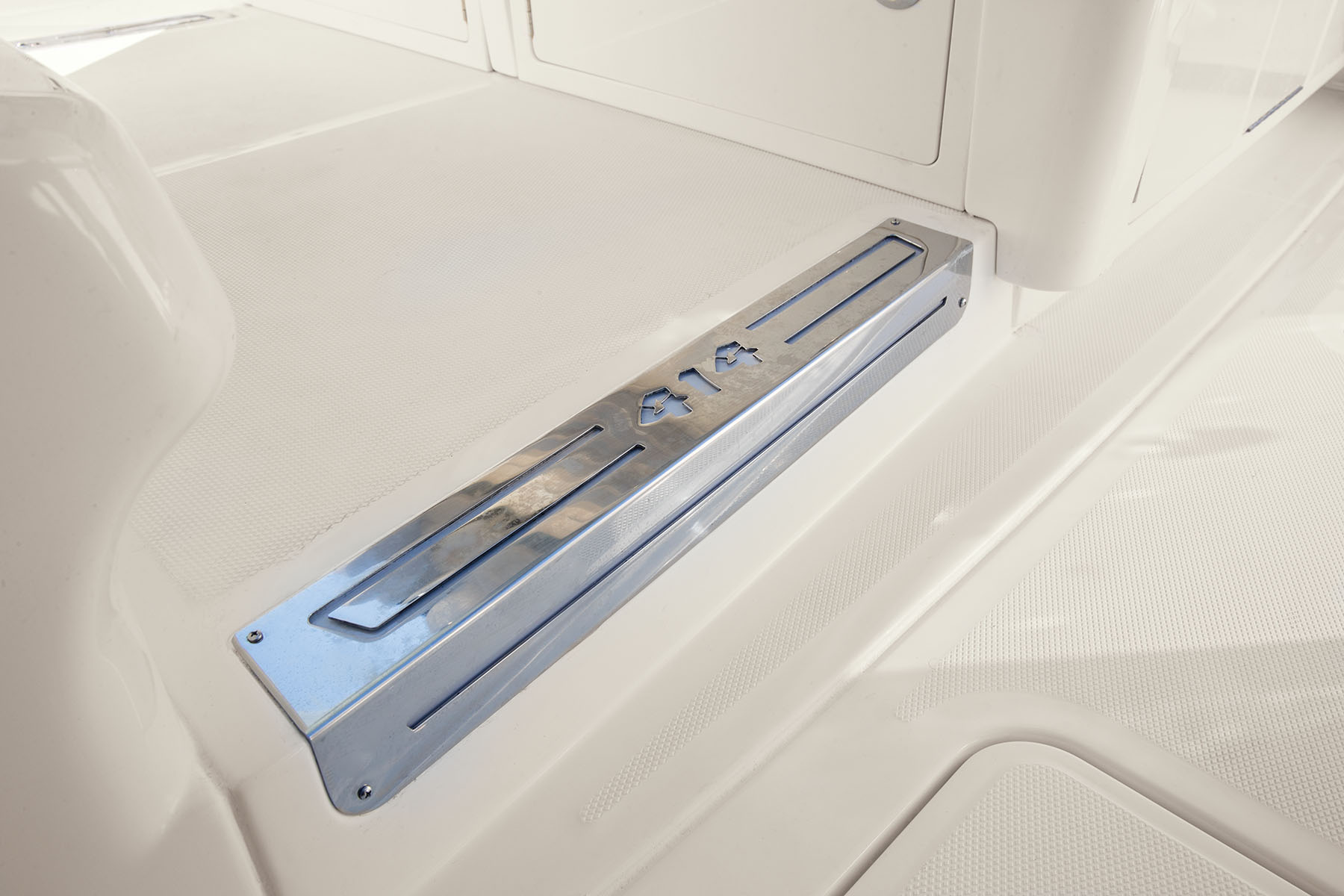

- 4" (10.16 cm) elevated helm platform w/threshold lights
- Port & starboard stainless steel, under-gunnel rod hangers w/reel protectors for 6 rods up to 9' (2.74 m) long

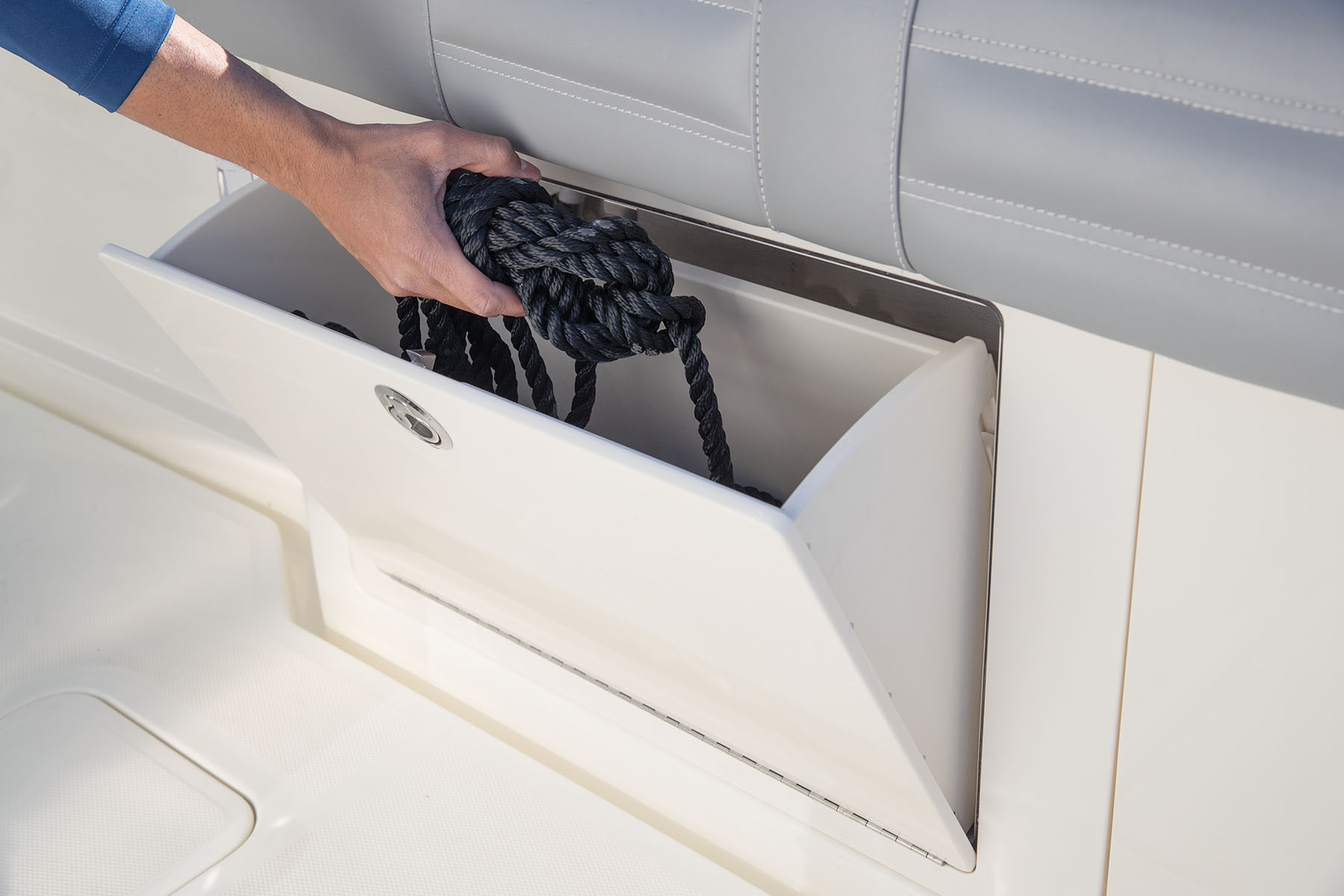

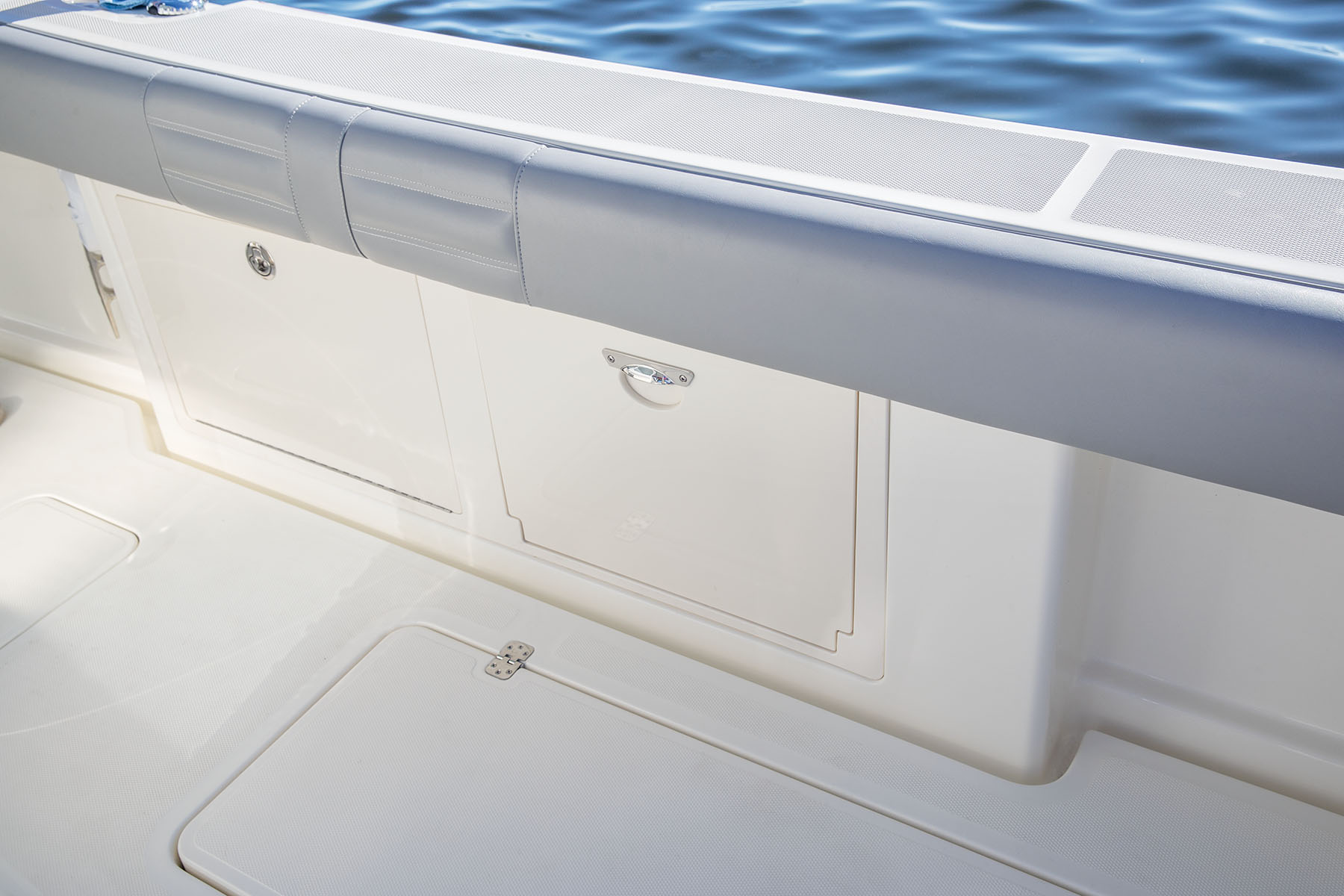

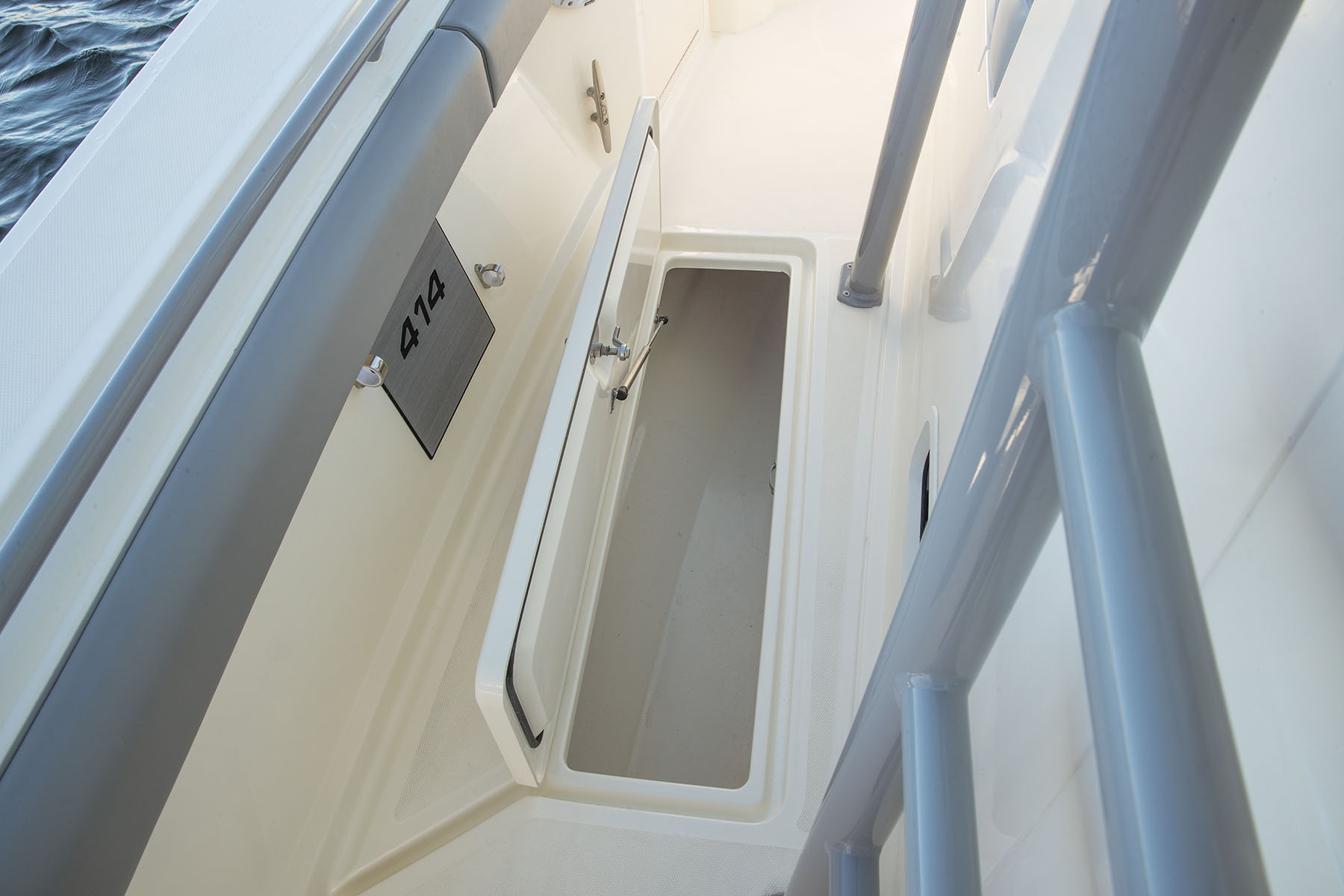

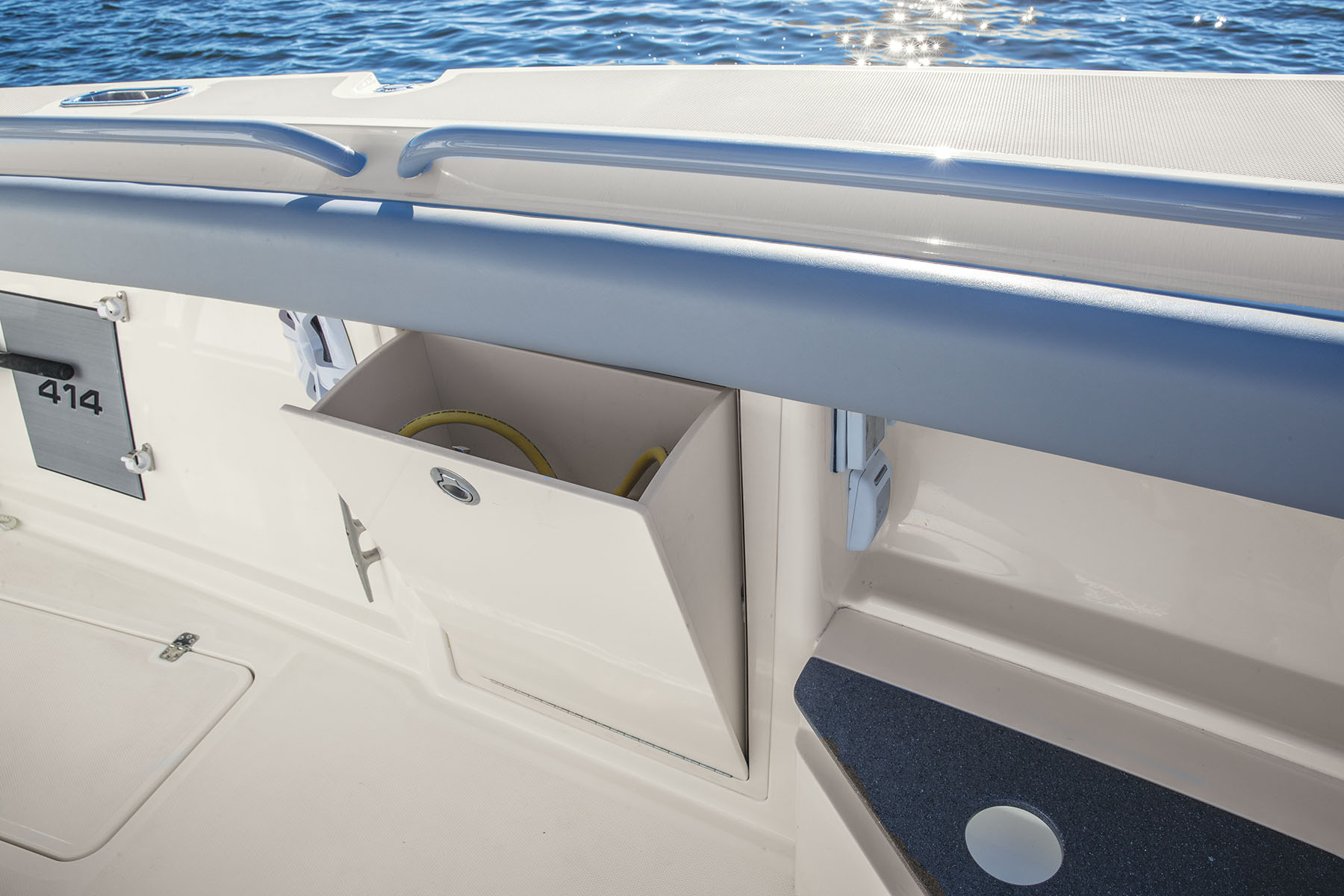

- 2 port & 2 starboard midship tilt-out, lockable storage

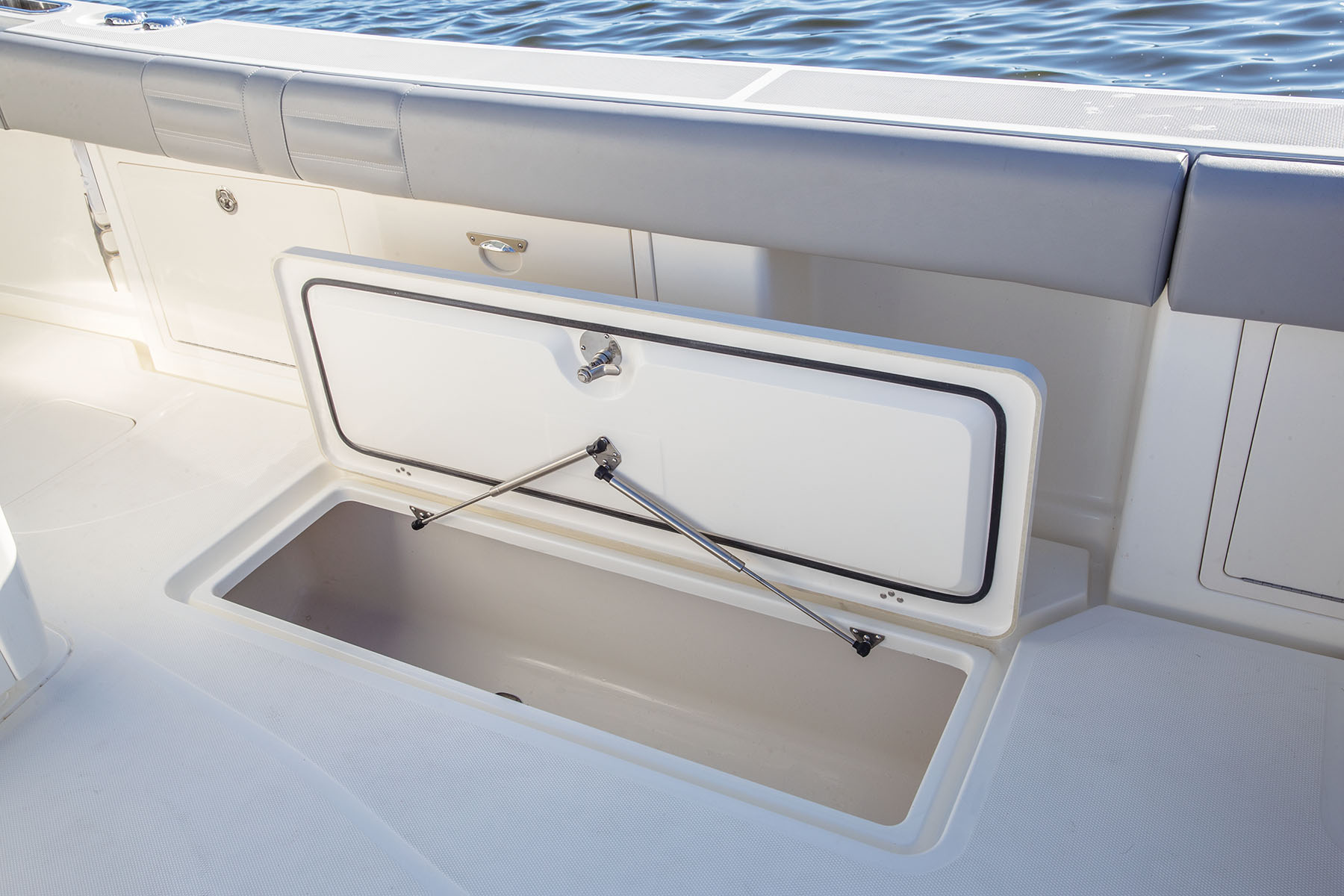

- 455-qt. (430.59 L) port & starboard midship in-deck storage compartments
- Tuna/dive/boarding door w/hinged gate
- 511-qt. (483.59 L) insulated aft port & starboard in-deck fishboxes w/Gulper macerators & overboard discharge

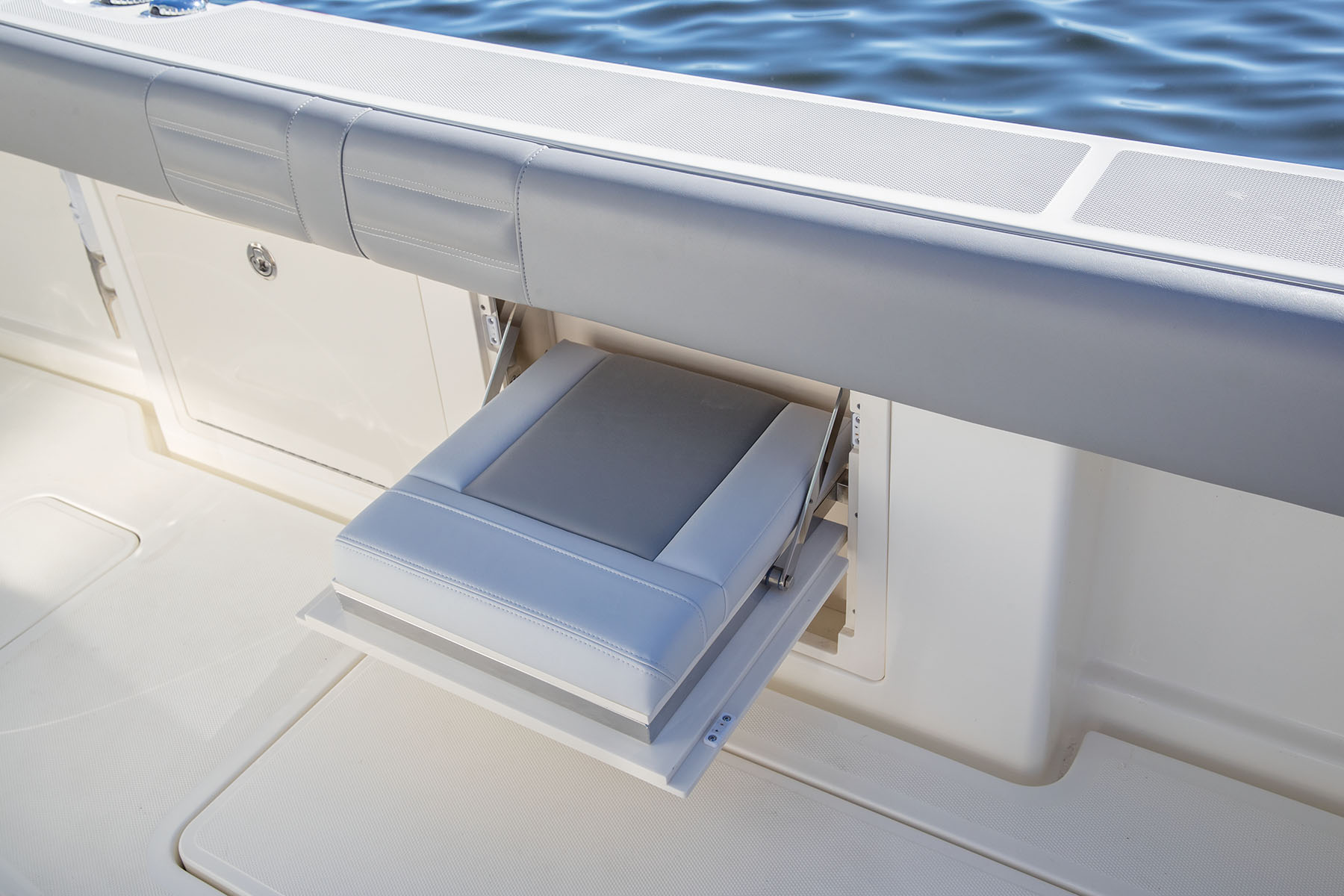

- 21"-wide (53.34 cm) flush-folding, in-gunnel aft port & starboard bench seats

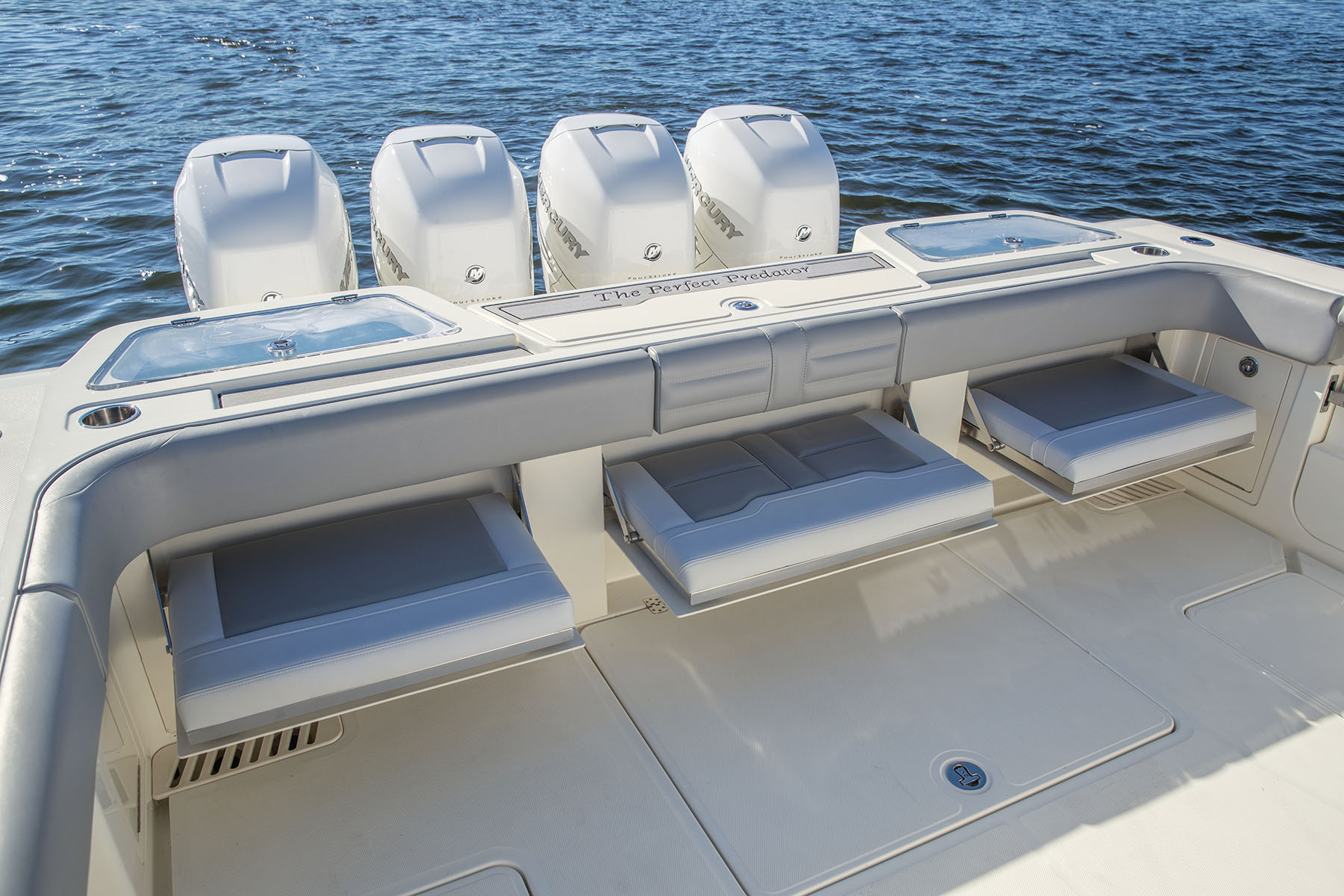

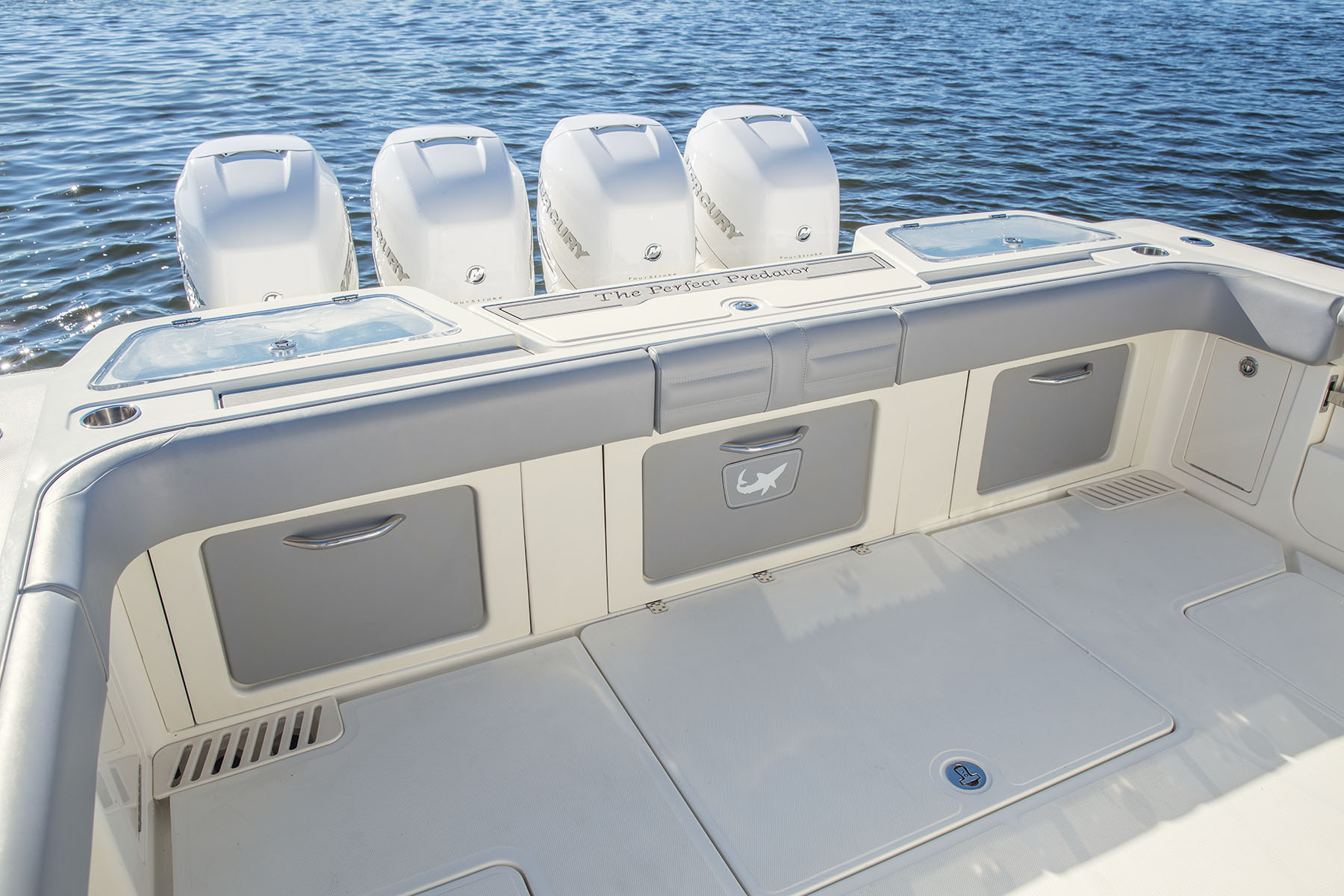

- 32"-wide (81.28 cm) flush-folding, cushioned port & starboard corner transom seats
- 36"-wide (91.44 cm) flush-folding, cushioned center transom seat

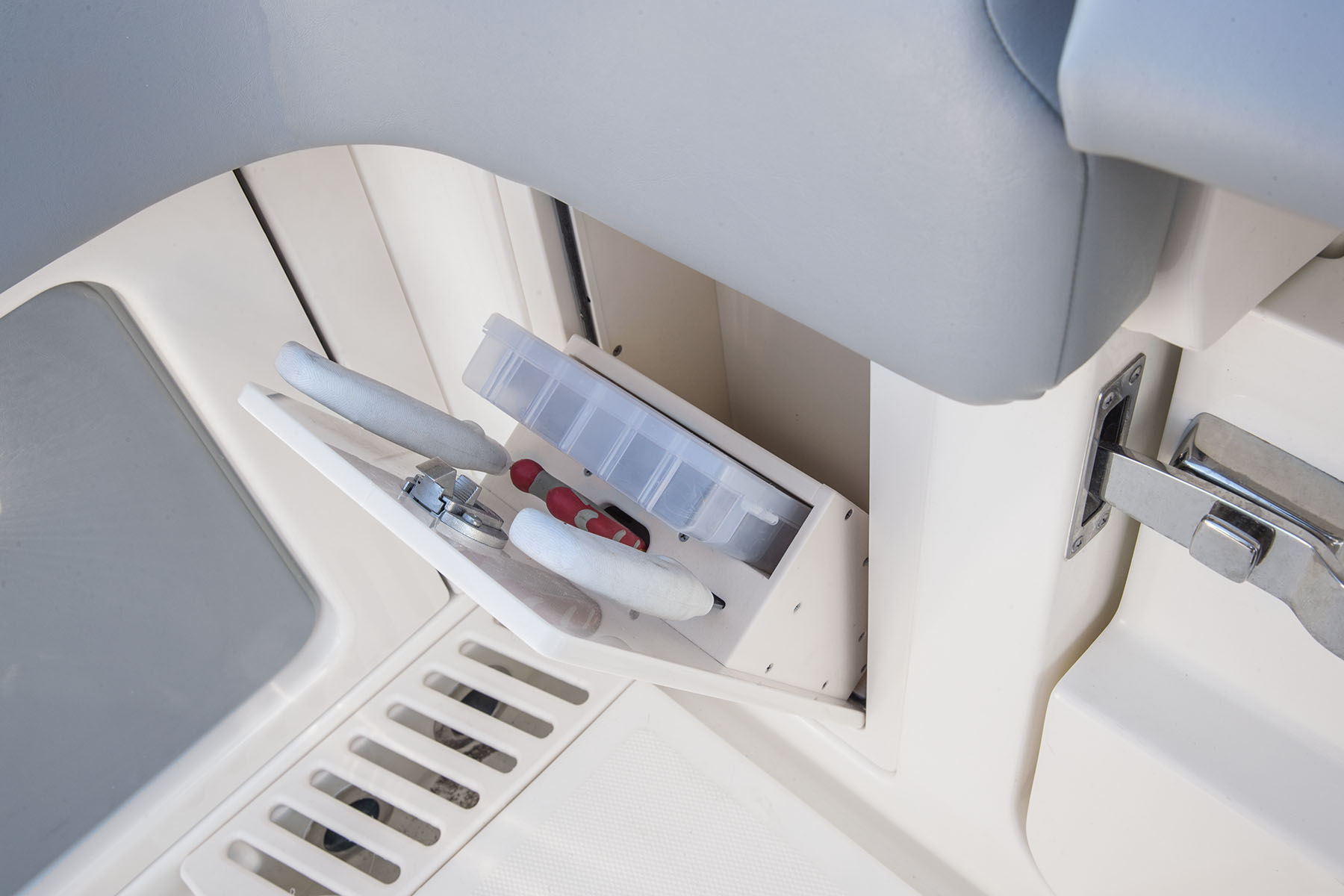

- Aft port tilt-out, lockable storage w/Boga-Grip holder, needle nose pliers holder, 12" (30.48 cm) filet knife holder & tackle tray holder
- Aft starboard tilt-out, lockable storage w/leader holder & pliers holder

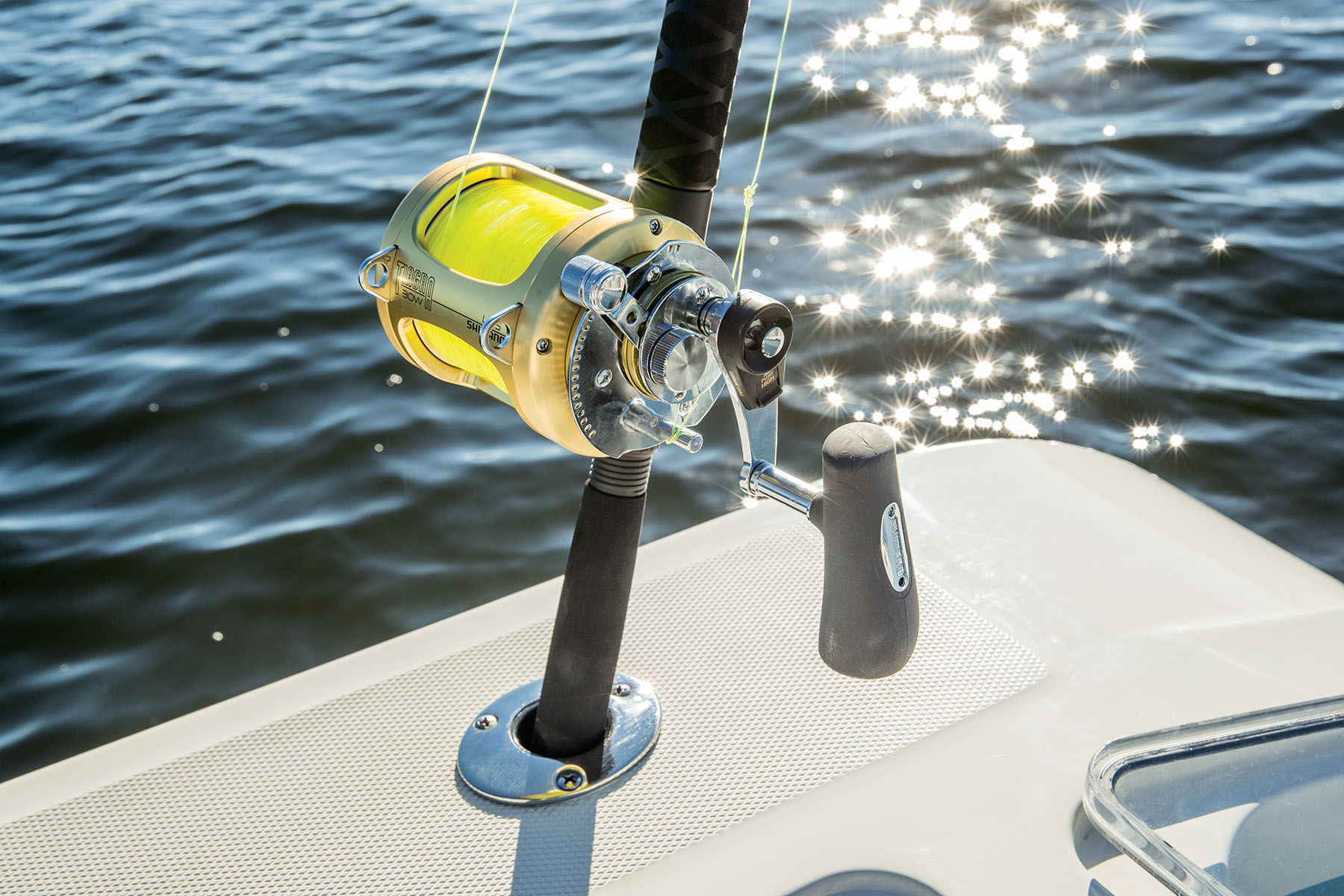

- 1 port & 1 starboard gunnel-mounted aft trolling rod holders

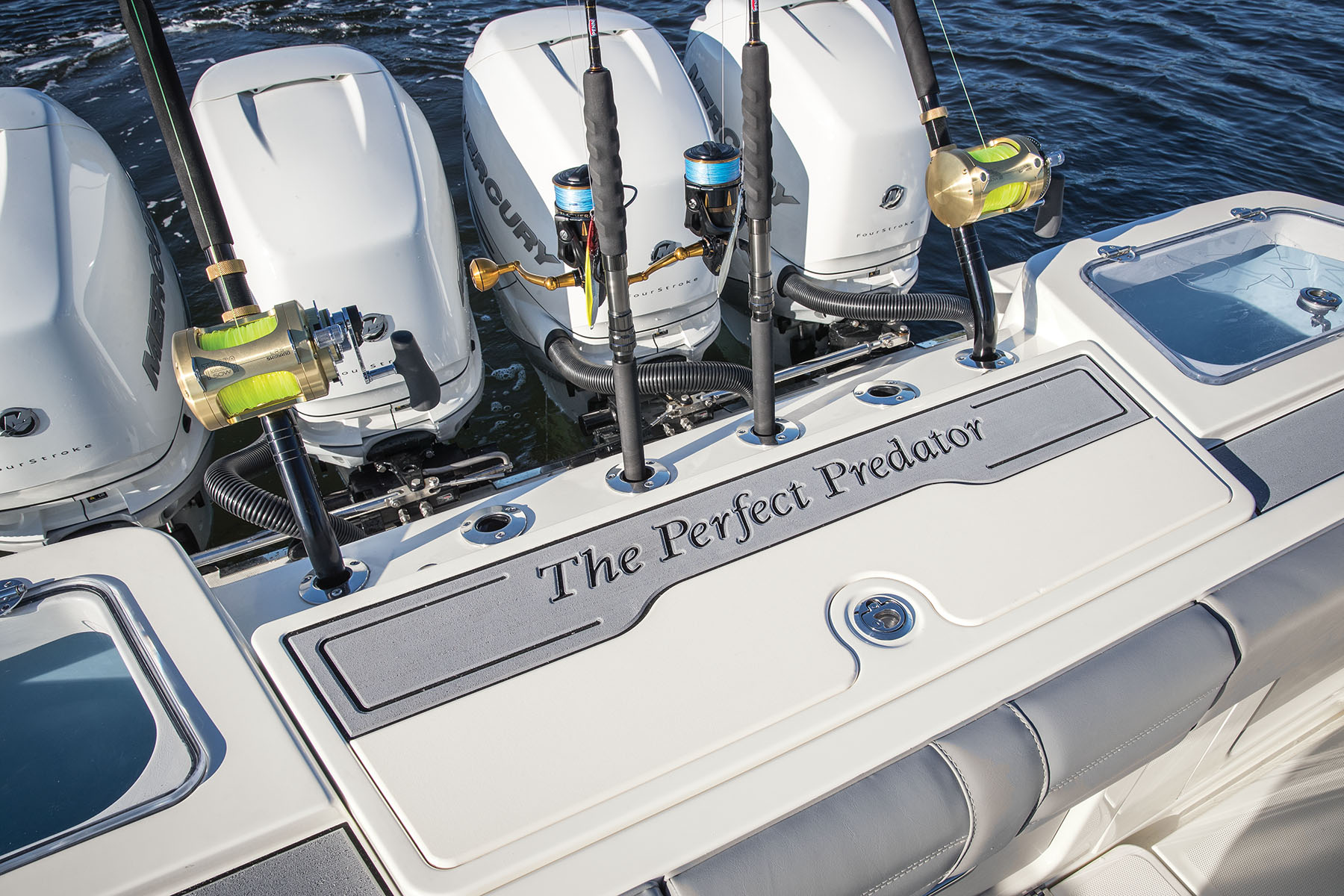

- 6 transom-mounted rod holders

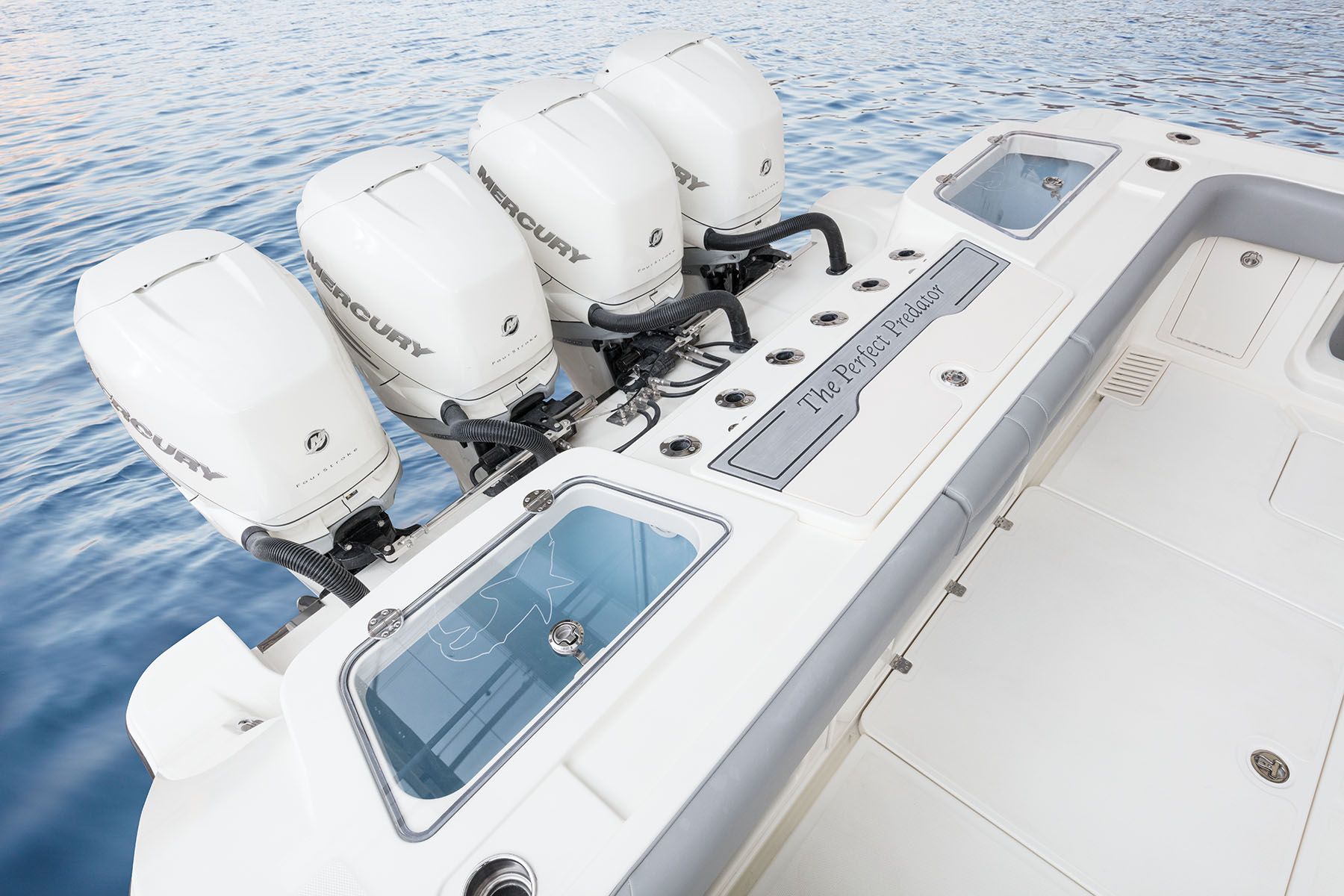

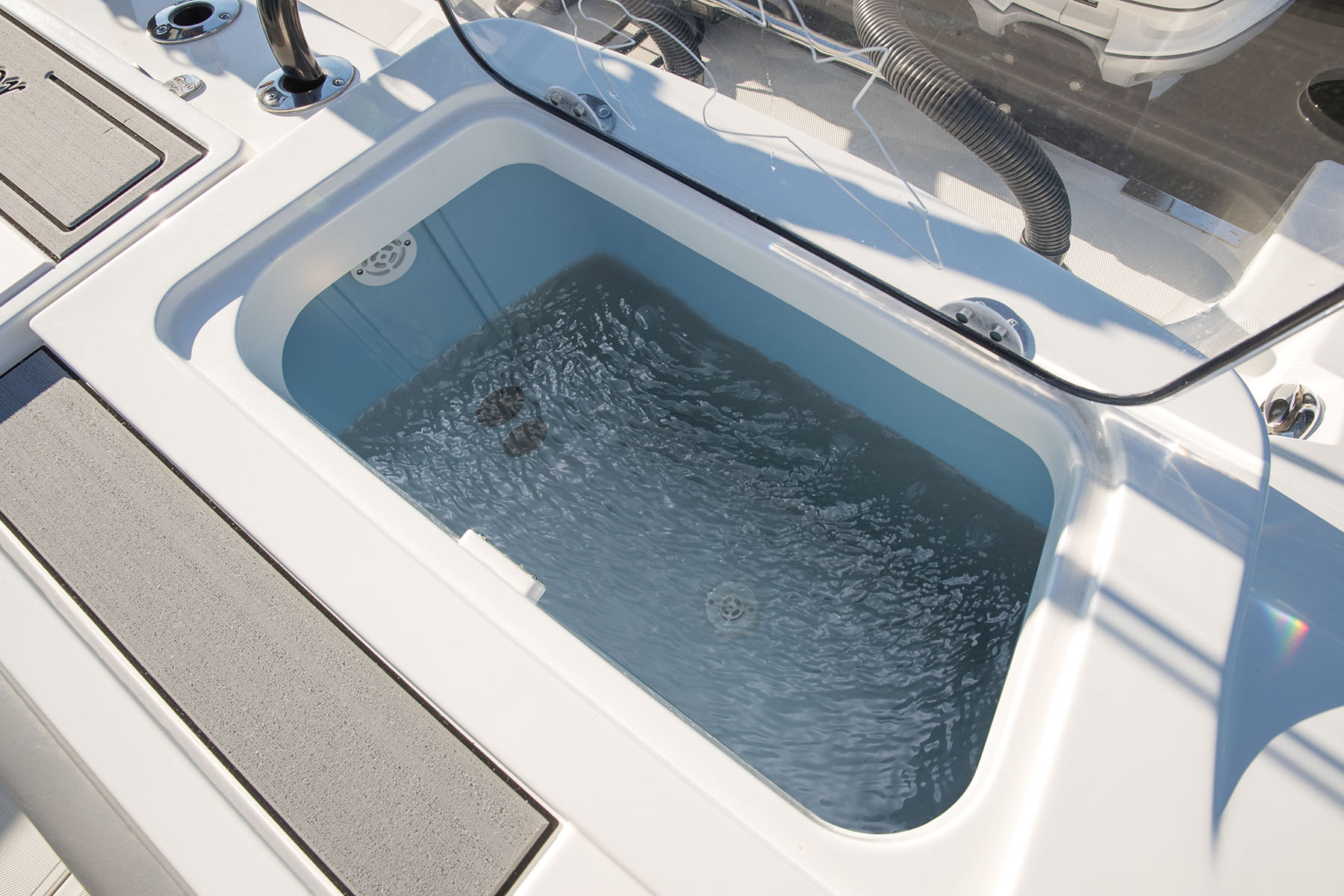

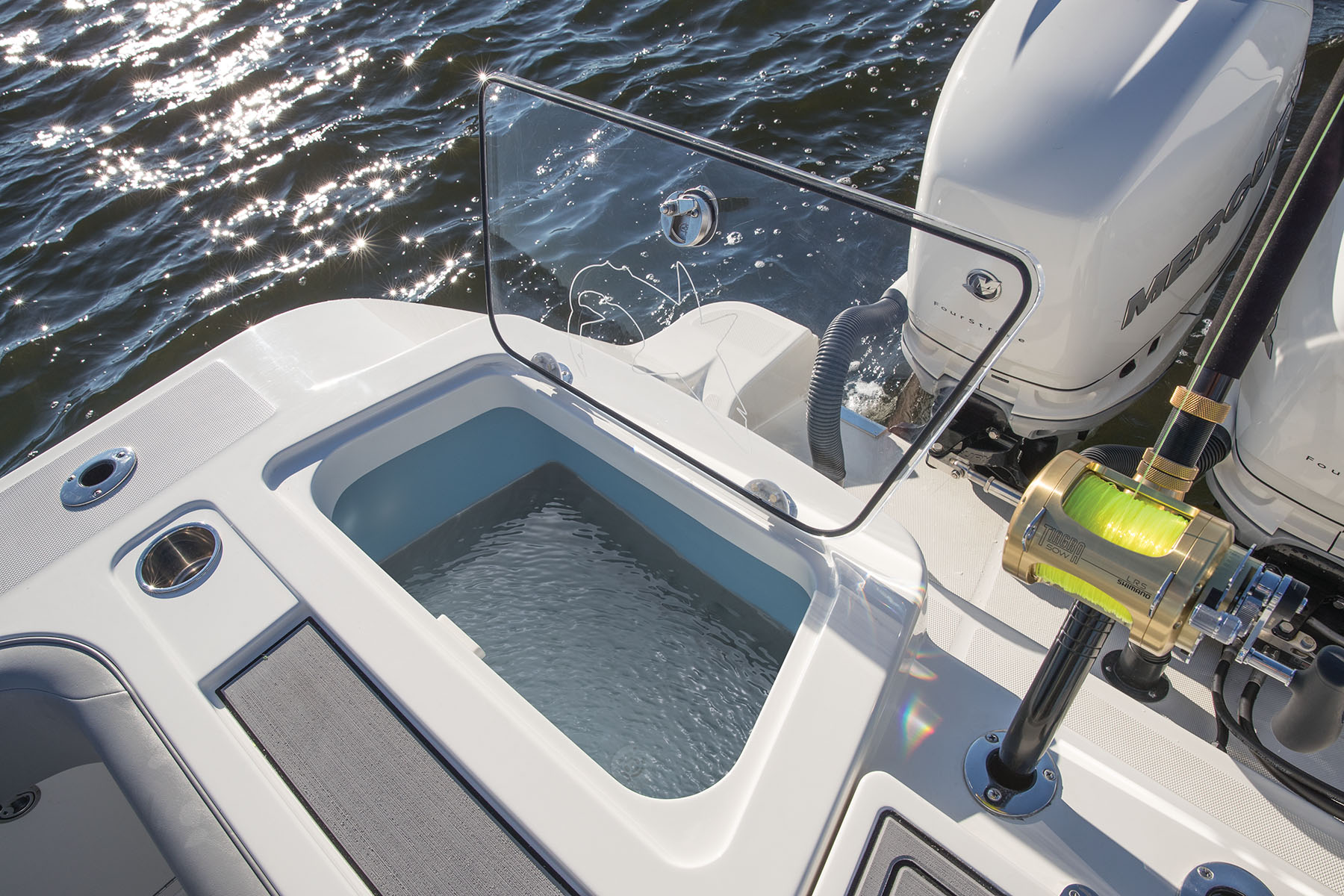

- 2 aft 50-gal. (189.27 L) rounded livewells w/brass seacocks, angled fills & friction-hinged acrylic lids
- Aft center cutting board

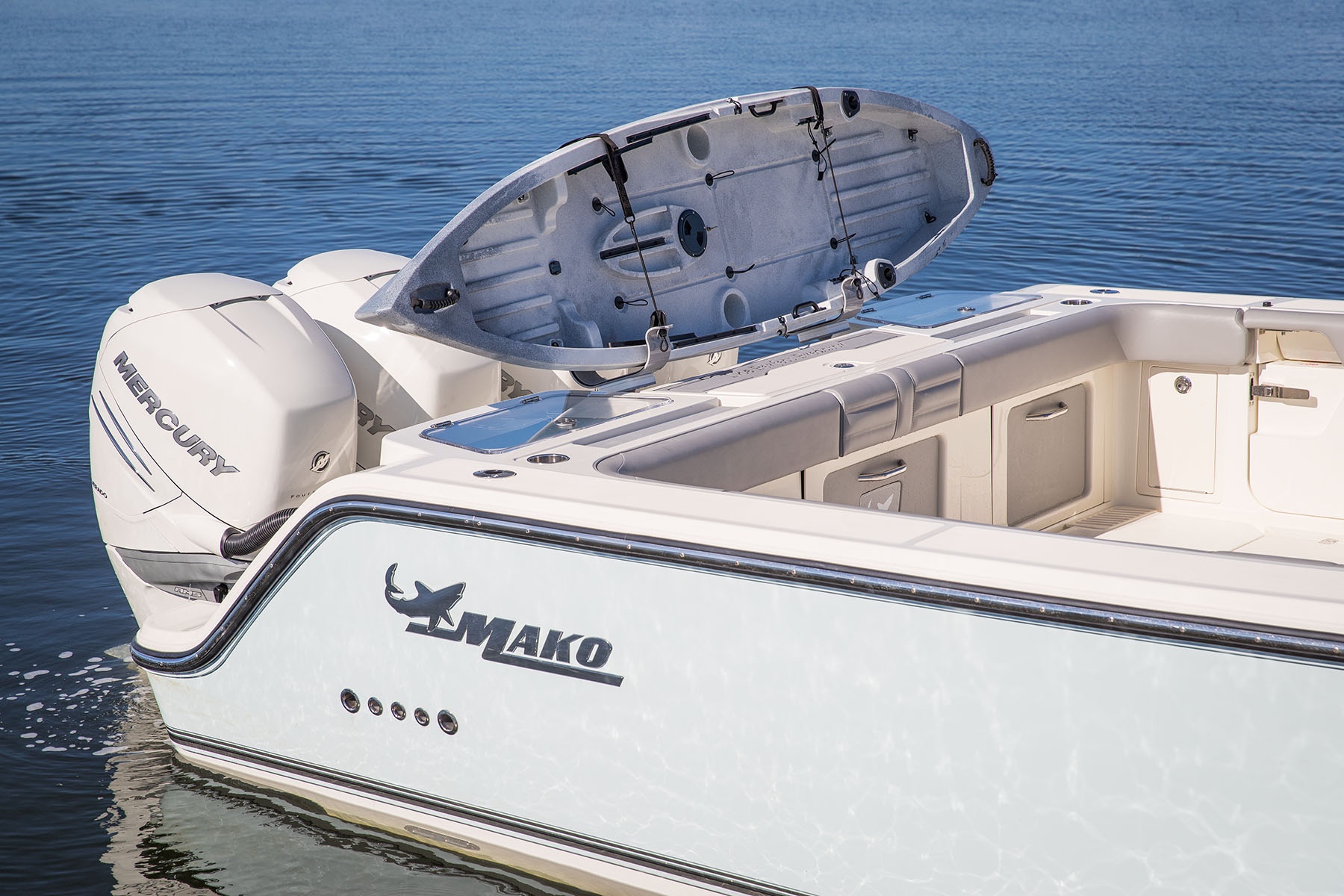

- In-transom, natural bait prep/storage box
- Molded non-skid surfaces throughout

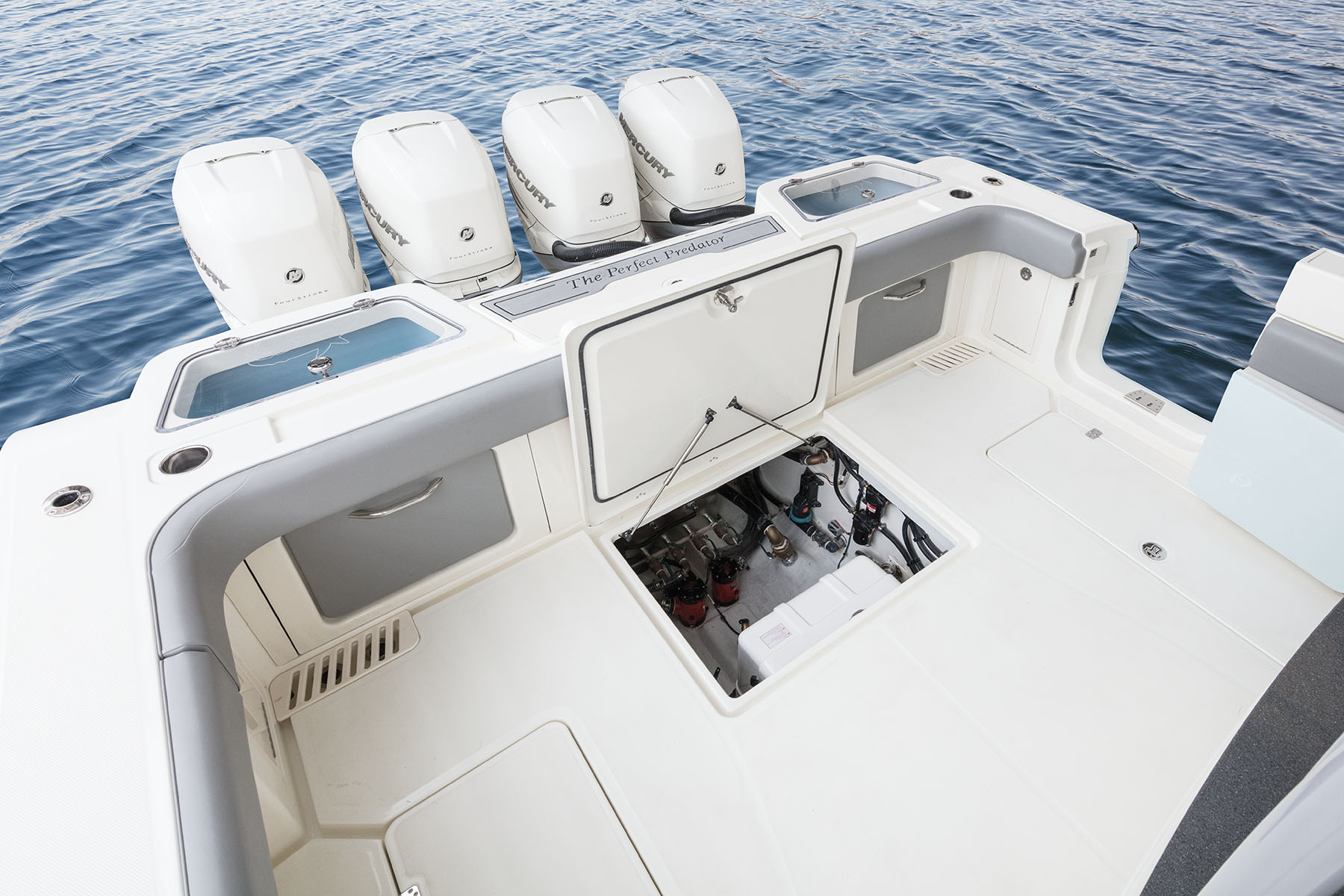

- Large lazarette/bilge access hatch
- Full-length, high density, drained 360° coaming bolsters

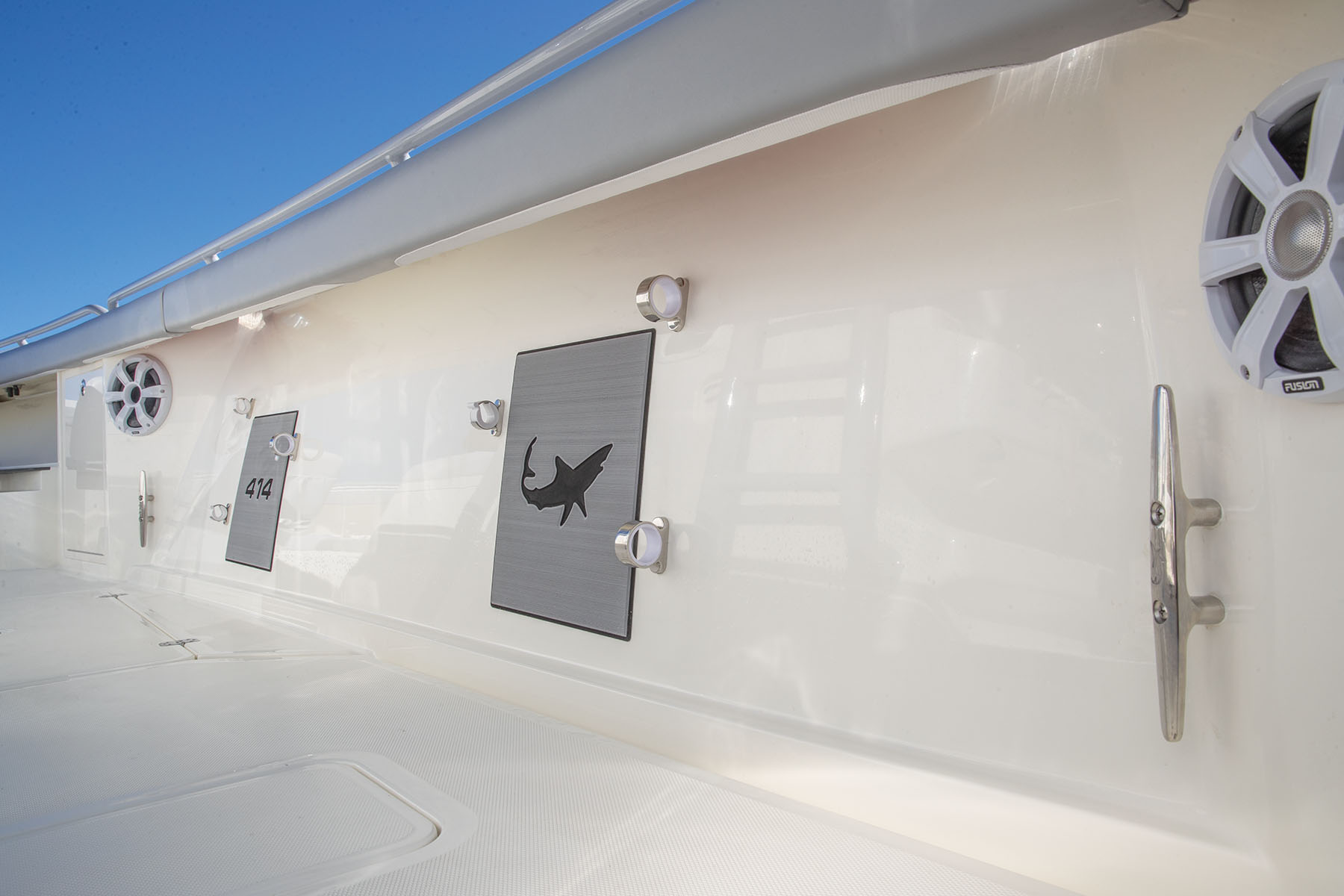

- Four 8" (20.32 cm) stainless steel, anti-rattle pop-up cleats

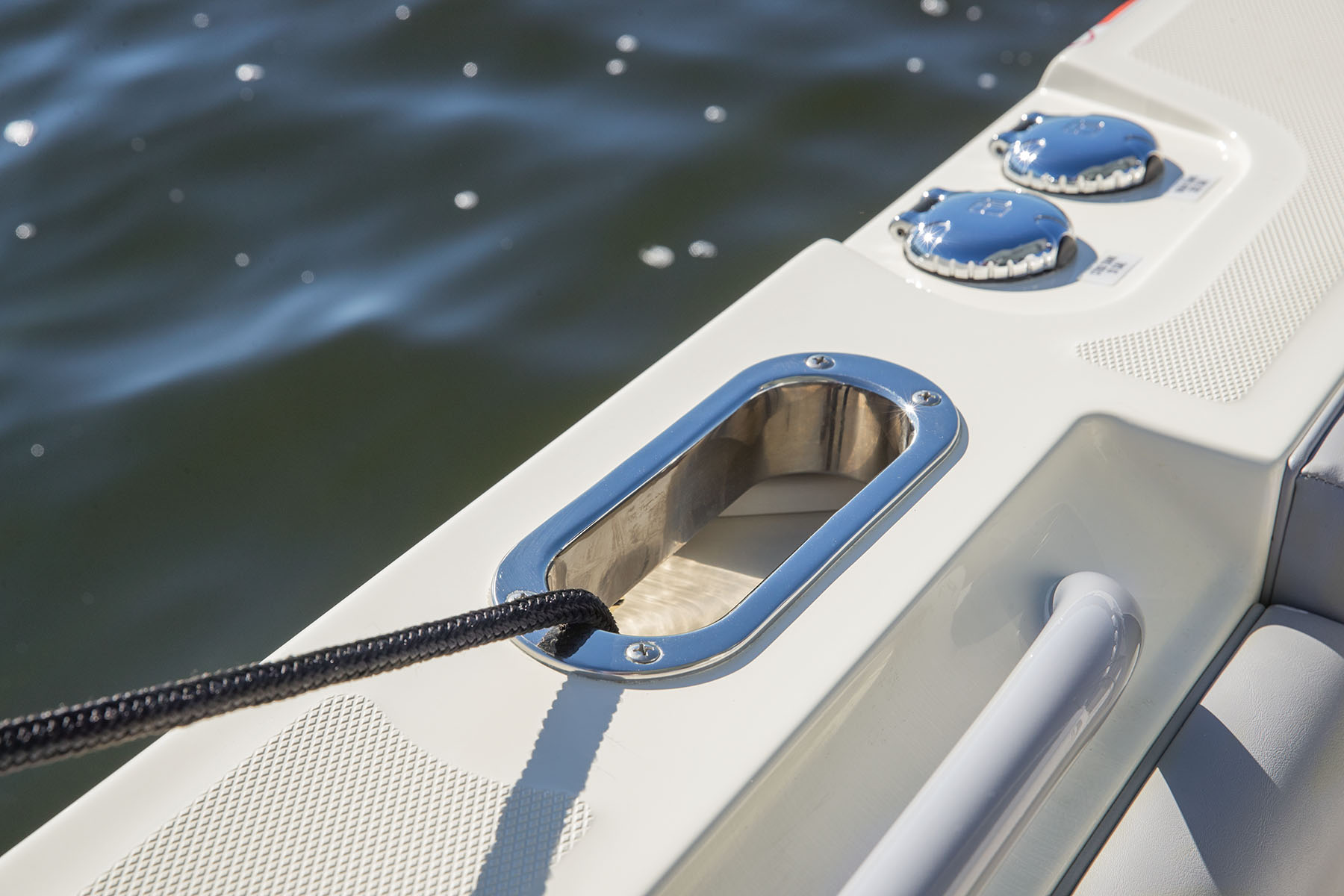

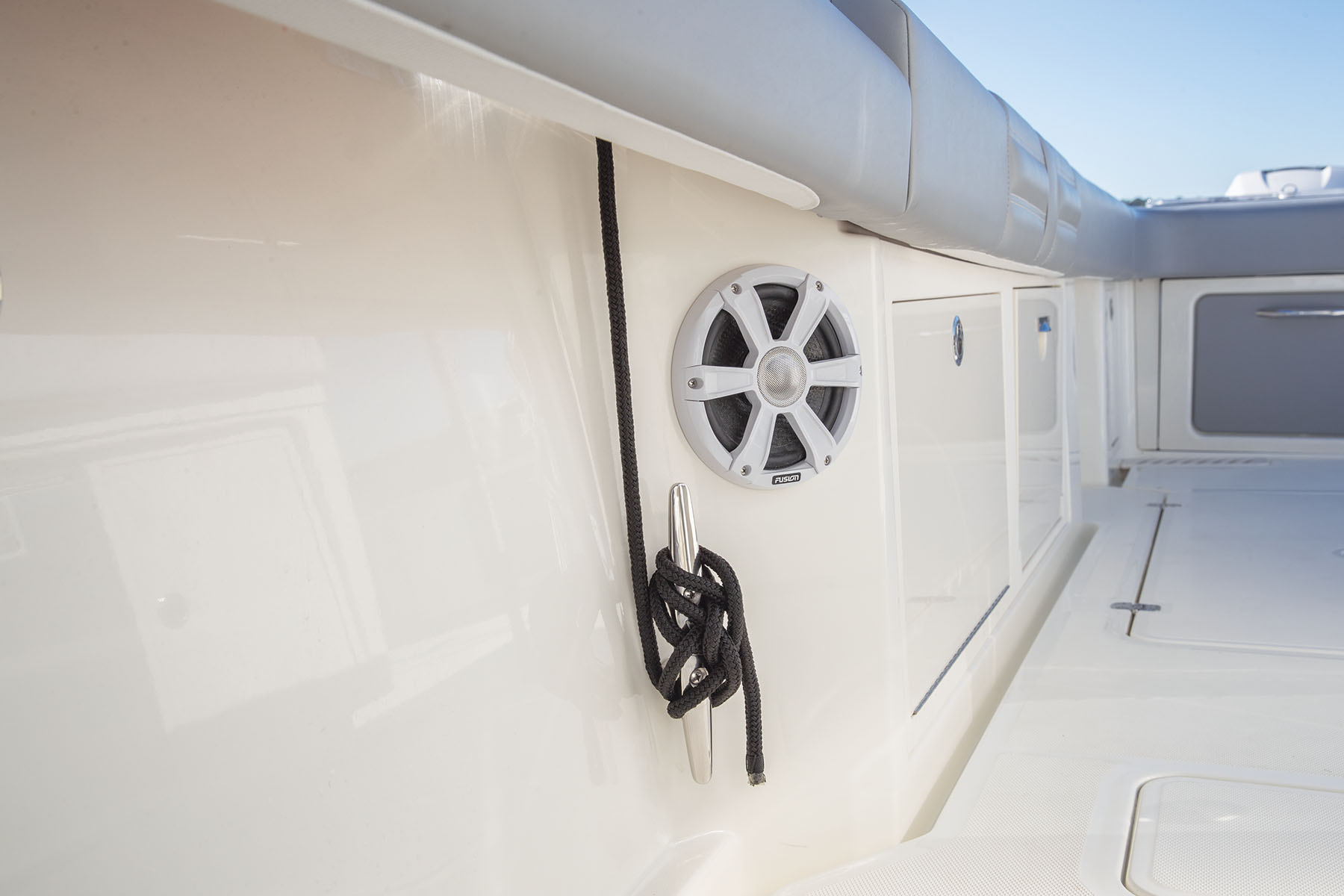

- Four 10" (25.4 cm) stainless steel, vertical cleats below deck w/access via hawse pipes
- 4 bow deck drink holders
- 2 aft deck drink holders
Performance
- Legendary dry-riding MAKO® hull
- Aggressive deep V hull design
- Set-back transom delivers undisturbed water to the props
- Performance lifting strakes
- Recessed, custom, twin-piston activated trim tabs
- Factory-matched stainless steel propellers
Construction & Exterior
- Color: MAKO® Bone White gelcoat
- Ring deck design for more usable interior space
- 100% composite construction
- Coosa® Bluewater 100% composite transom core
- Heavy-duty, 5" (12.7 cm) fiberglass-encapsulated transom w/3" (7.62 cm) fiberglass-impregnated, high-density composite core
- Hull/deck joint chemically sealed & bonded 360° & mechanically fastened every 6" (15.24 cm) w/316 stainless steel fasteners
- 1-piece molded fiberglass stringer grid w/integrated transom knee supports & gelcoat finish
- Closed-cell foam-injected stringer grid for USCG-approved flotation
- Vinyl ester barrier coat
- Heavy-duty rub rail w/stainless steel insert
- Premium marine-grade stainless steel hardware & fasteners for corrosion resistance
- Heavy duty extra thick, closed-molded hatch covers w/finished undersides & integrated gaskets
- Aluminum backing plates for cleats & chocks

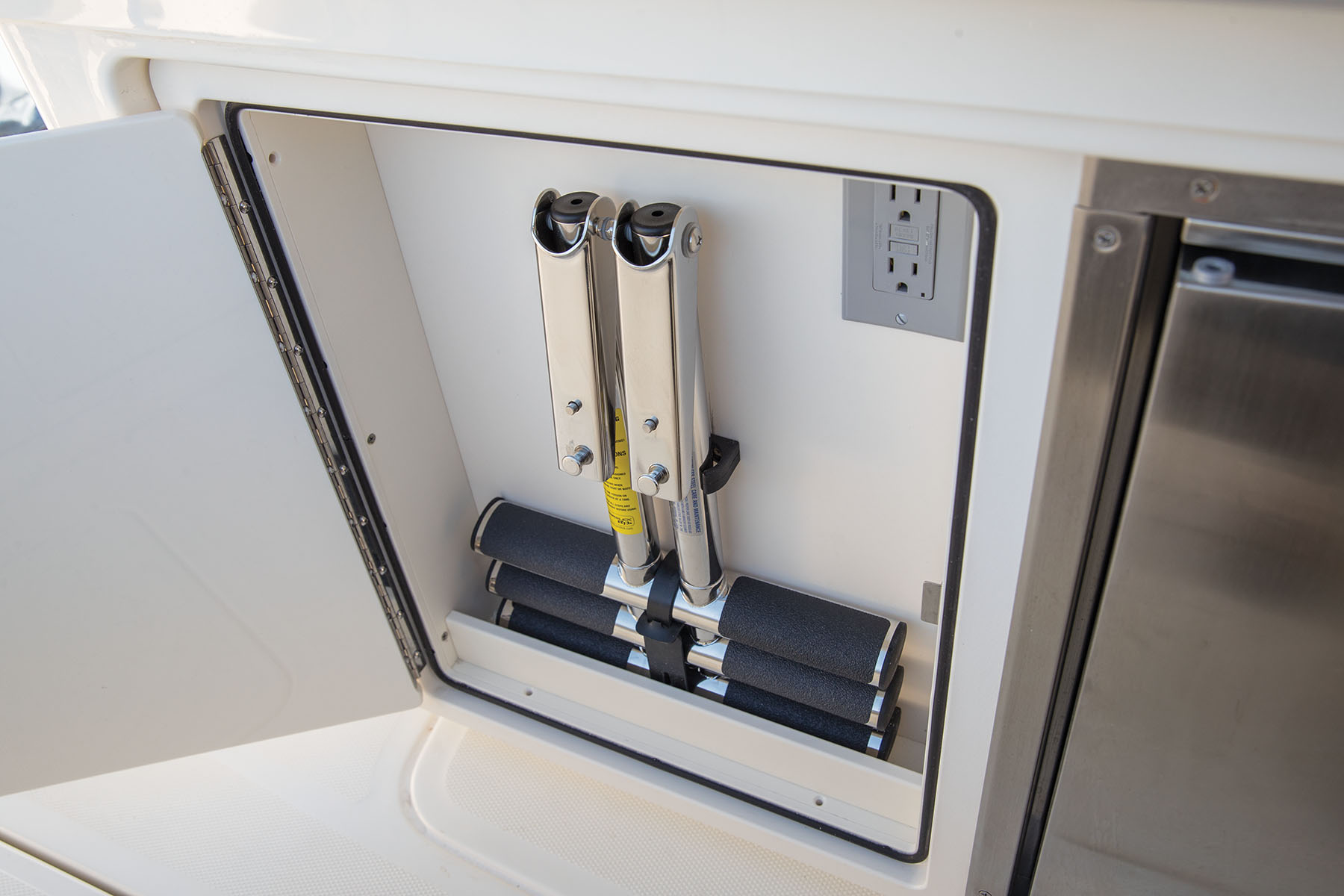

- 3-step, stowable dive ladder
- Recessed, pull-out, telescoping boarding ladder
Electrical, Mechanical & Plumbing Systems
- Forward 1,000 GPH (3,785.41 LPH) bilge pump w/auto float
- Two 4,000 GPH (15,141.65 LPH) aft bilge pumps w/auto float
- Two 2,000 GPH (7,570.82 LPH) submerged auxiliary livewell pumps
- Two 2,000 GPH (7,570.82 LPH) submerged livewell pumps
- Aluminum main fuel tank w/4 baffles

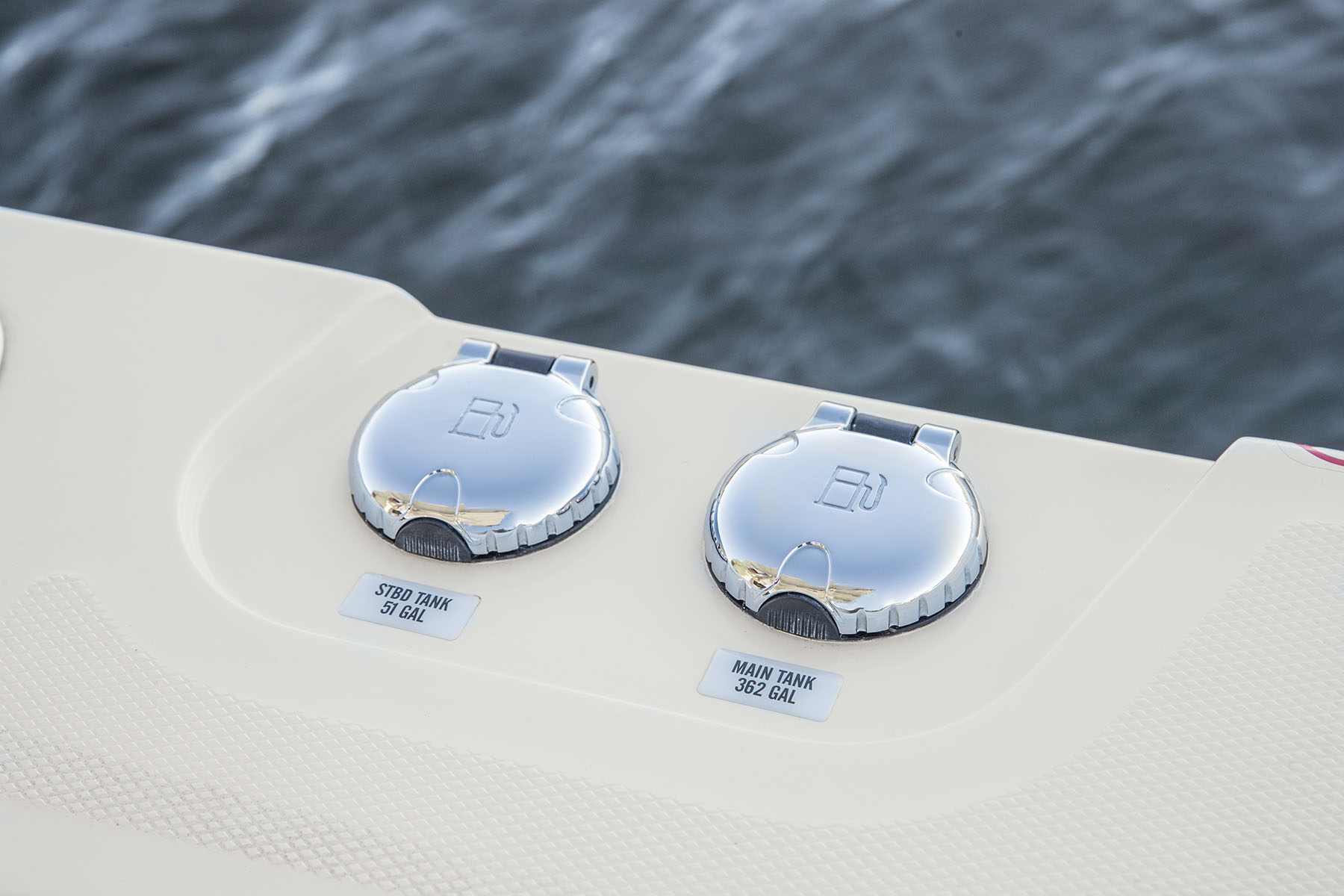

- 464-gal. (1,756.43 L) main fuel tank
- Two 51-gal. (193.06 L) auxiliary saddle fuel tanks w/transfer pumps
- CZone®-controlled fuel transfer pumps w/manual bypass valves

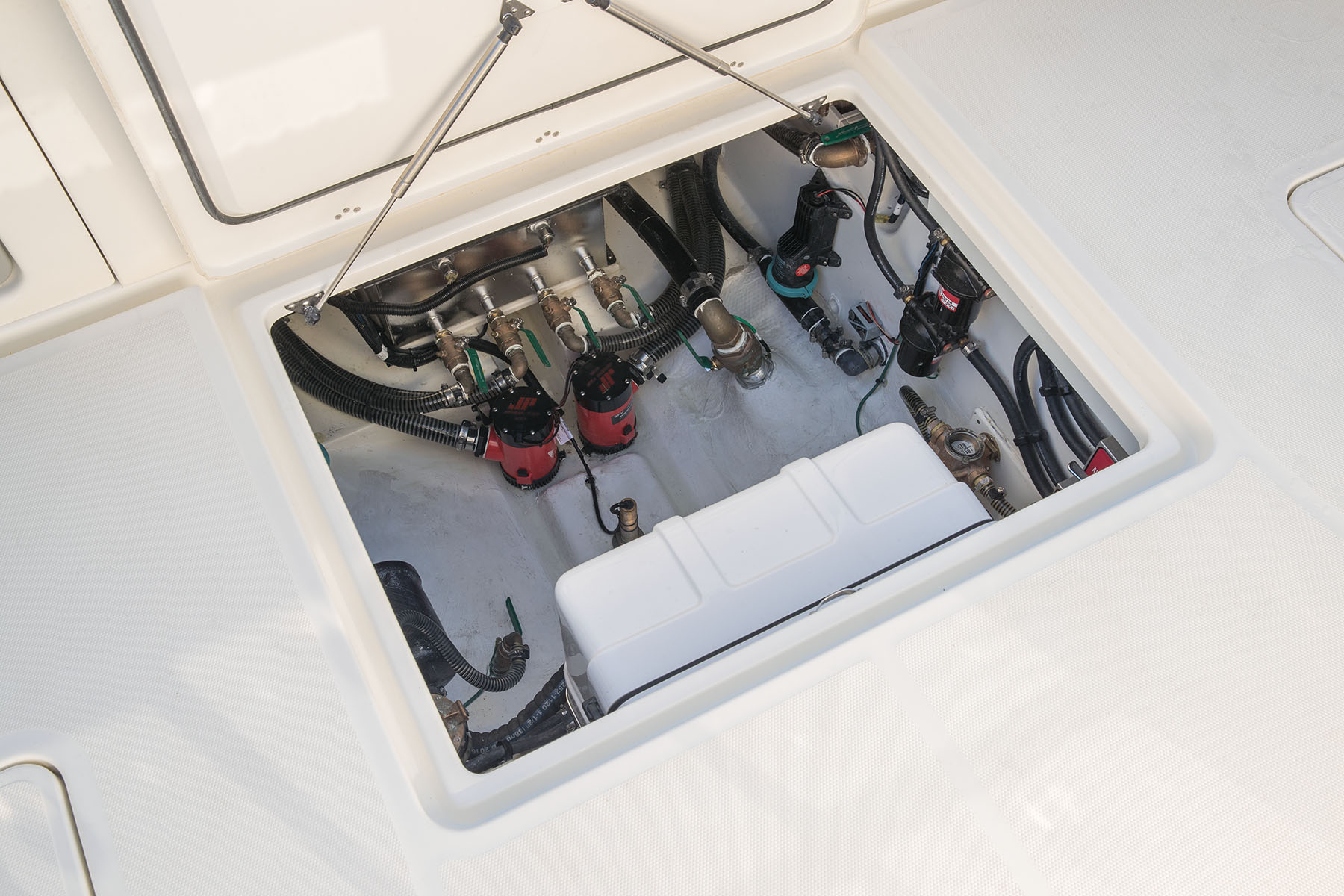

- Electroplated Sea Chest keeps 4 pumps submerged for cooler running & longer life
- Fore & aft high-water bilge alarms
- Pressurized raw water washdown pump
- High-speed raw water intake molded into hull bottom
- Pressurized freshwater pump
- 50-gal. (189.27 L) CZone®-monitored freshwater tank
- 1 Gulper macerator pump per cockpit floor fishbox
- Forward sump box w/800 GPH (3,028.33 LPH) gray water pump w/auto float

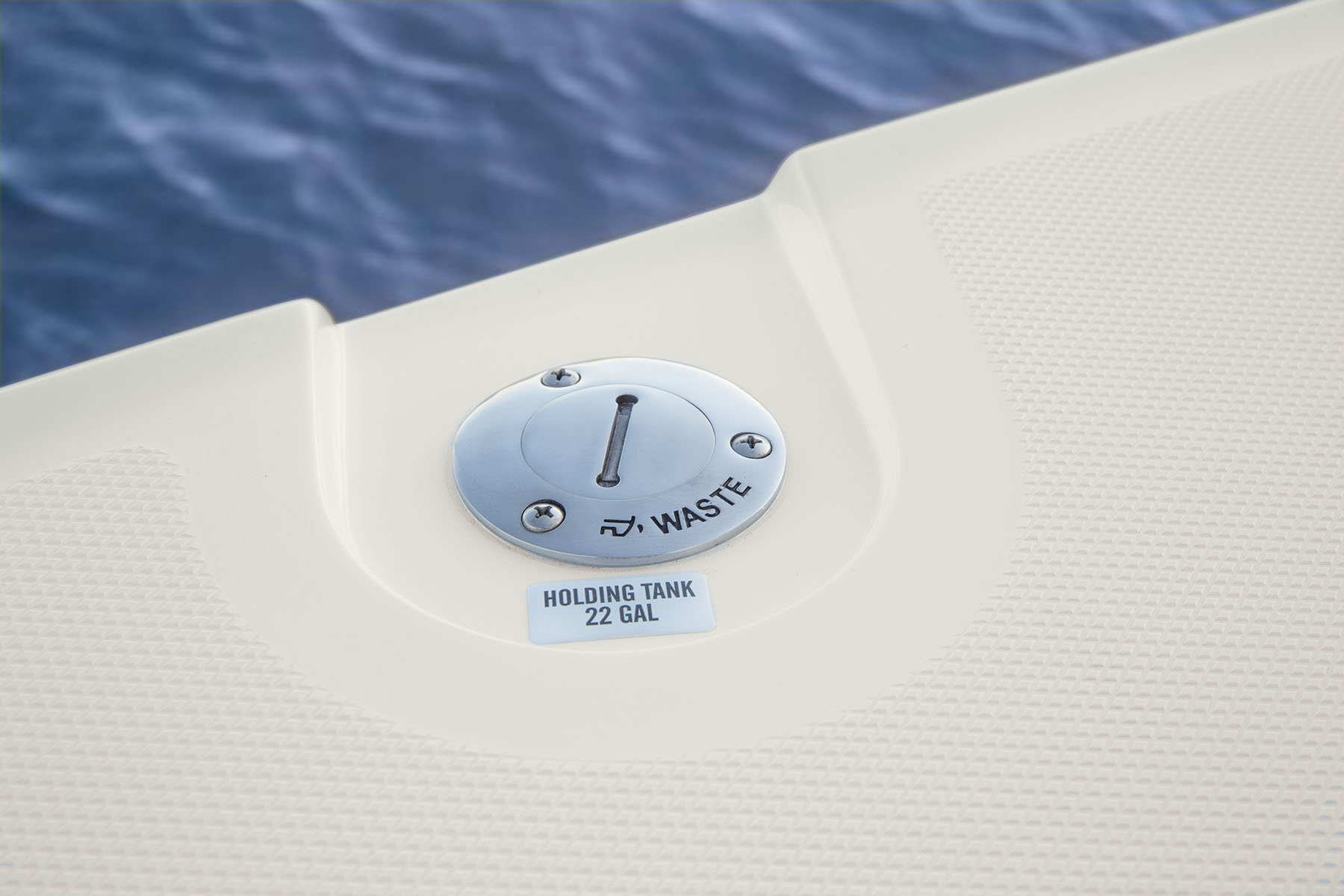

- 22-gal. (83.28 L) CZone®-monitored, coated waste tank
- USCG-compliant navigation lights
- Fore-, mid- & aft-facing White/Blue LED spreader lights in the hardtop
- Blue, diffused LED lighting under gunnels
- Automatic, dimmable threshold lights
- 2 Marinco® Charge Master battery chargers—constantly on w/power supply (shore or Genset power)
- 240V, 60-amp shore power
- 1 cranking battery per outboard
- 2 house batteries
- Thru-hull bonding harness for below-water corrosion resistance
- Brass seacocks on all below-water thru-hull fittings
- Labeled, tinned-copper wiring for easy maintenance & protection in a marine environment
- Wiring access hatches, battery switch panel & battery access inside head
Optional Trailer

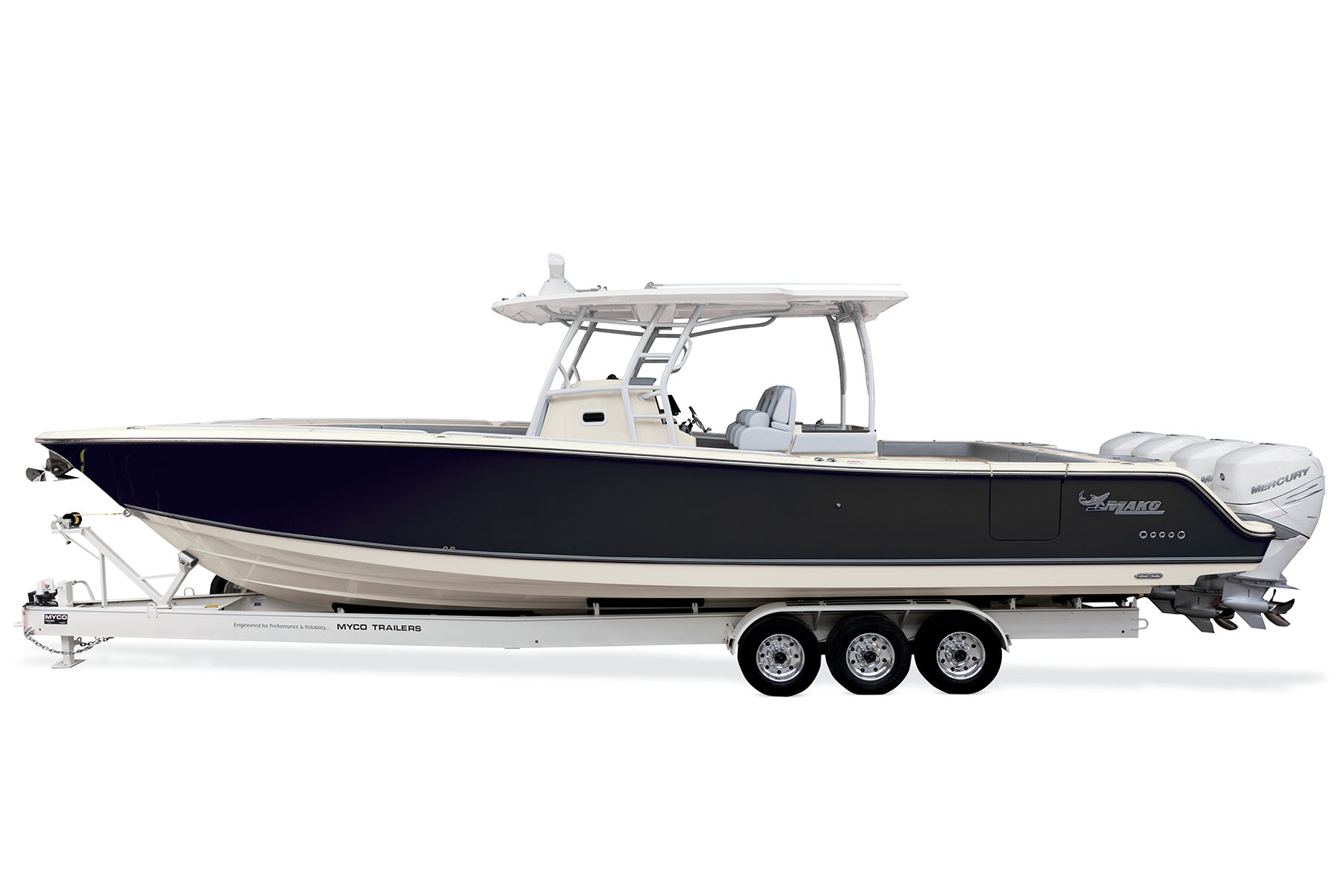

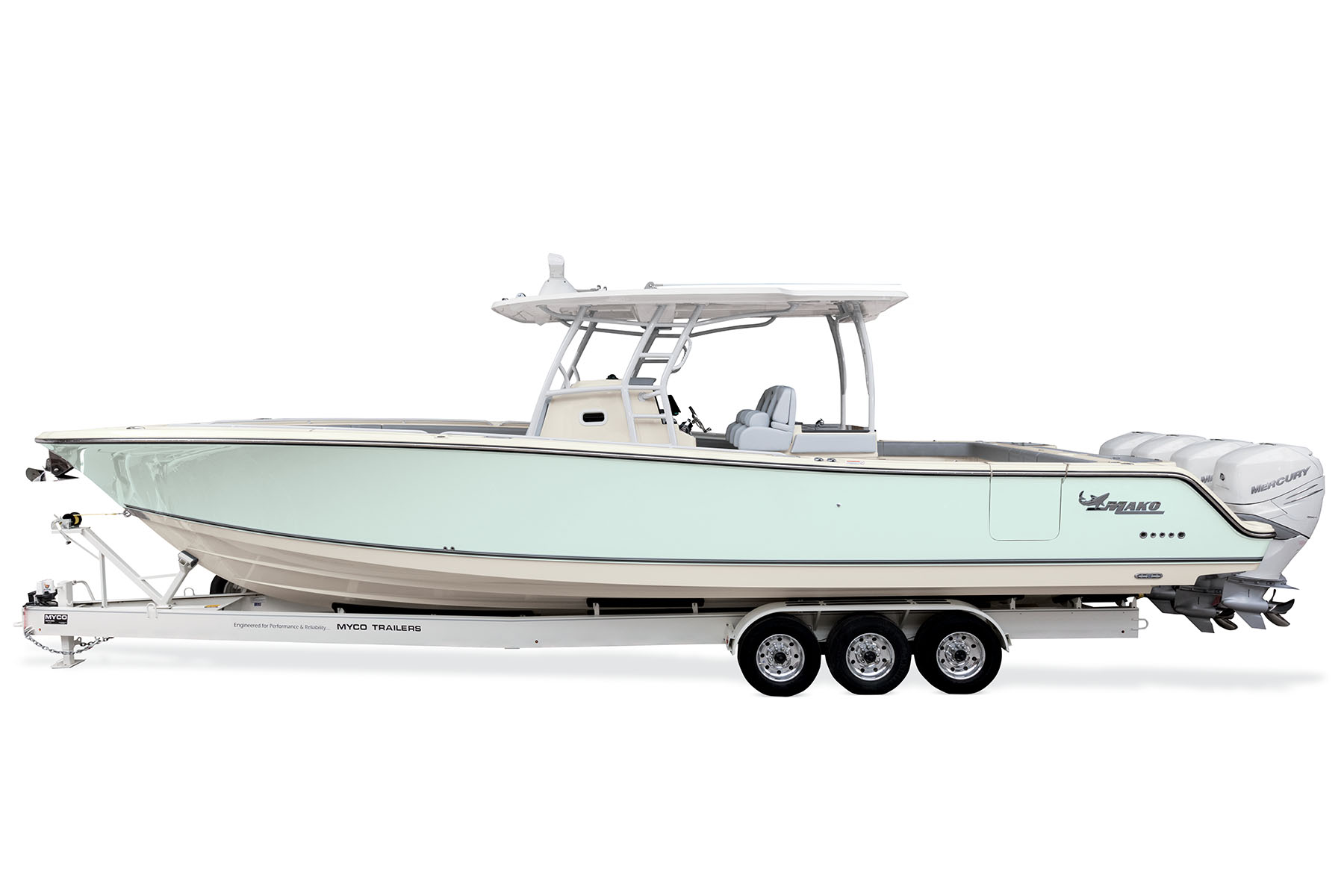

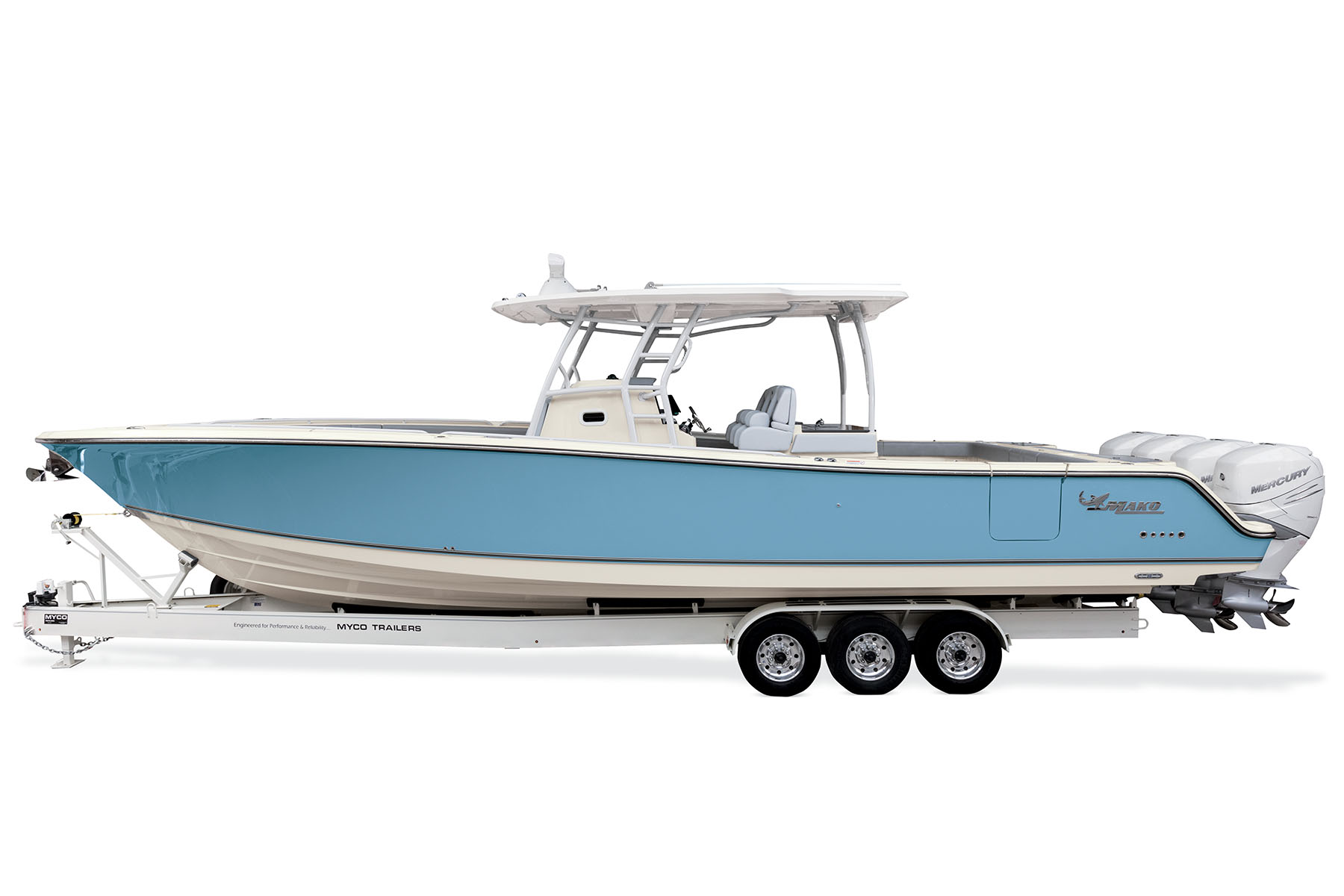

- OPTIONAL triple-axle MYCO galvanized & painted trailer w/electric hydraulic disc brake available
