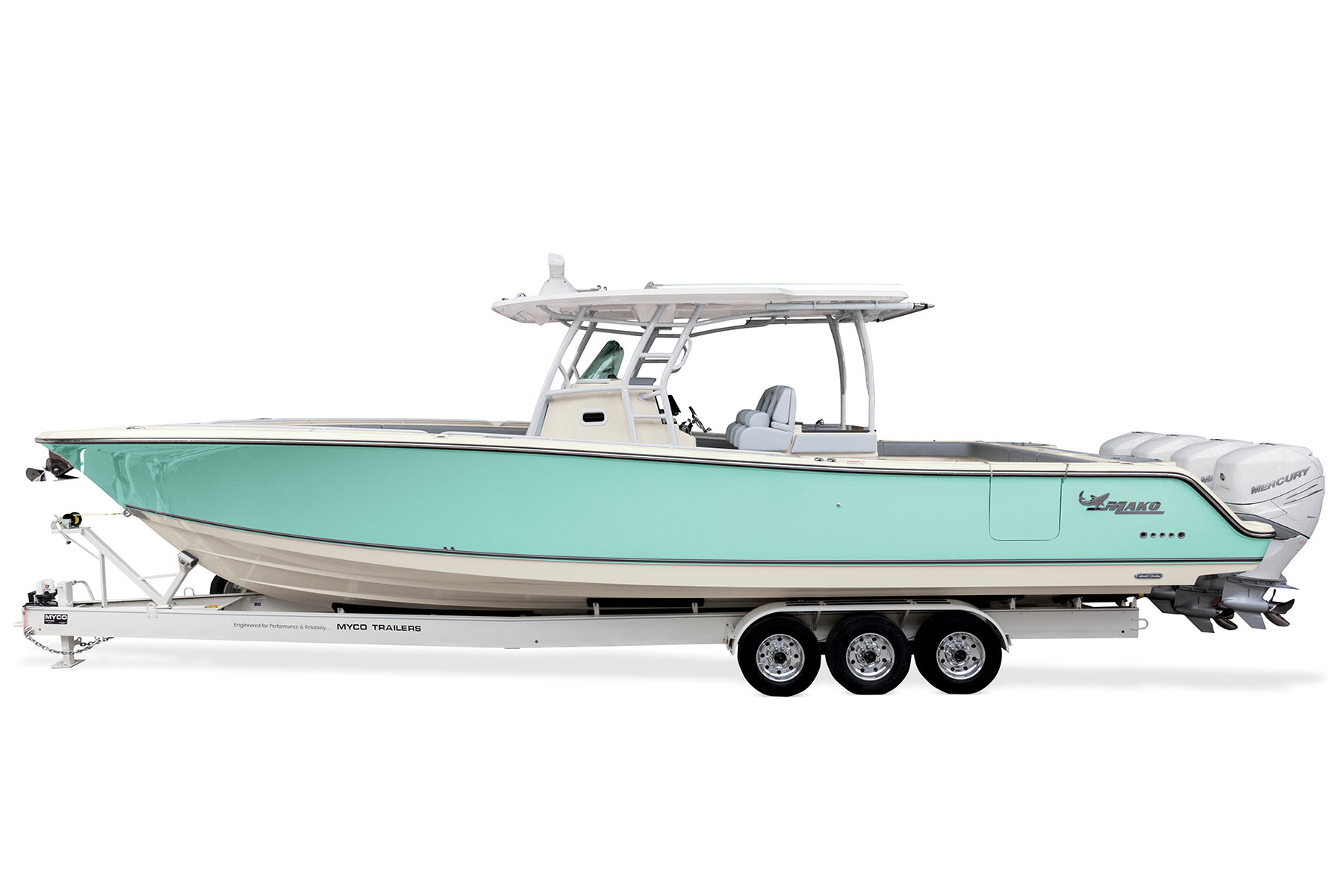

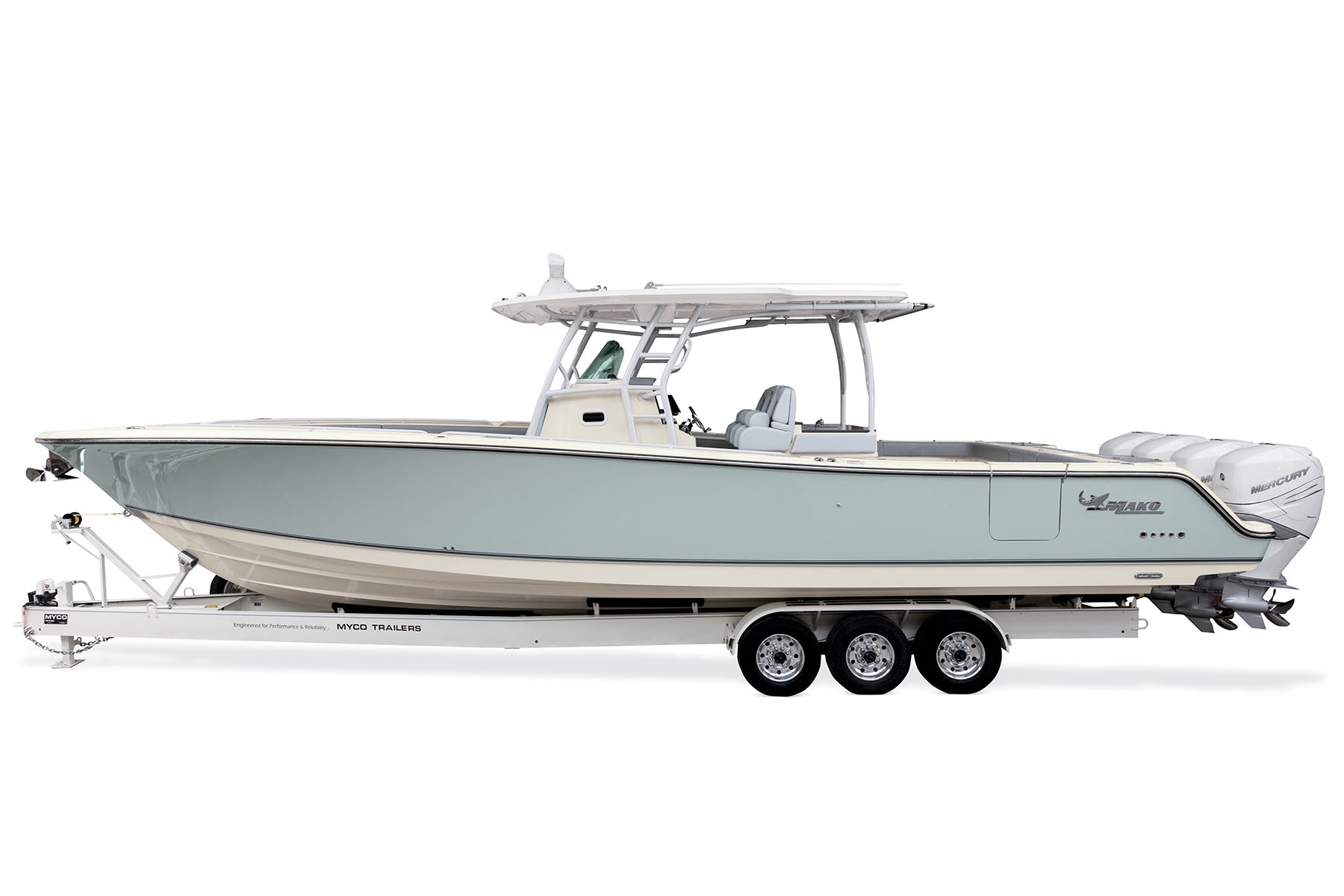

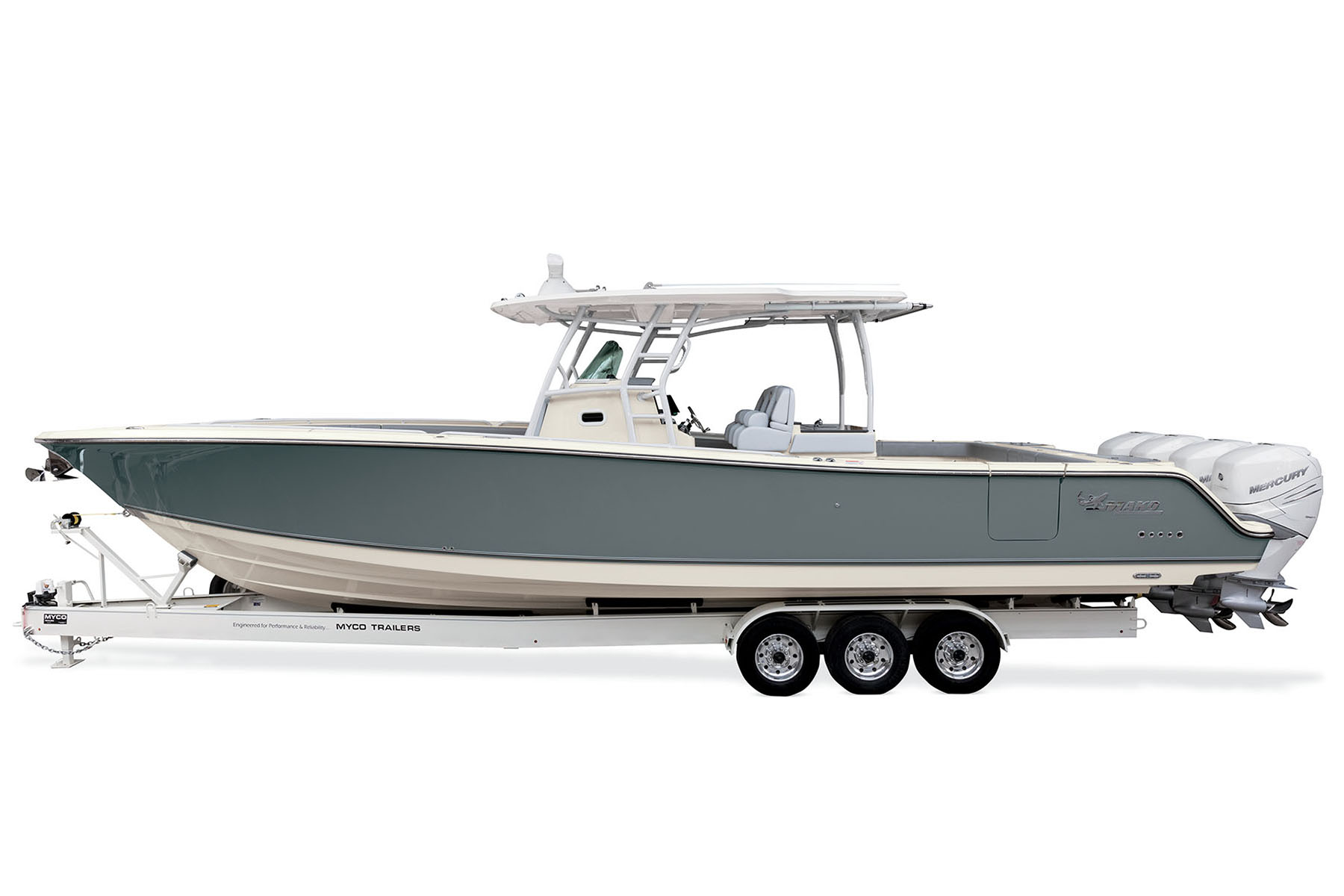

The MAKO® 414 CC is the largest, most powerful and most comfortable boat in the 50-plus-year history of MAKO. With beautiful fit and finish, premium fishing features and state-of-the-art technology, the 414 CC is ready to safely take you and your crew to the horizon and back for an unparalleled family adventure or the fishing trip of a lifetime.

The MAKO 414 CC is the ultimate offshore fishing and family recreational boat—and it’s backed by MAKO Assurance 5+Life—the best factory warranty in the business.

Family Edition: Tthe MAKO 414 CC Family Edition includes luxurious bow seating with gel-coated storage beneath, a cooktop and fridge, upgraded stereo and air conditioning. And at the back of the deluxe hardtop, there’s a 5’ auto-retractable sun shade that can be controlled from the helm or from a mobile device using the Sharktooth™ app.


Length 12.5 m 41'
Beam 3.63 m 11' 11''
Bottom Width 3.22 m 10' 6.75''
Max. Recommended HP 1675 HP
Fuel Capacity 1756.24 L 464 gal.
Interior Depth 93.98 cm 37''
Transom Height At Center Line 86.36 cm 34''
Deadrise 24 degrees
Draft 60.96 cm 24''
Dry Weight 7956.01 kg 17540 lbs.
Average Hull Weight 6803.89 kg 15000 lbs.
Average Package Weight 10432.62 kg 23000 lbs.
Package Height w/Hardtop 4.06 m 13' 4''
Storage Length 14.02 m 46'

Motor Options

Bluewater Family Edition
Quad Mercury® 350 XXL Verado® Phantom Black -
Select Dealer
Quad Mercury® 350 XXL Verado® Warm Fusion White -
Select Dealer
Quad Mercury® 350 XXL Verado® Phantom Black w/Joystick Piloting -
Select Dealer
Quad Mercury® 350 XXL Verado® Warm Fusion White w/Joystick Piloting -
Select Dealer


Family Edition

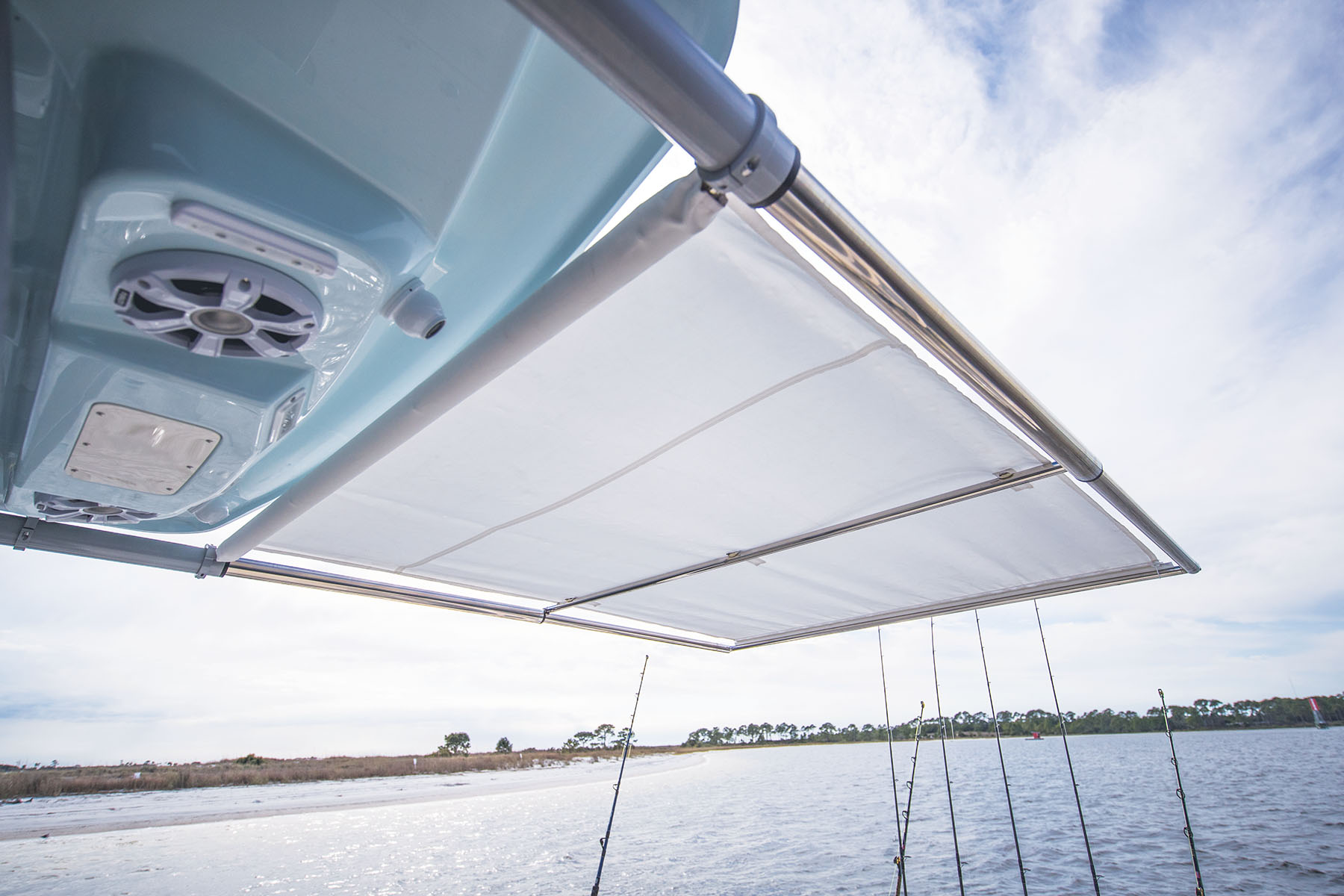

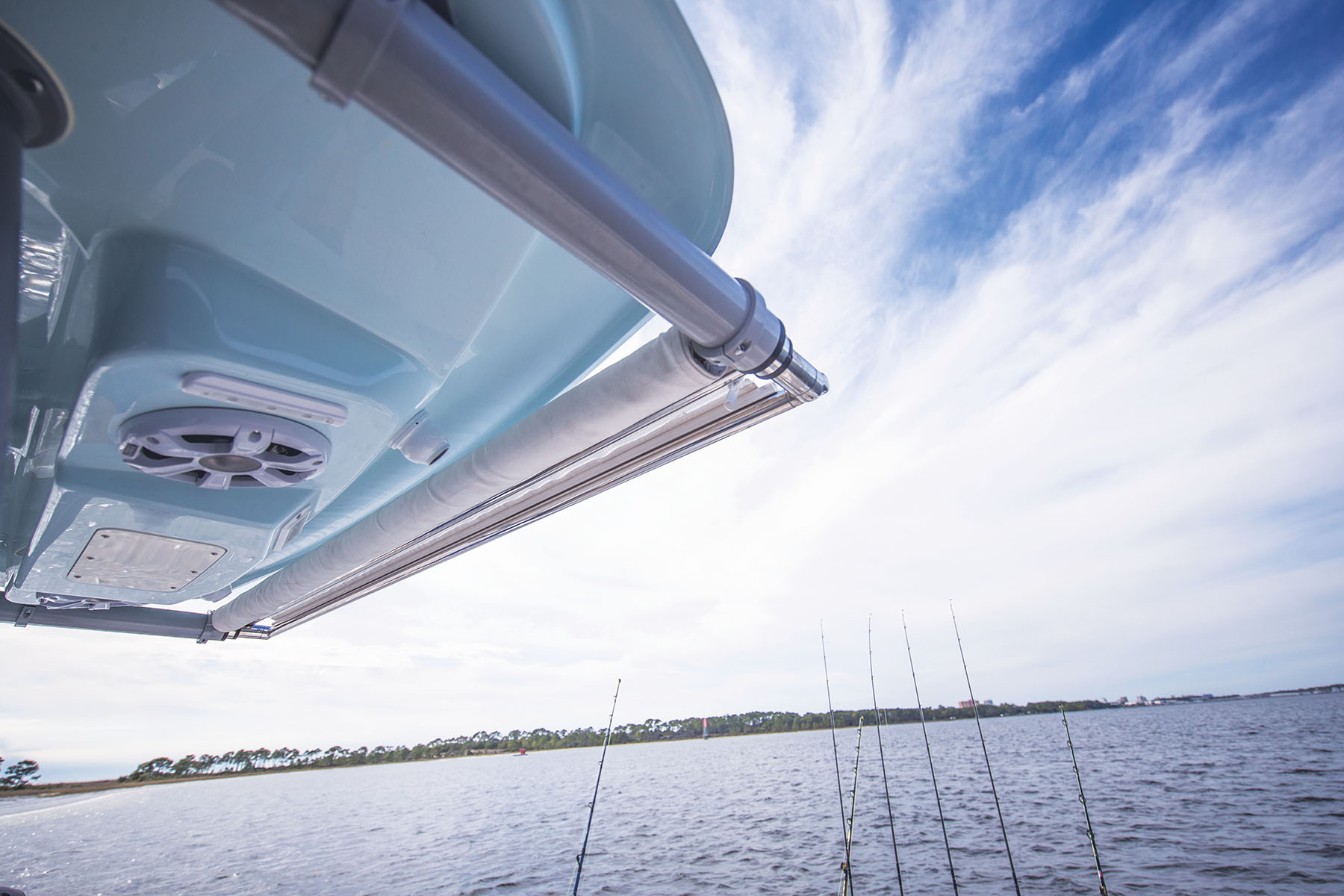

  • Deluxe hardtop w/6’ (1.83 m) SureShade® automatic deploy/retract aft deck shade
  • SharkTooth remote monitoring app for iOS & Android

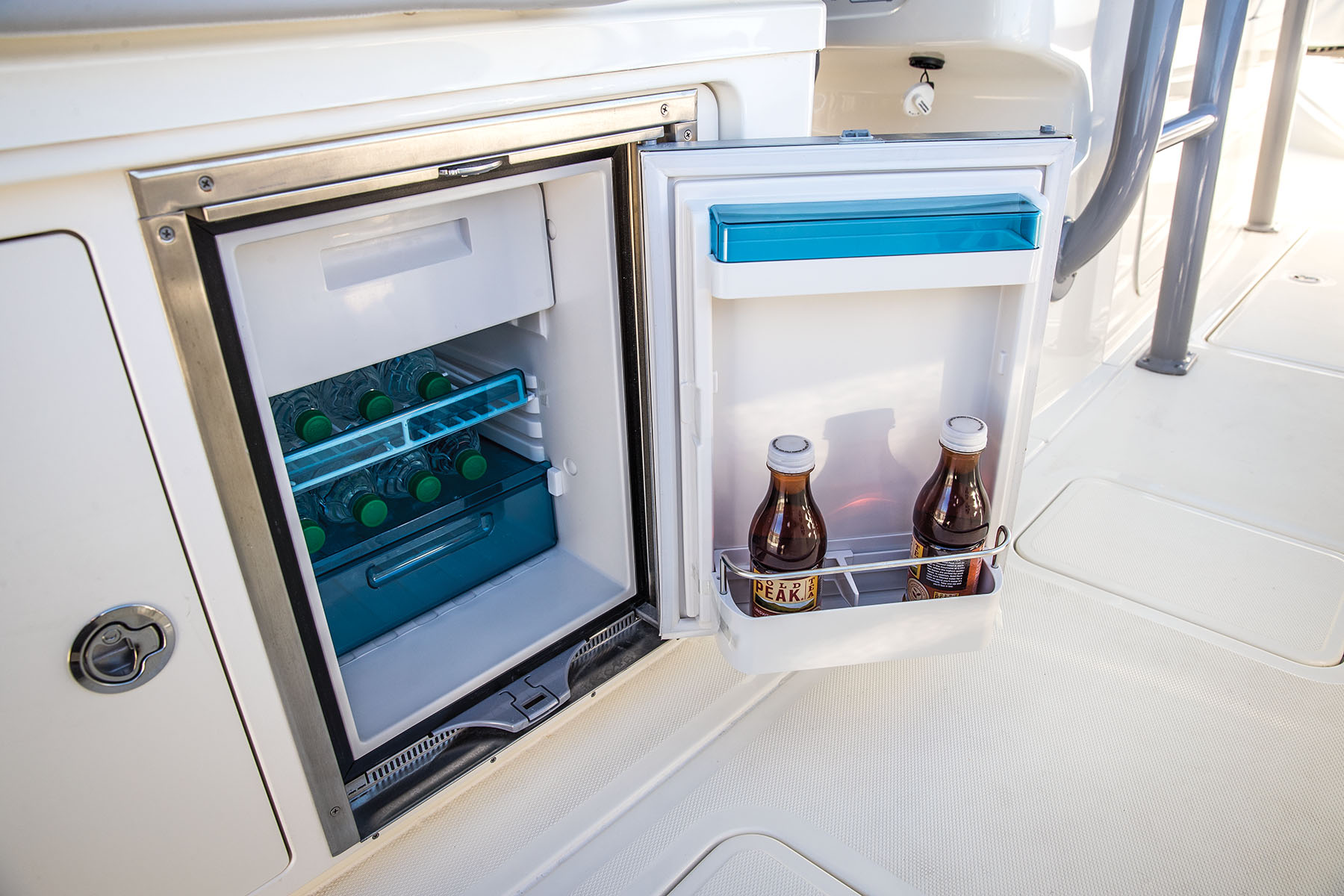

  • Kenyon® dual-burner electric hot plate w/PUPS™ (Pop Up Potholder System) + Dometic® 12V 1.6cu refrigerator
  • 8kW Fischer Panda® Genset w/24-gal. (90.85 L) diesel fuel tank
  • Head & cockpit air conditioning
  • 120V AC hot freshwater heater

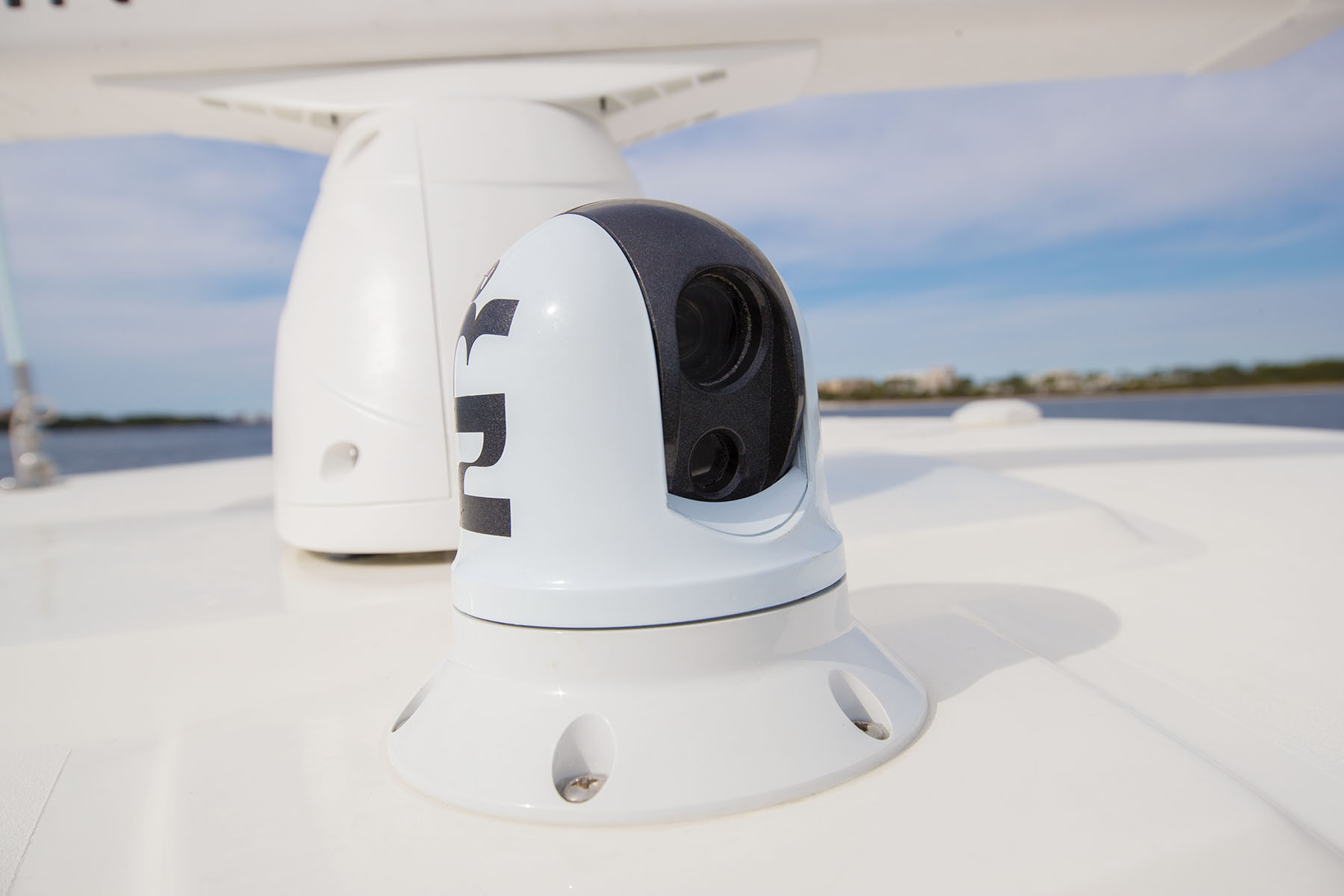

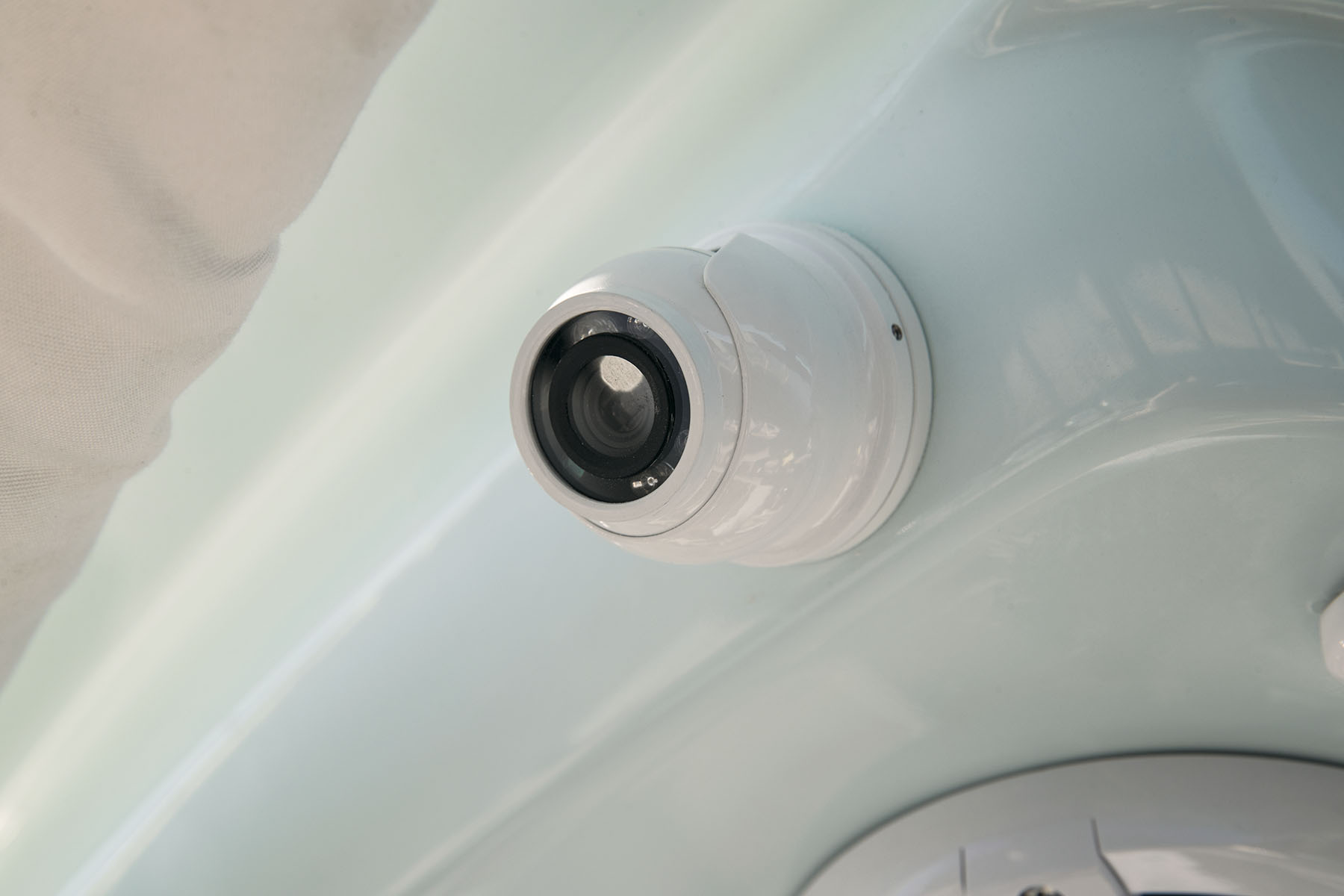

  • IRIS295v2 NightRunner 2 infrared camera on forward hardtop w/helm waterproof joystick controller
  • Shadow-Caster® underwater light package w/8 SCM-10 Blue LED lights

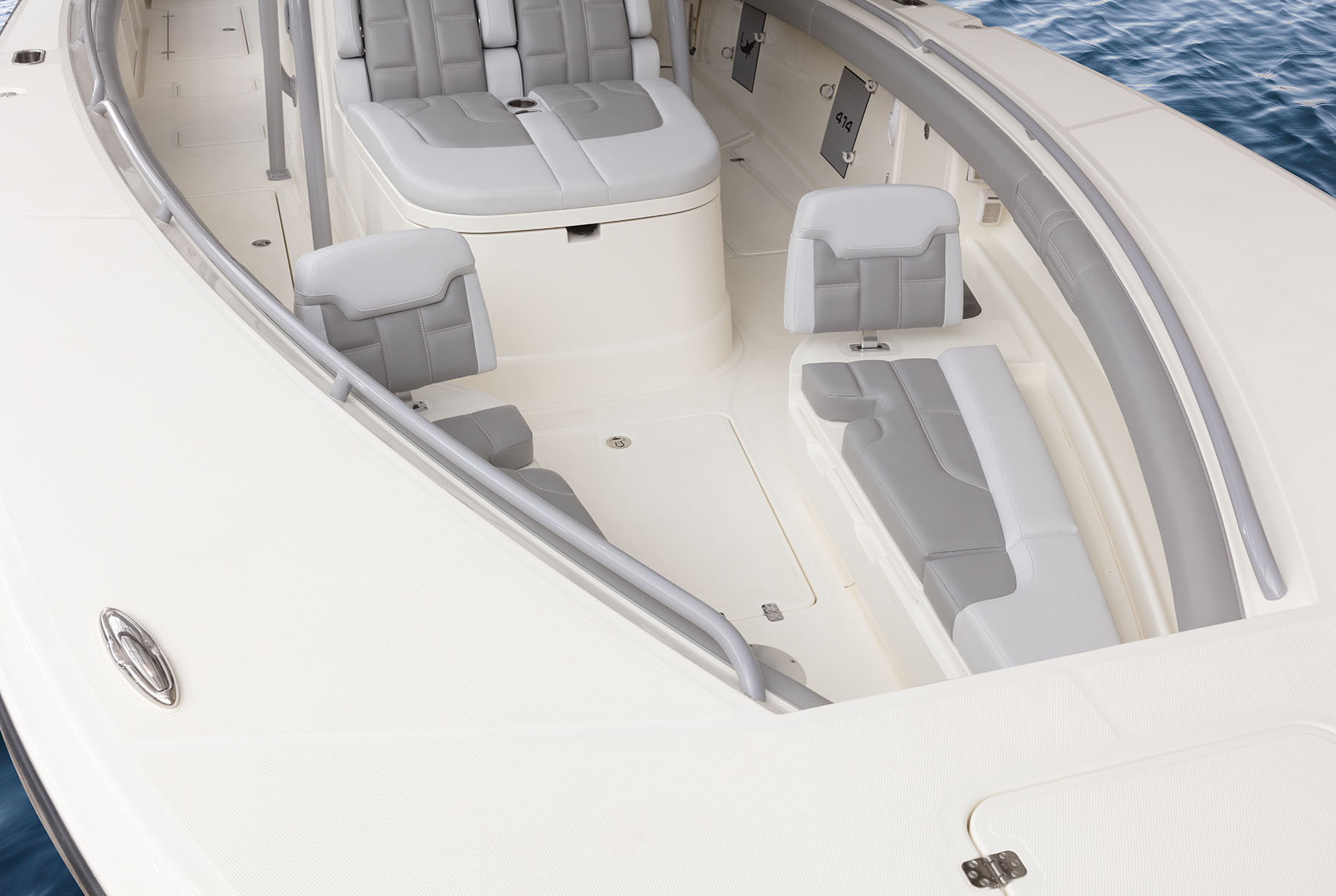

  • Port & starboard forward seating w/cushions, stowable backrests & 59-qt. (55.83 L) gel-coated storage beneath

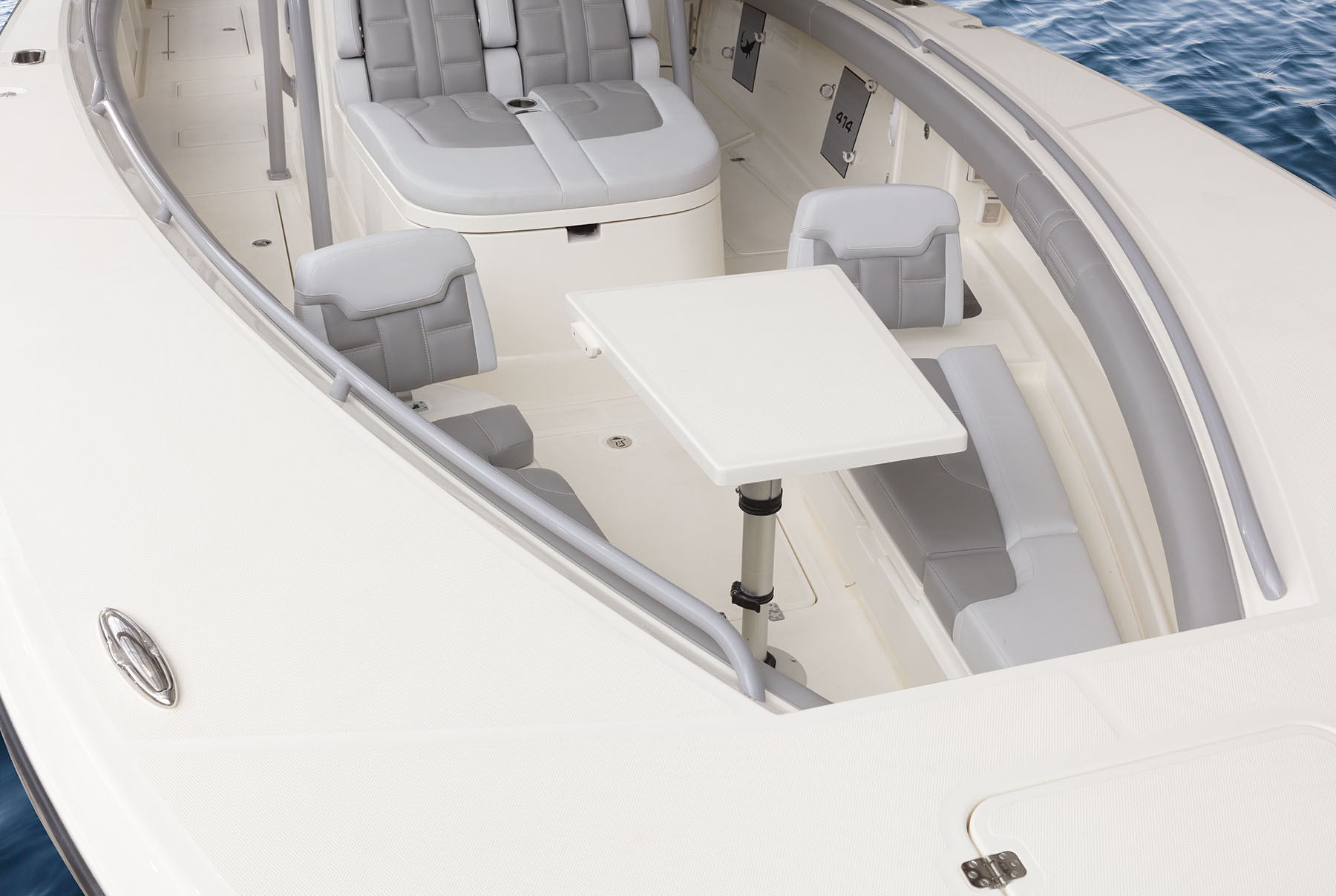

  • Removable cushioned bow filler doubles as a raised table (stowable in bow in-deck compartment)
  • Tempered safety glass windshield w/an aluminum frame

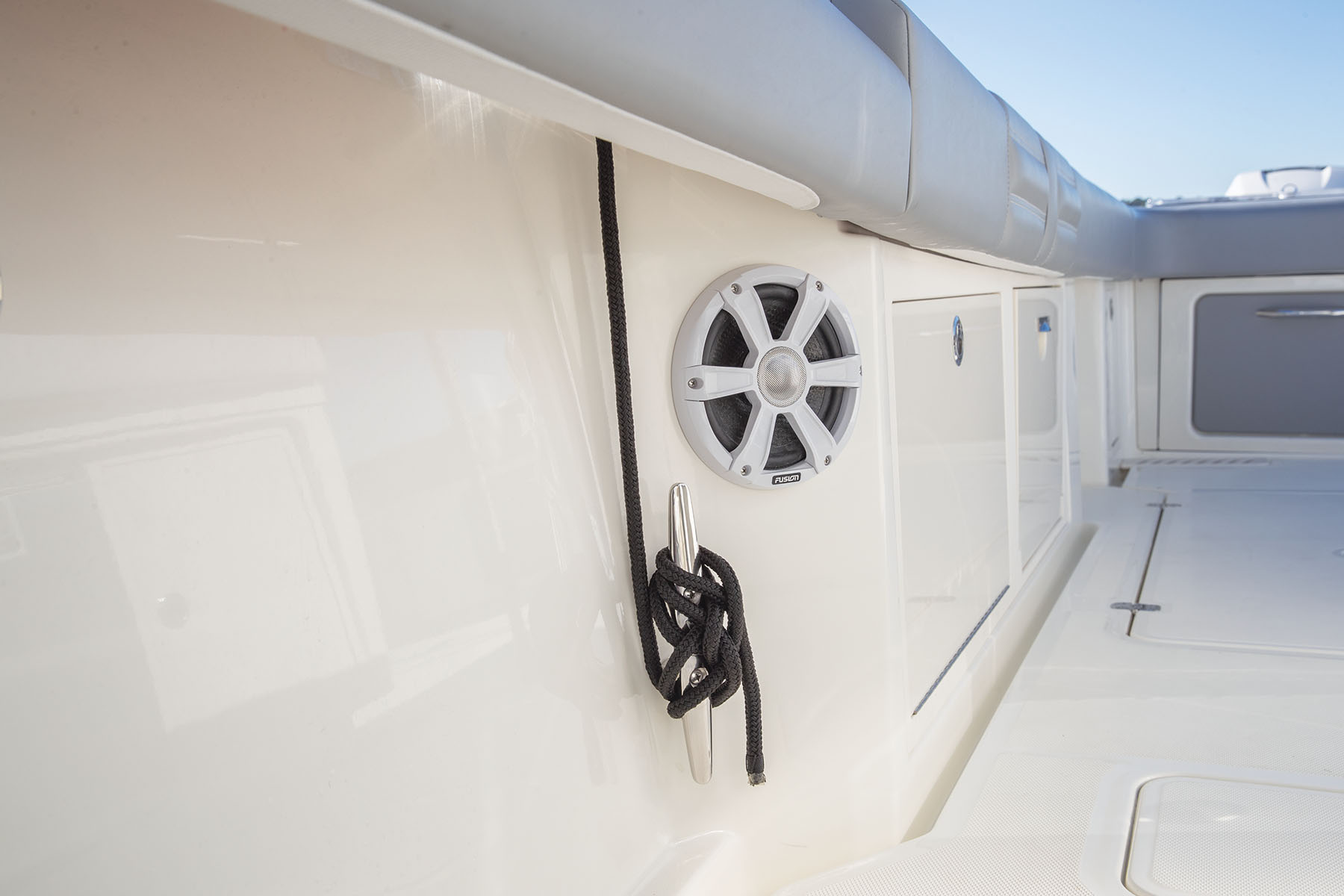

  • FUSION UD750 stereo w/6 Blue LED lighted speakers, 1,600W amp & two 10" (25.4 cm) subwoofers

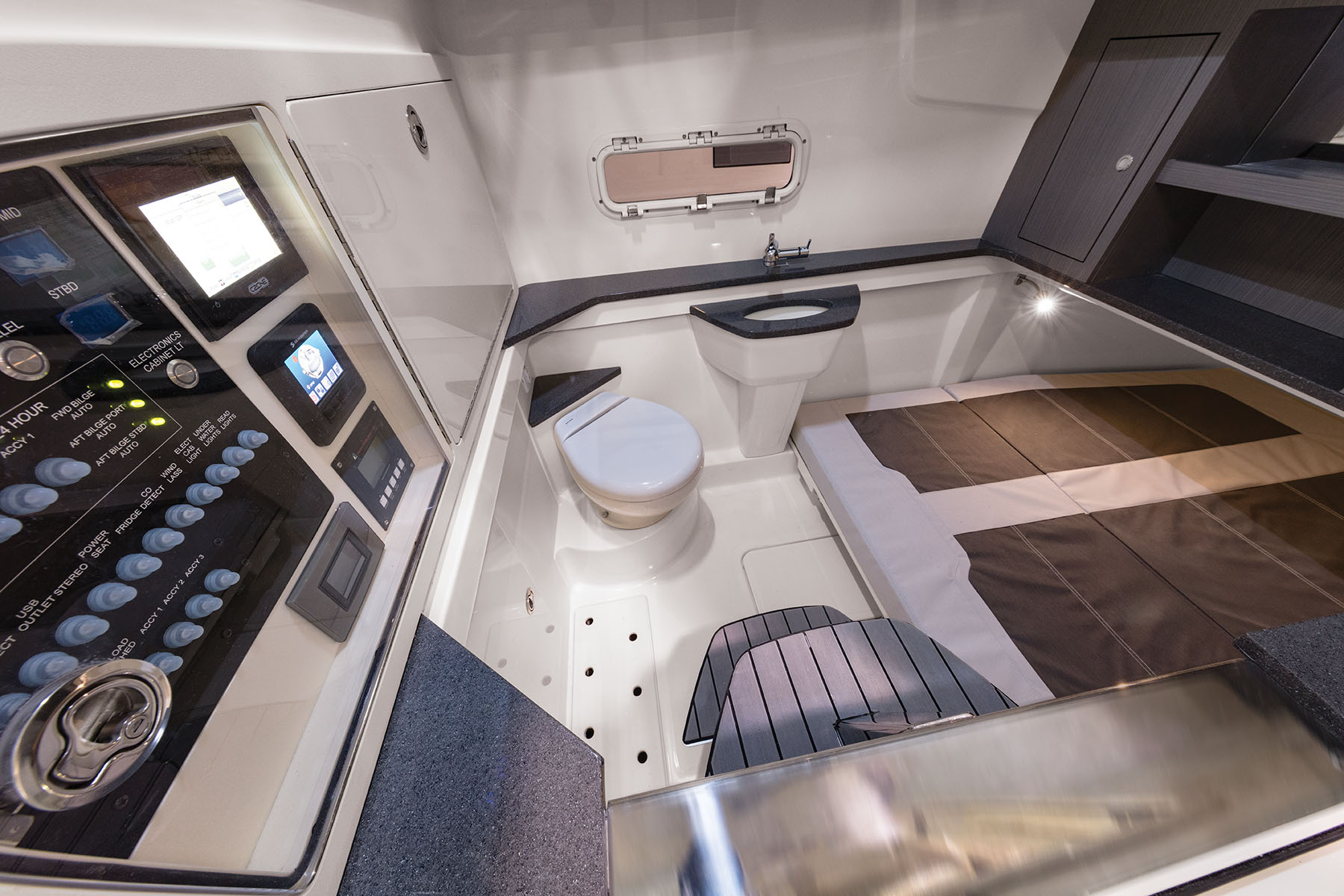

  • Electric head w/overboard drainage & holding tank
Certification & Safety
  • Backed by MAKO® Assurance 5+Life—the best factory warranty in saltwater boats
  • NMMA® yacht certified
  • Factory leak tested for hull, plumbing & fitting integrity
  • Dual-tone marine horn
  • Flush-mounted Ritchie Navigation® Voyager compass

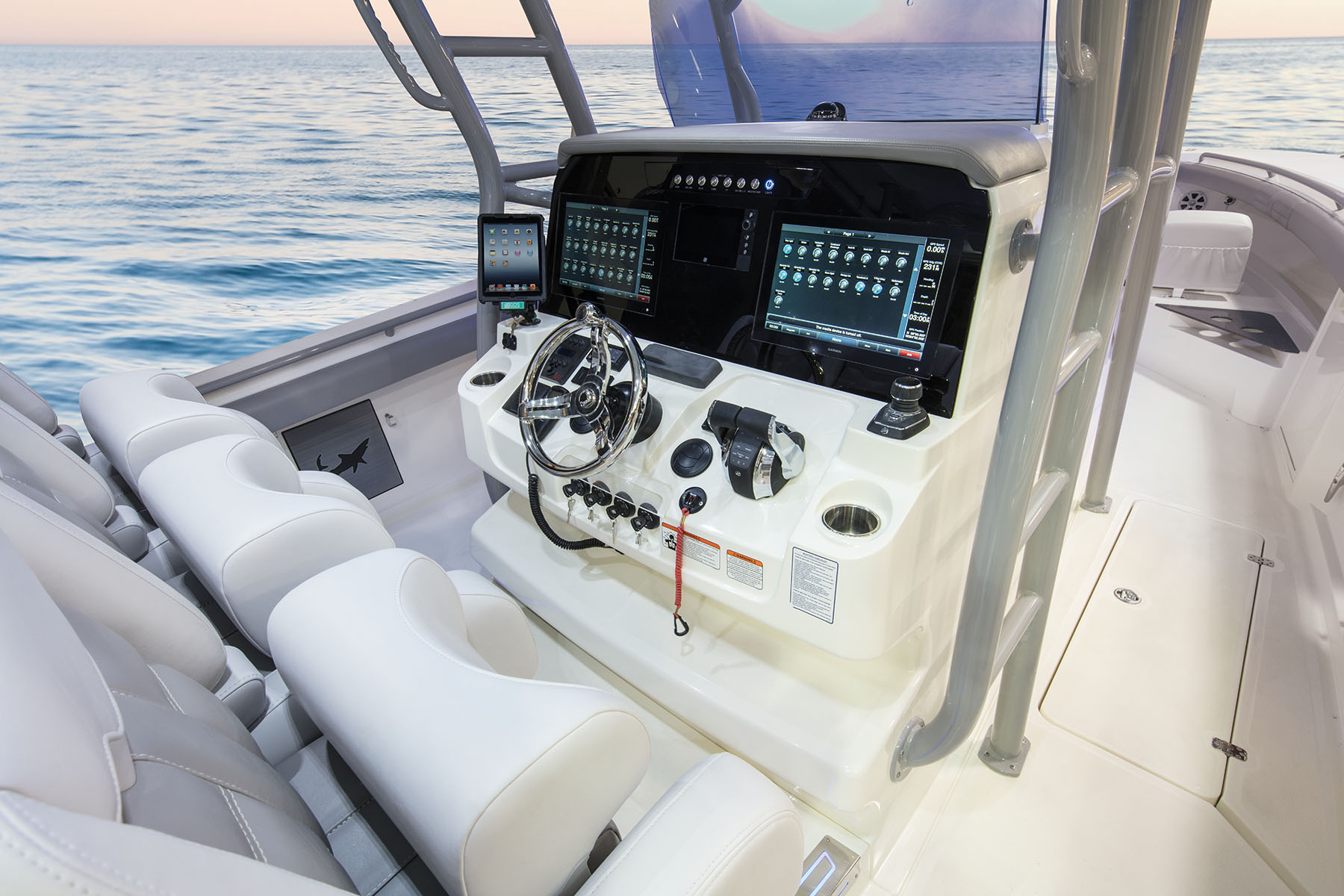

  • Garmin® 8617 MFD Package: 2 Garmin® 17" (43.18 cm) GPSMAP® 8617 MFD chartplotter/sonar combos, 2 Garmin® GSD 25 sounder modules, Garmin® GXM™ 51 w/side/downscan transducer, Garmin® VHF radio, 300 Blackbox receiver, open array radar & Airmar B265 w/dual CHIRP transducer
  • CZone™ digital switching w/comprehensive electrical-monitoring system
  • Digital switching through multifunction displays
  • Stainless steel tilt steering wheel w/knob
  • Binnacle-mounted motor control(s)
  • Available w/Mercury® JPO (Joystick Piloting for Outboards) w/Skyhook® auto-positioning GPS (at additional cost)
  • Mercury® VesselView®
  • Control pad for forward hardtop infrared camera
  • Heavy-duty motorized mechanical switching system w/battery selectors & voltage sensing relays (VSR)
  • Recessed ignition switches
  • Illuminated electrical distribution panel w/digital volt meters
  • Illuminated panel & elevator switches
  • Mercury® diagnostic port
  • Easy access to helm electronics, instruments & switches

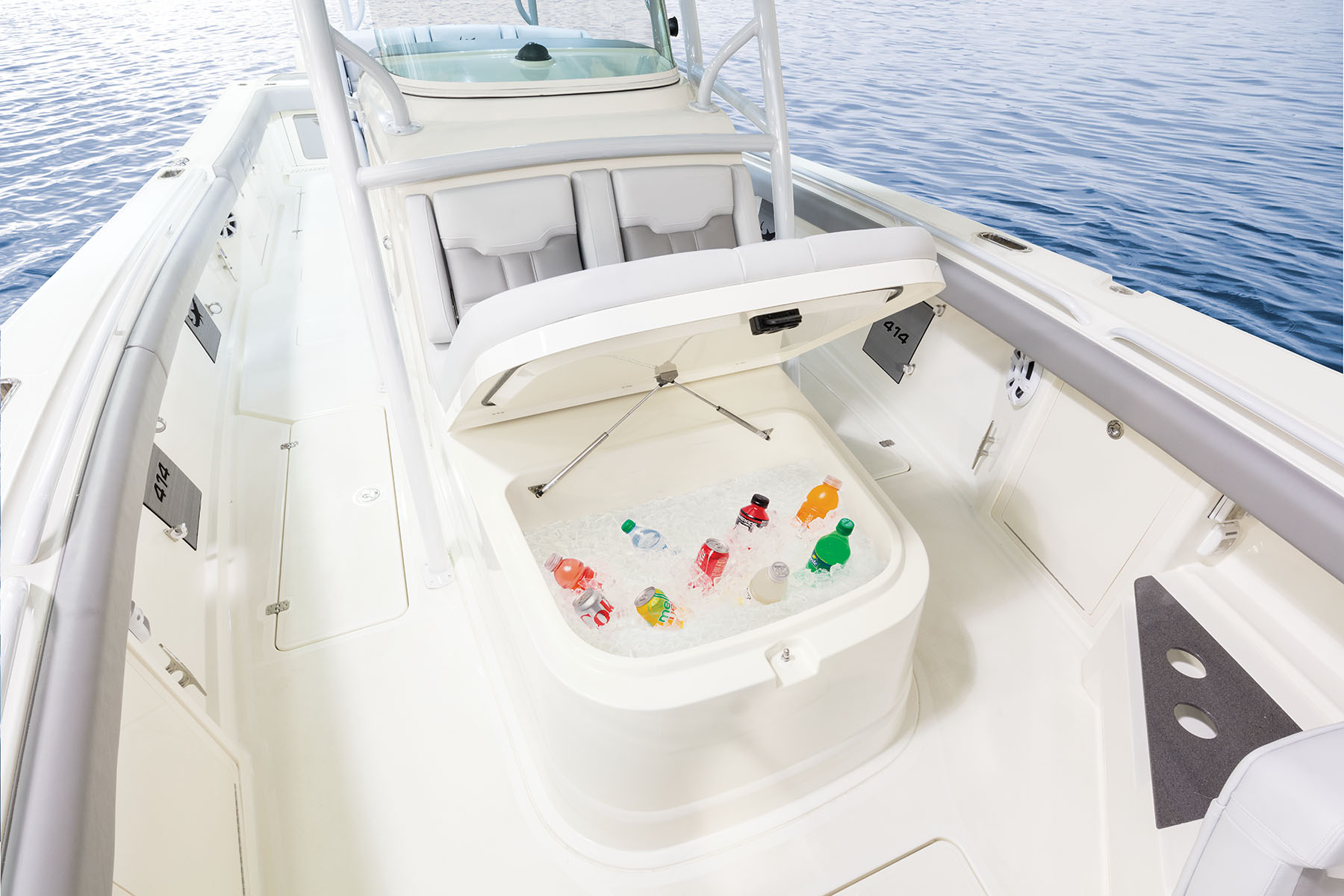

  • Oversized cushioned forward-console lounge w/275-qt. (260.25 L) insulated, drained cooler
  • Vinyl-covered console brow
  • Integrated full-width fiberglass footrest w/non-skid surface
  • Marine-grade tinned wiring w/submersible connectors
  • Extra-large electronics mounting surface
  • 2 console drink holders
  • 12V DC outlet & dual USB ports

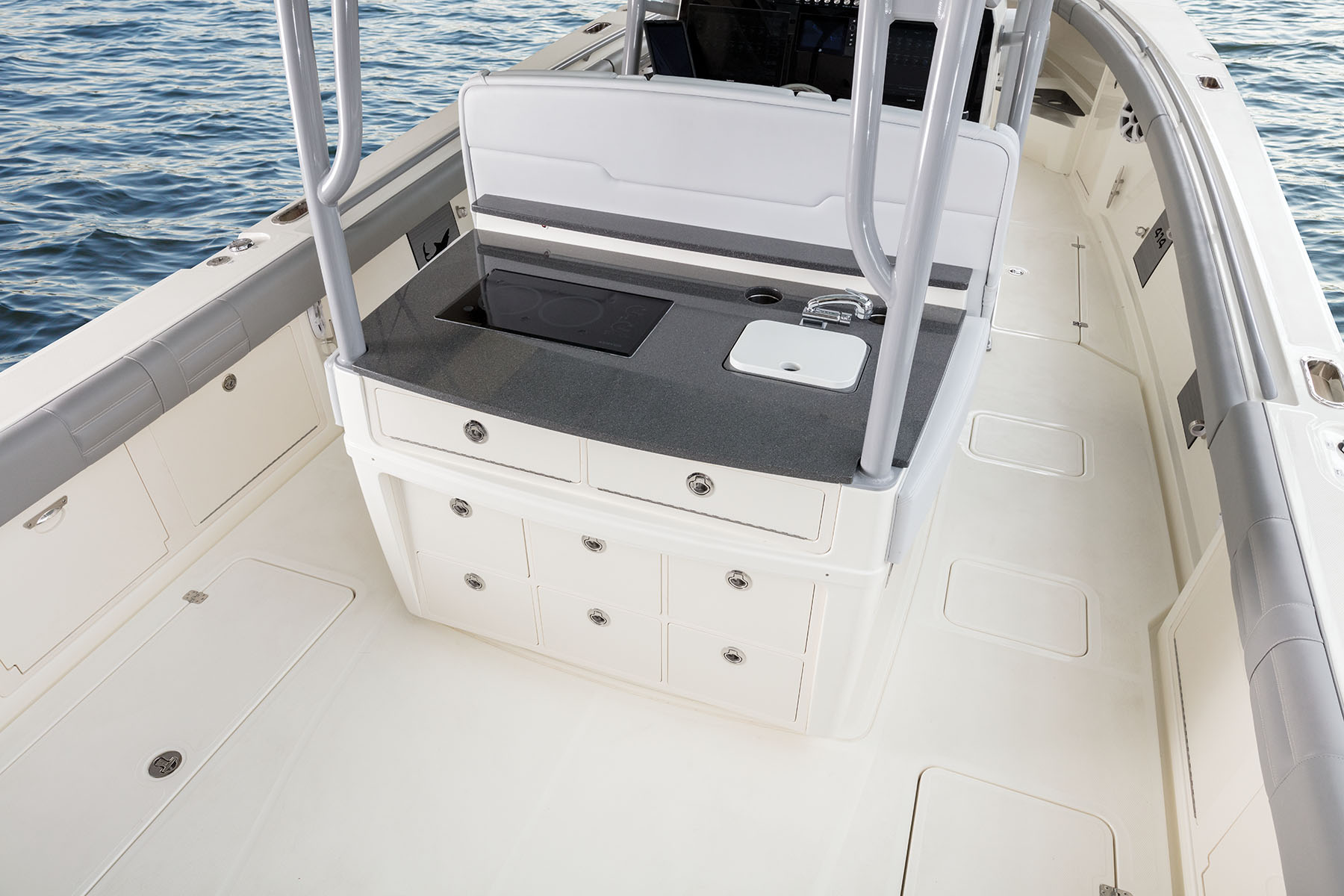

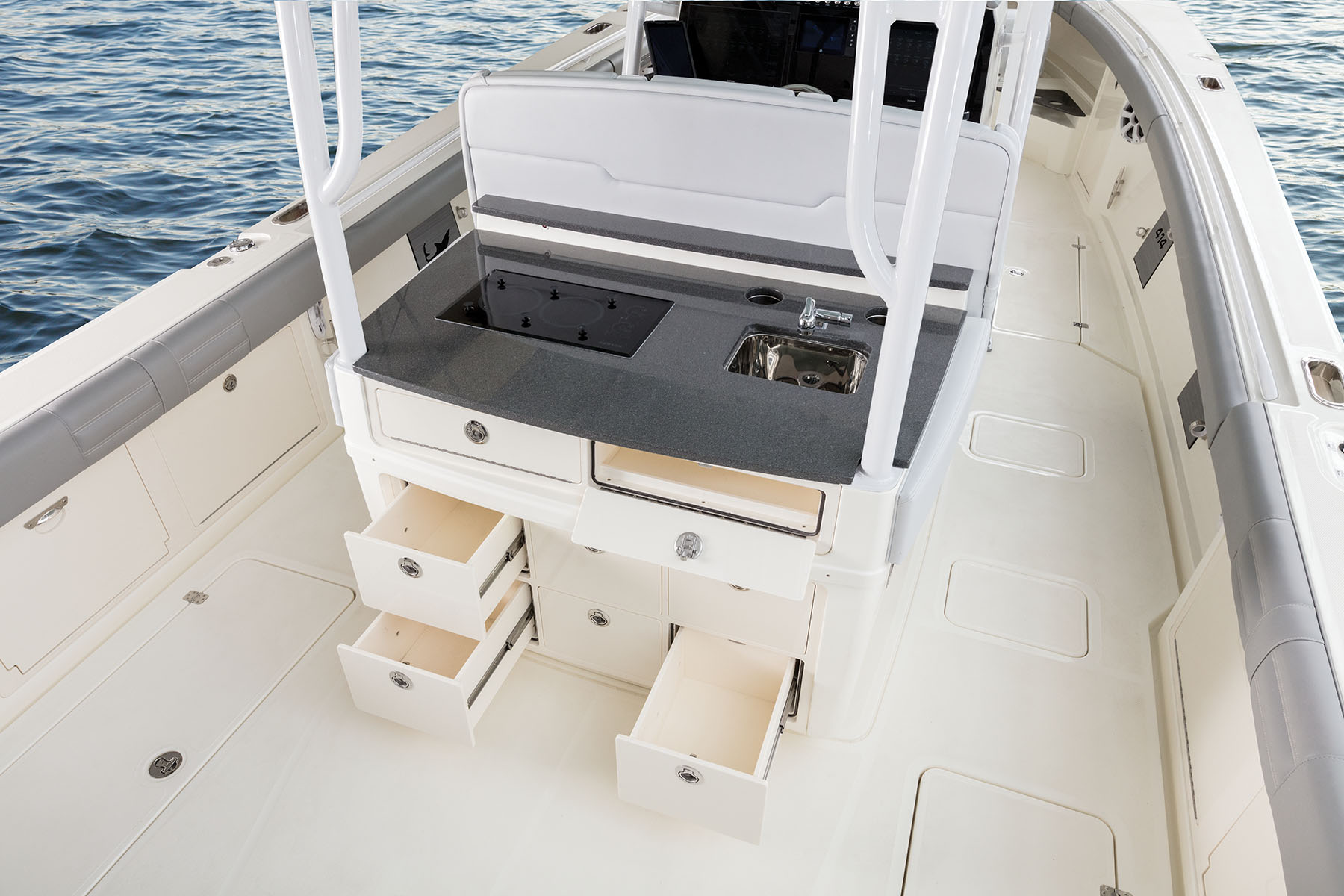

Leaning Post
  • Fiberglass leaning post
  • Armrest
  • Backrest
  • Tackle storage
  • 2 large, hinged top storage drawers
  • 6 large, sliding storage drawers
  • Stainless steel freshwater sink w/sprayer/pull-out shower
  • Diffused LED courtesy light
  • Overhead LED lighting
  • Battery & charger access below leaning post
  • 120V electrical outlet
  • Trash bin
  • 2 drink holders on leaning post
  • Outrigger-ready fiberglass hardtop
  • .25" (6.35 mm) in-deck aluminum backing-plate reinforcement for frame
  • .25" (6.35 mm) in-hardtop aluminum backing-plate reinforcement
  • White powder-coated tubular frame
  • Integrated port-side ladder w/recessed cut-out for top access
  • 2 electronics boxes w/lockable stainless steel latches
  • Non-skid hardtop surface

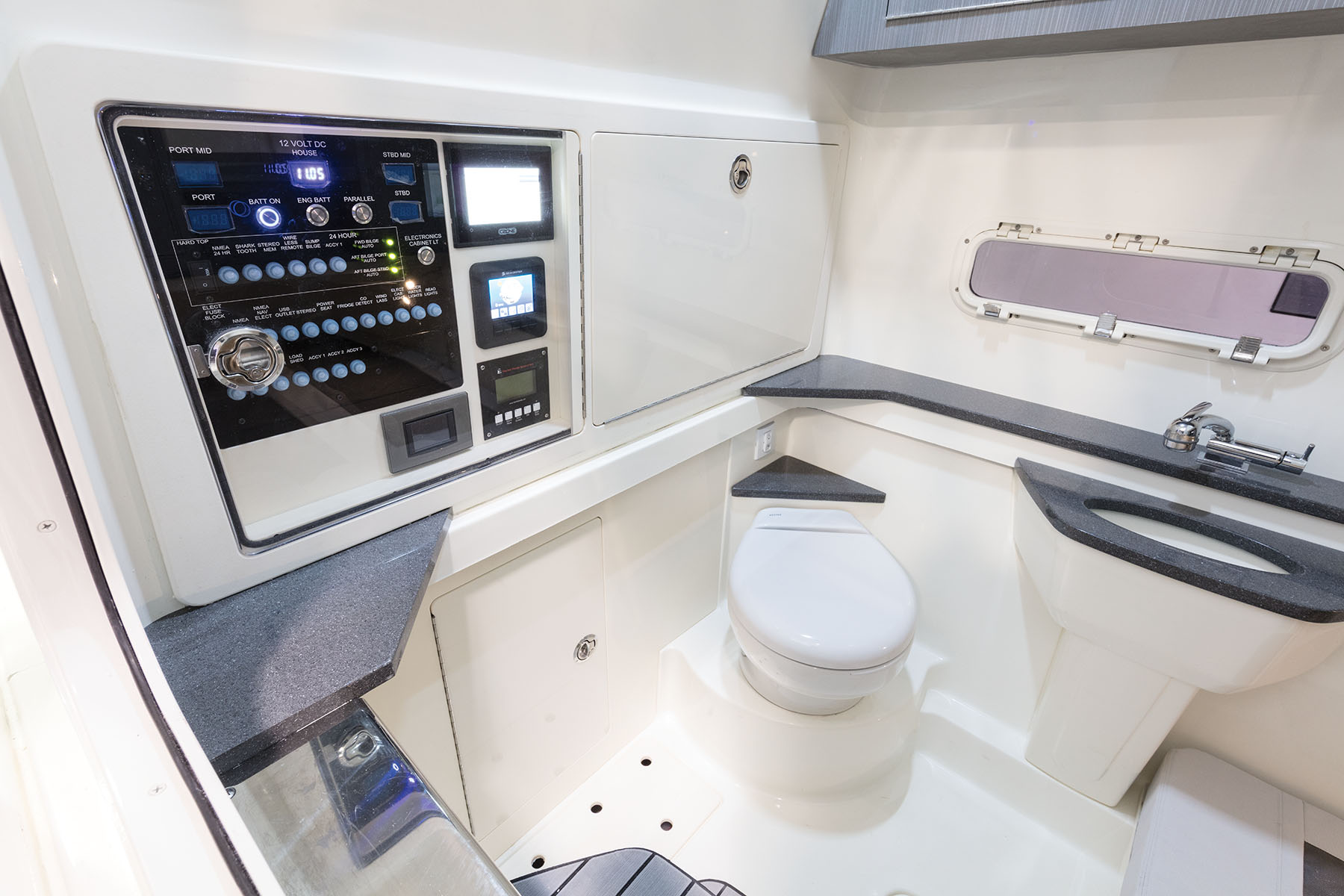

  • Main distribution panel w/breakers to bypass digital functions
  • Portlight in head door
  • 5" (12.7 cm) CZone™ monitor
  • Custom-molded freshwater sink w/Corian® top
  • Hot water pull-out shower head
  • Fold-down bunk/storage area w/removable cushions
  • Dual overhead cabinet storage
  • Tempered safety glass port lights for natural interior lighting
  • Bunk reading light
  • Gelcoated interior for ease of cleaning
  • Wiring, breaker & battery access
  • 120V GFCI plug outlet
  • 35-lb. (15.88 kg) Delta® polished anchor & 550' (167.64 m) rode

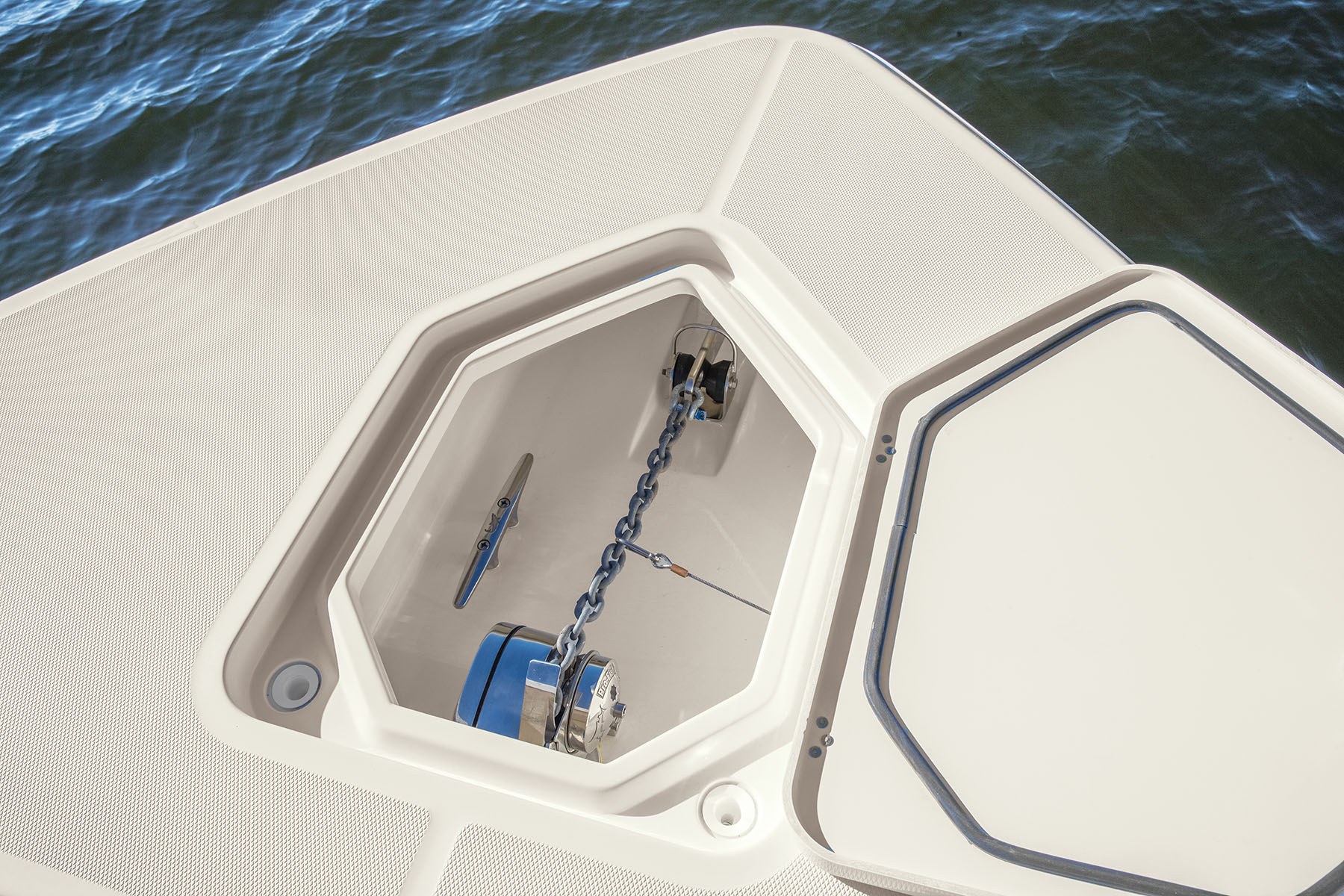

  • Lewmar® below deck, vertical free-fall windlass w/rode stowage locker
  • 2-tone high-density marine-grade vinyl upholstery w/stain-resistant coating & composite substrates on seats

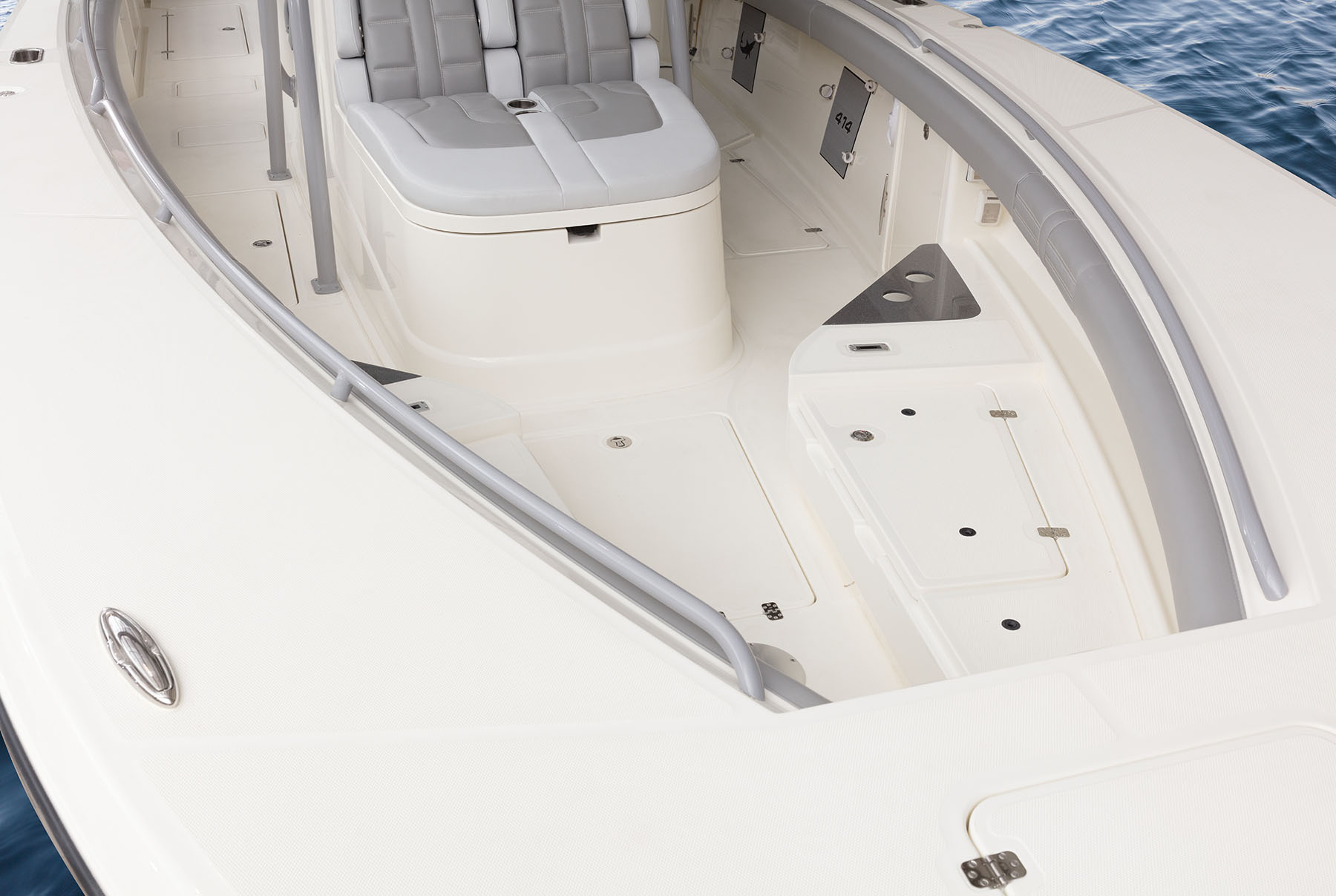

  • 824-qt. (779.8 L) bow center in-deck storage compartment w/drain
  • 3 across powered helm seating w/folding arm rests & flip-up bolsters
  • Self-bailing cockpit w/gutters, oversized drains & transom valves

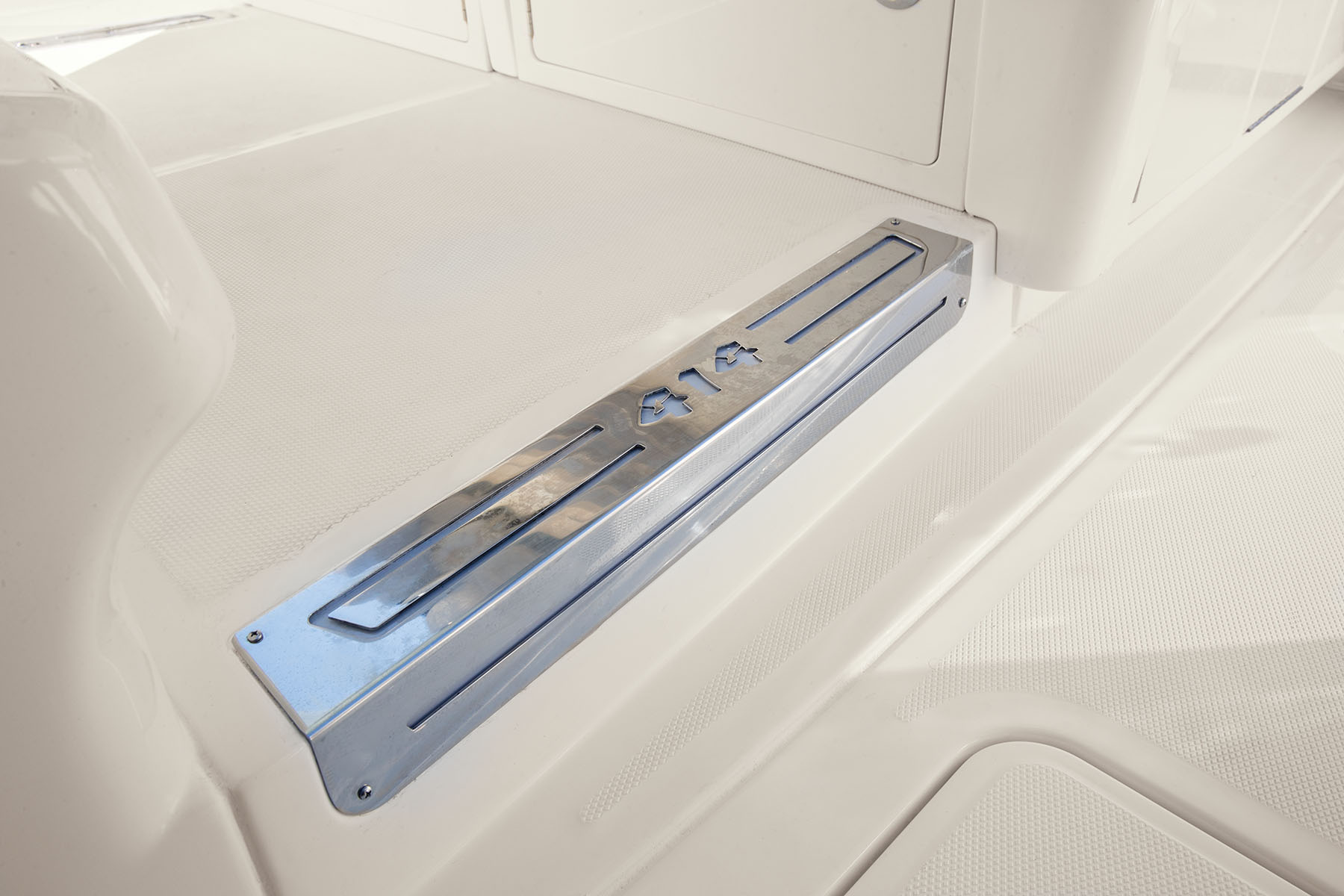

  • 4" (10.16 cm) elevated helm platform w/threshold lights
  • Port & starboard stainless steel, under-gunnel rod hangers w/reel protectors for 6 rods up to 9' (2.74 m) long

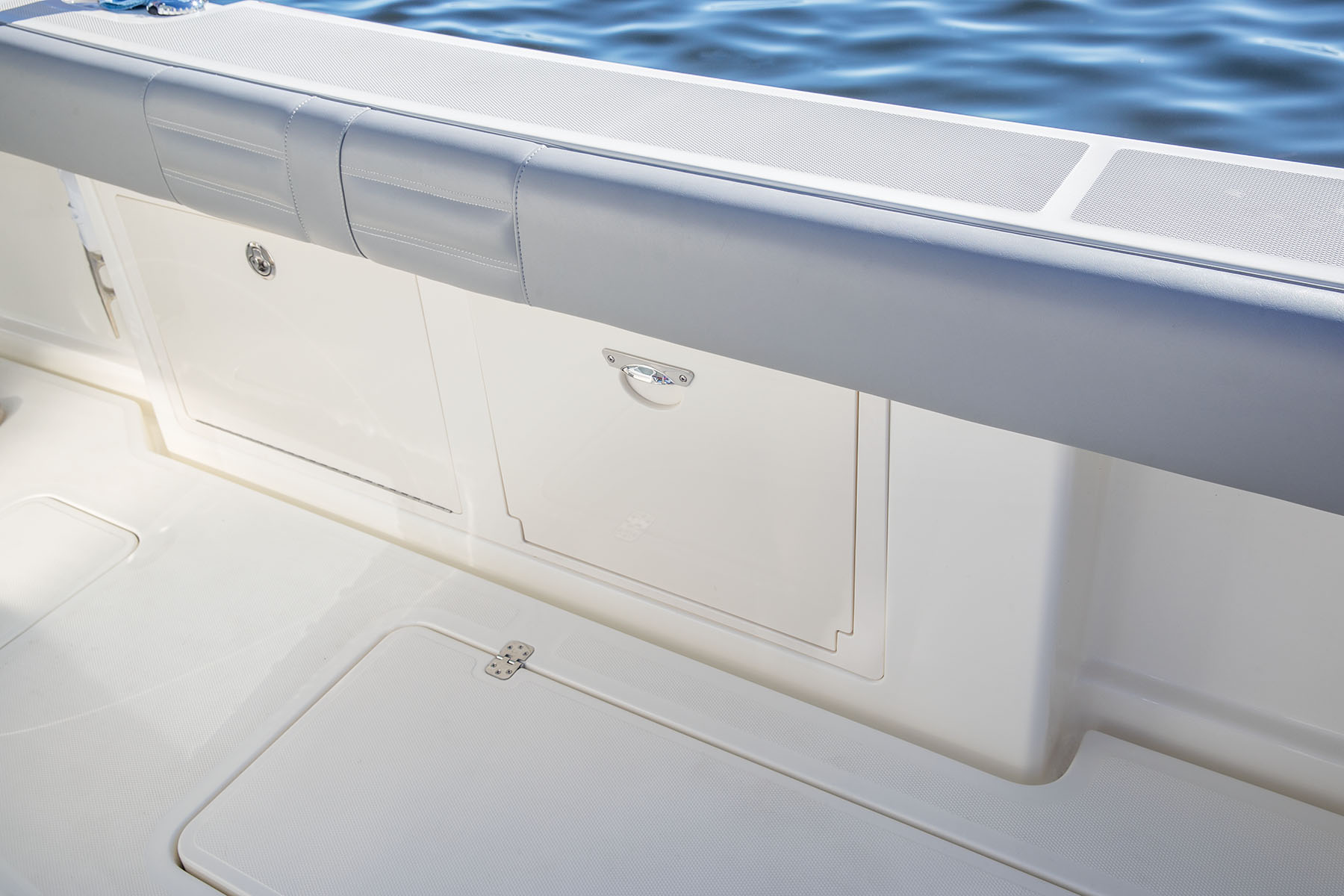

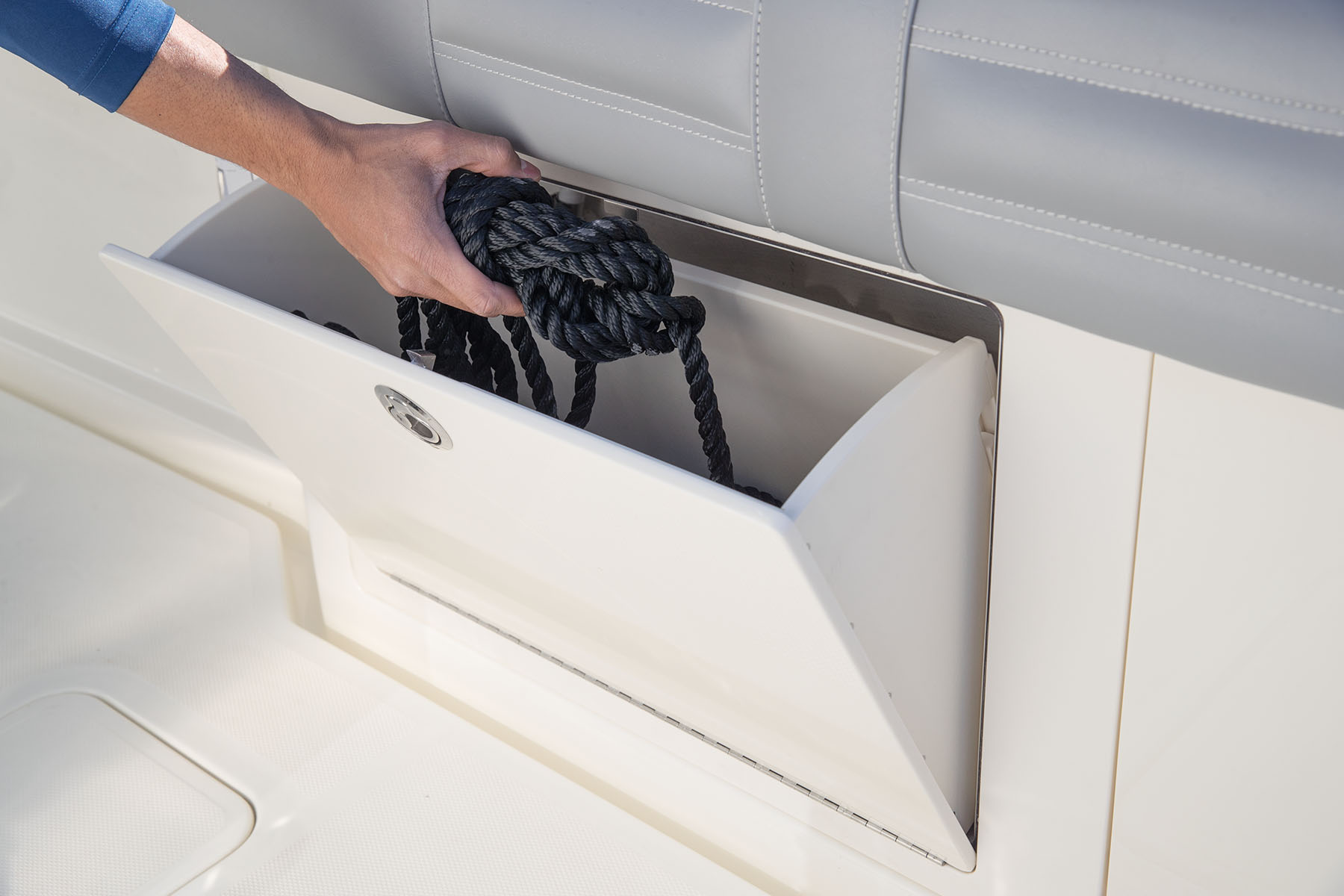

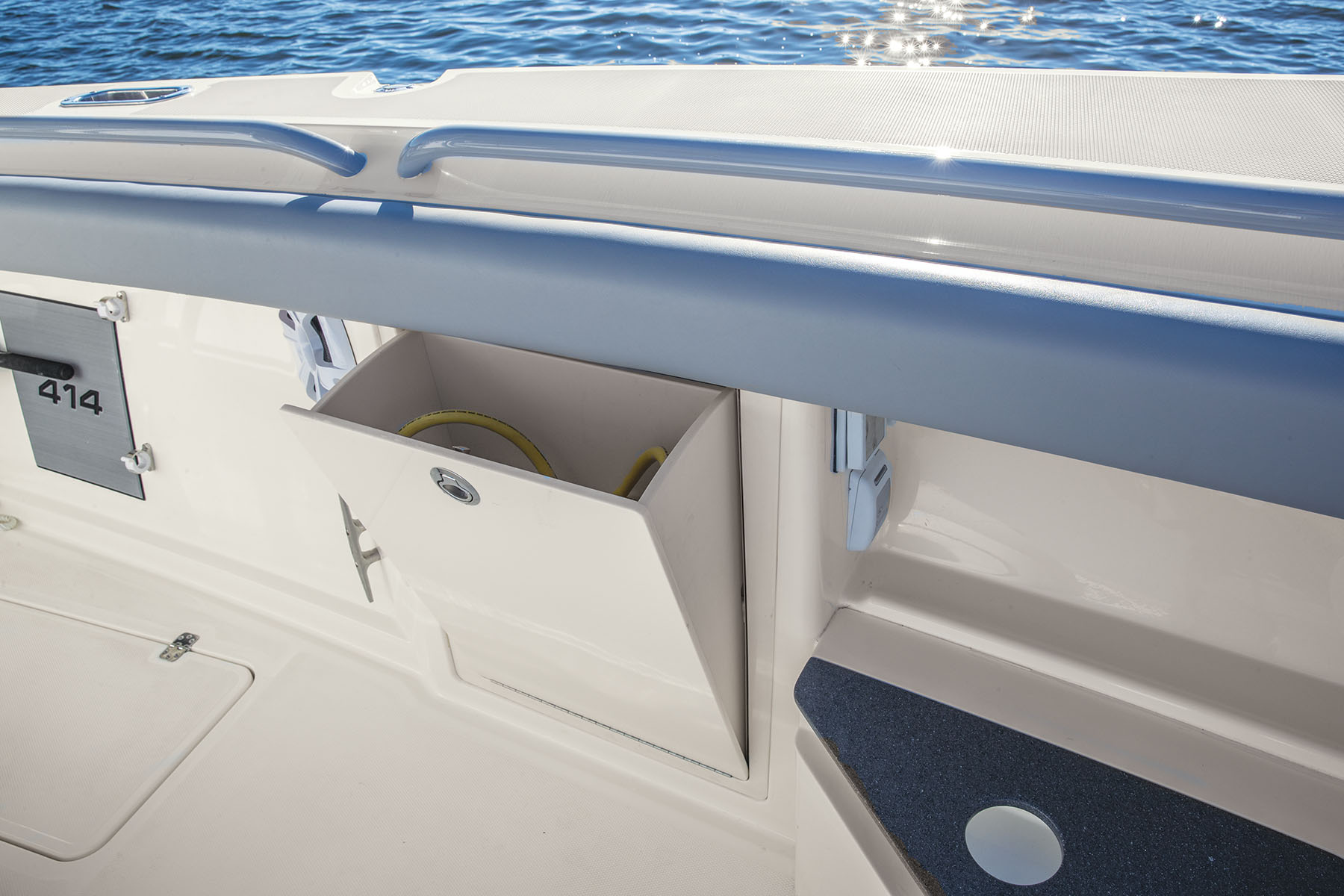

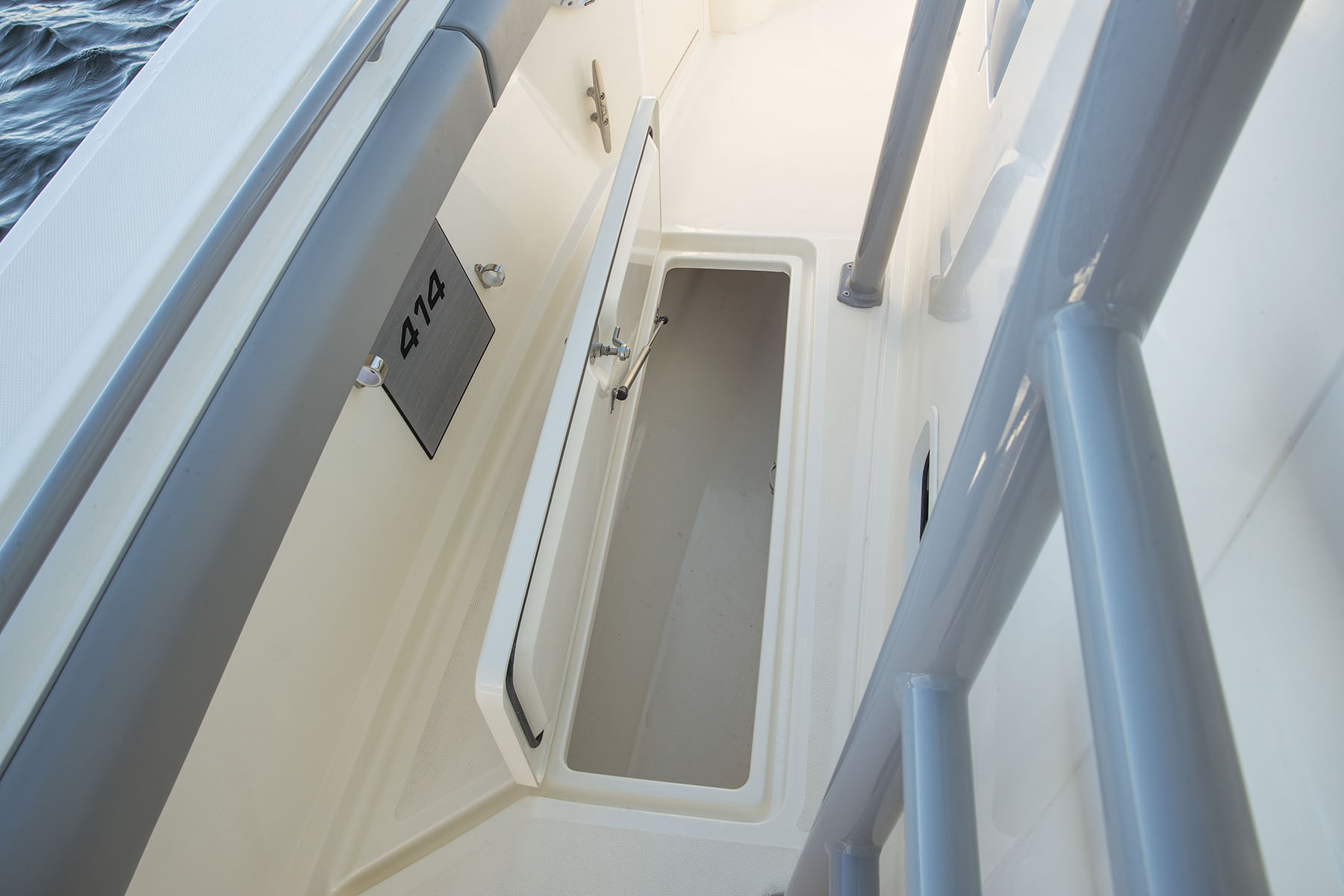

  • 2 port & 2 starboard midship tilt-out, lockable storage

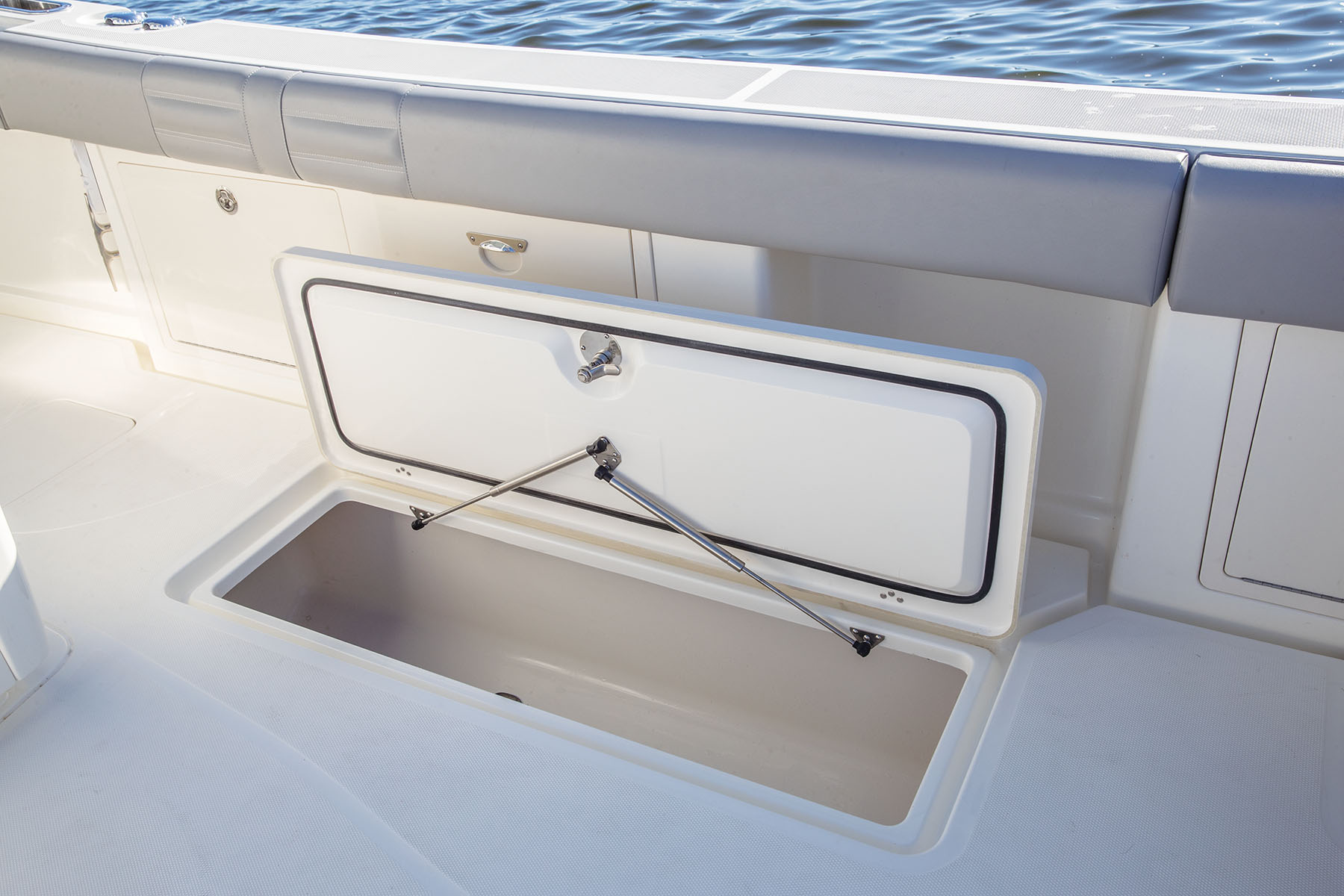

  • 455-qt. (430.59 L) port & starboard midship in-deck storage compartments
  • Tuna/dive/boarding door w/hinged gate
  • 511-qt. (483.59 L) insulated aft port & starboard in-deck fishboxes w/Gulper macerators & overboard discharge

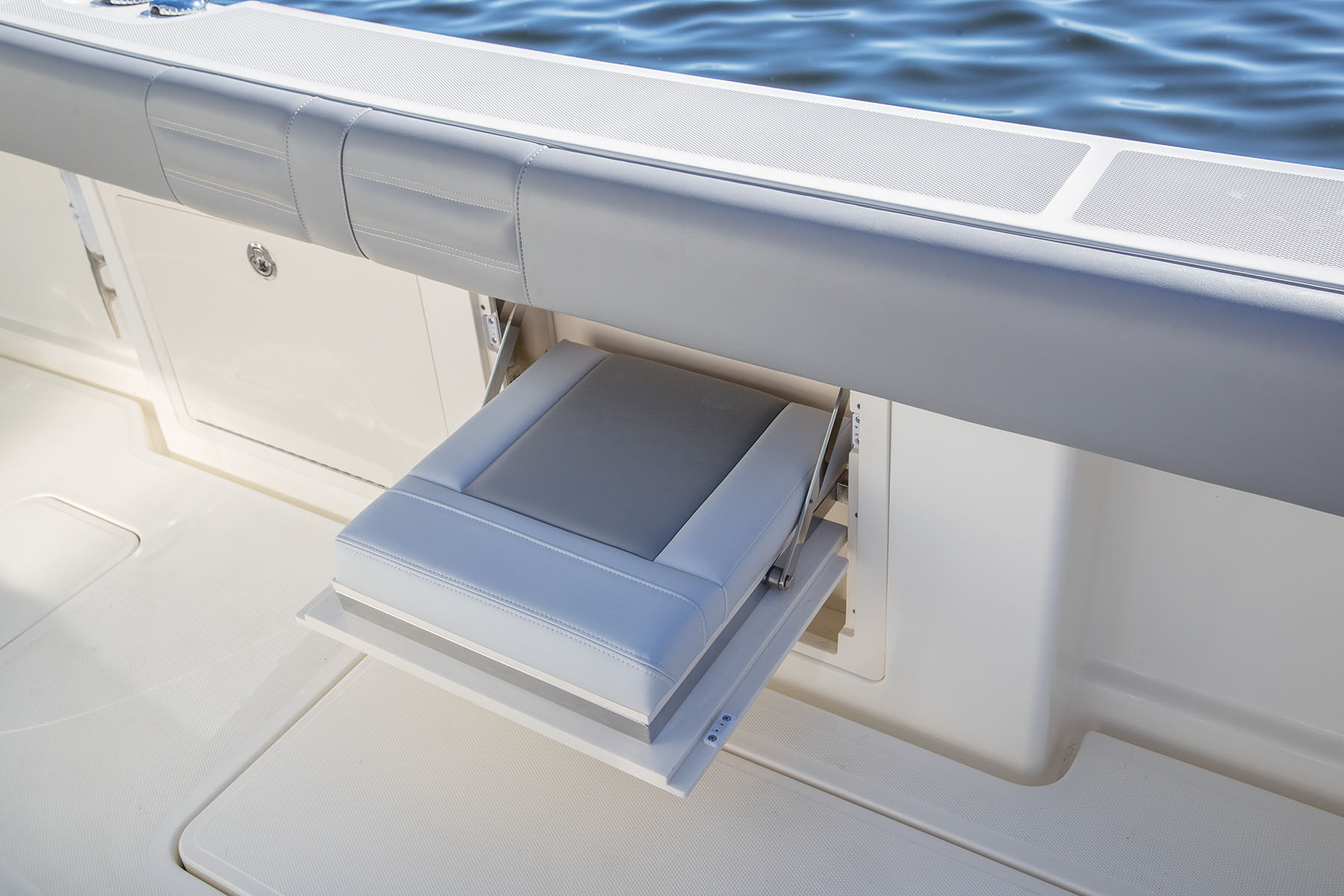

  • 21"-wide (53.34 cm) flush-folding, in-gunnel aft port & starboard bench seats

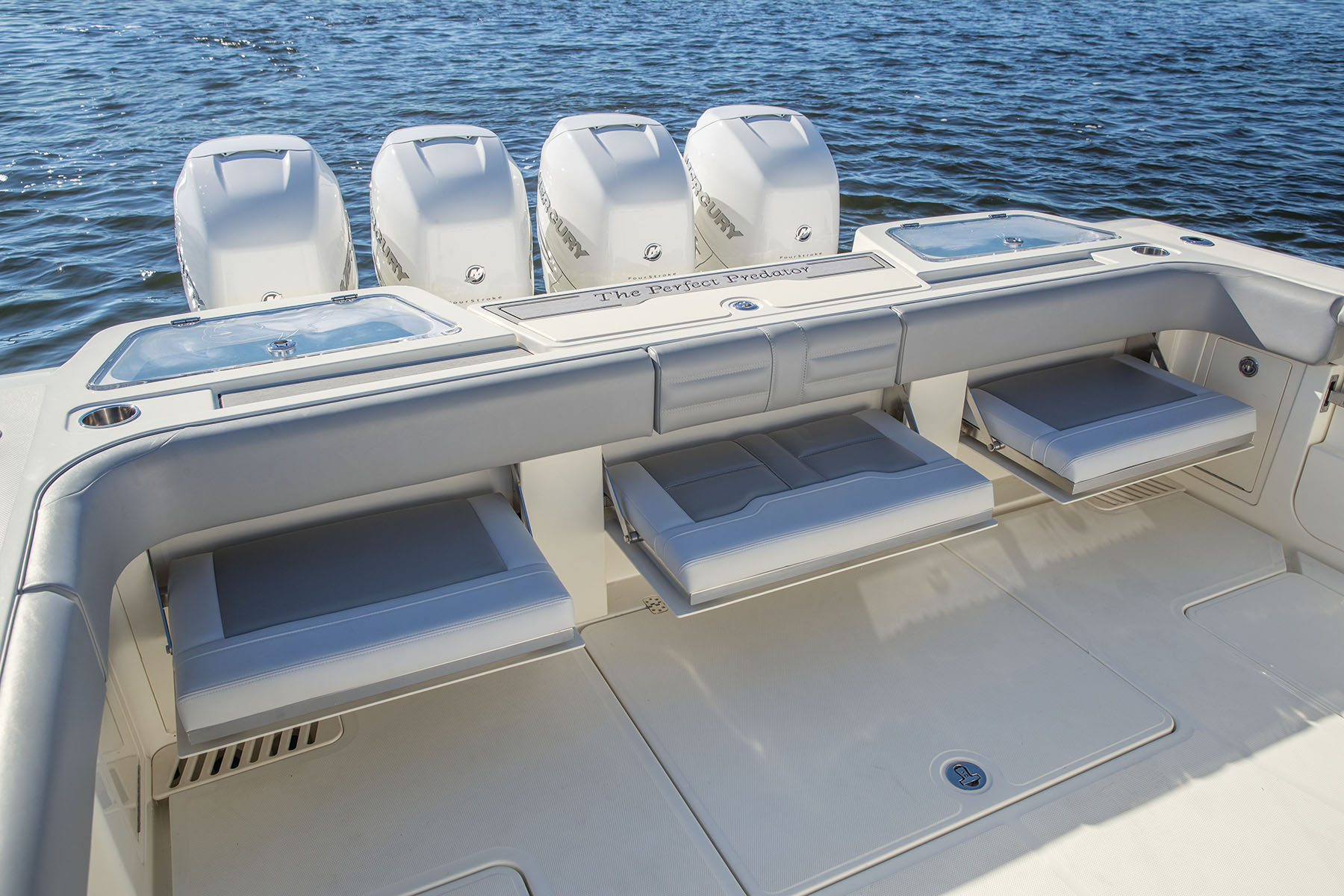

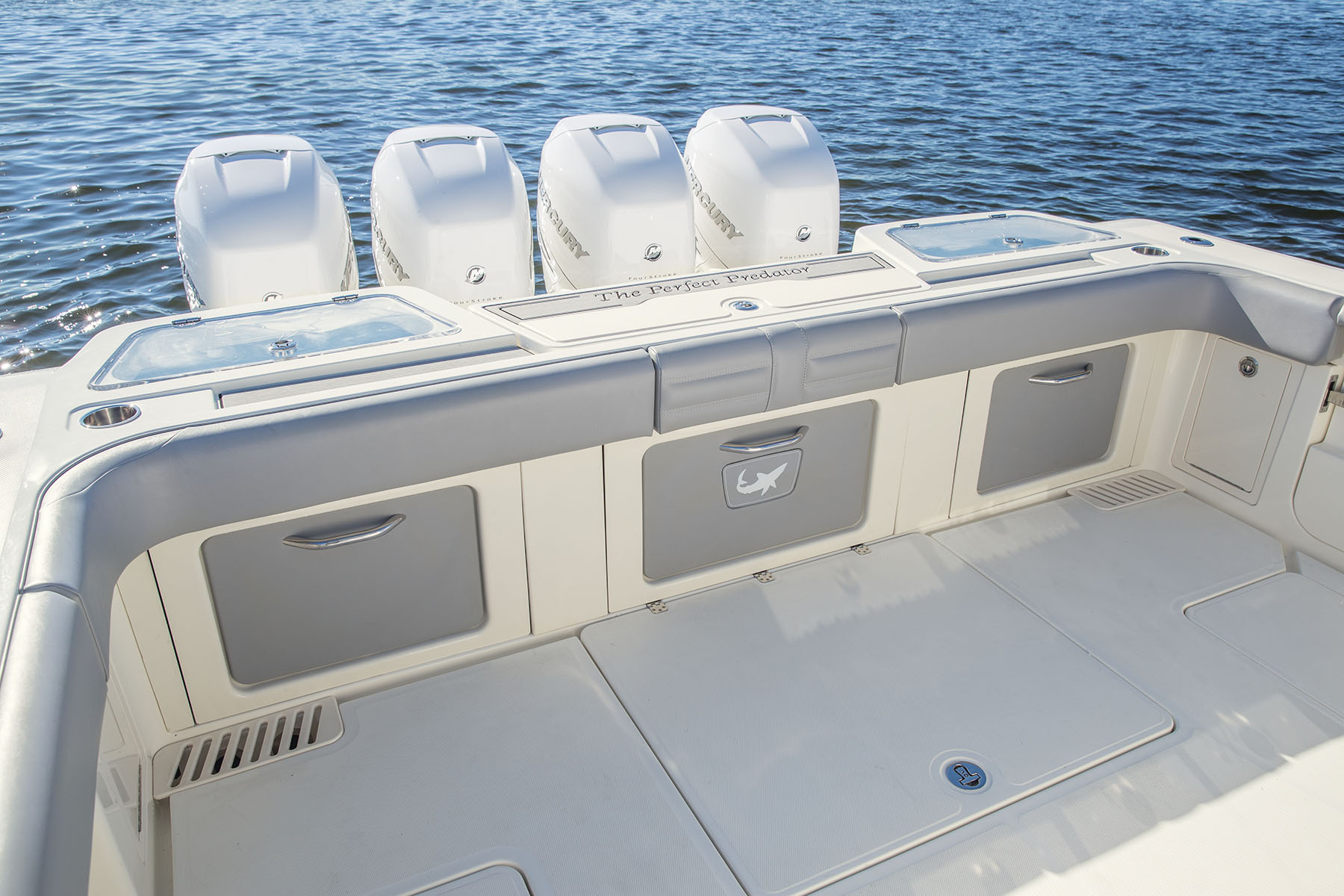

  • 32"-wide (81.28 cm) flush-folding, cushioned port & starboard corner transom seats
  • 36"-wide (91.44 cm) flush-folding, cushioned center transom seat

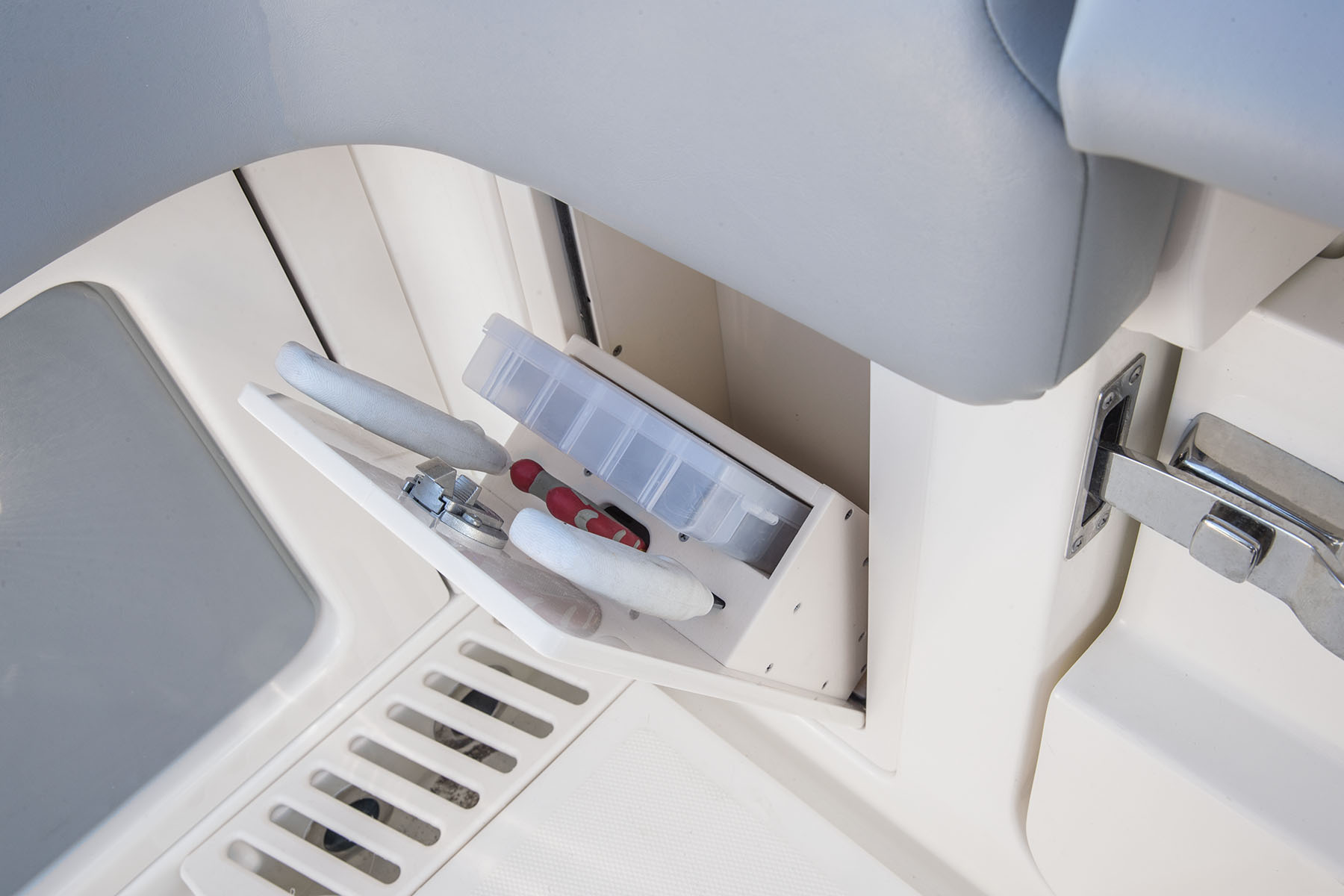

  • Aft port tilt-out, lockable storage w/Boga-Grip holder, needle nose plier holder, 12" (30.48 cm) filet knife holder & tackle tray holder
  • Aft starboard tilt-out, lockable storage w/leader holder & plier holder

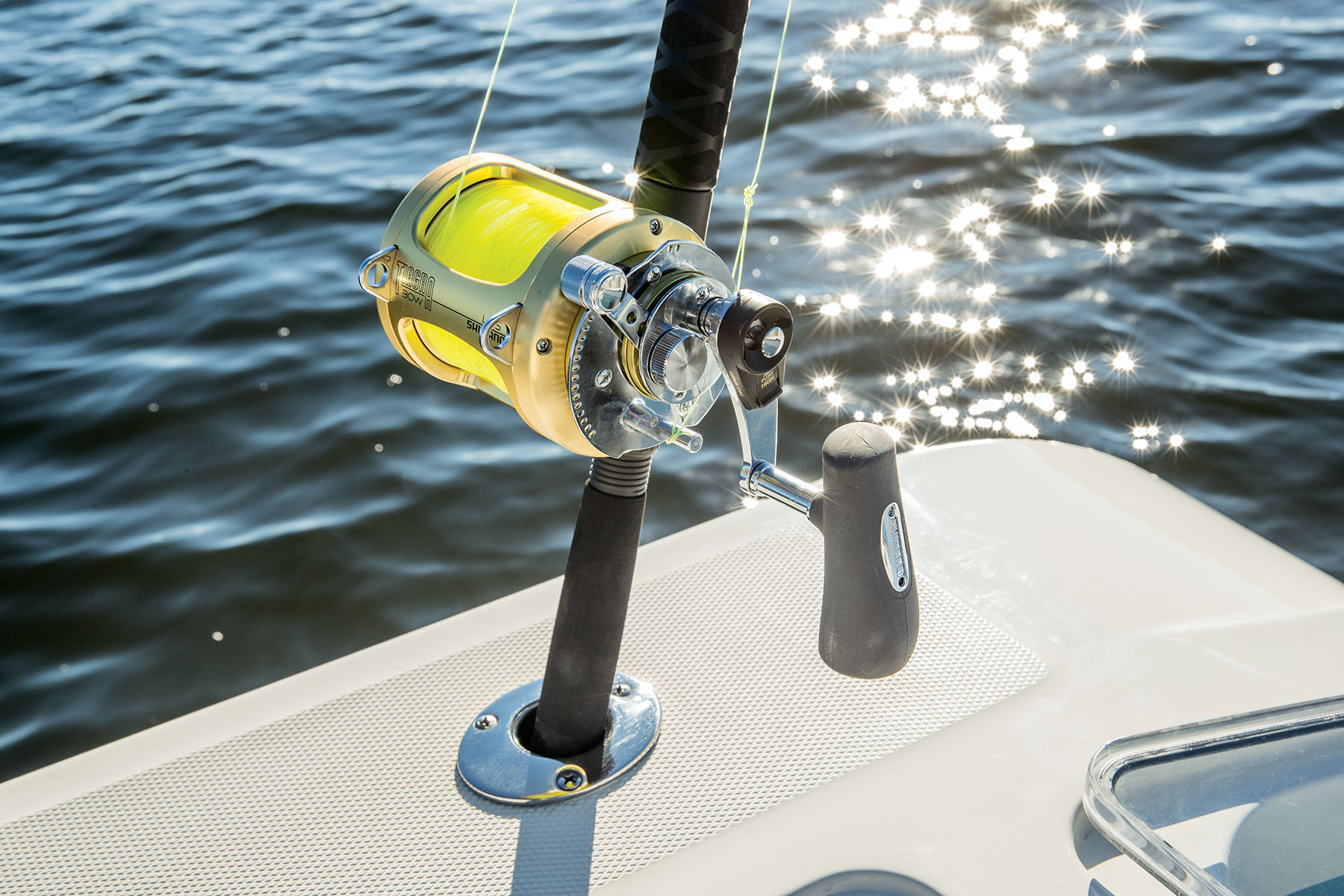

  • 1 port & 1 starboard gunnel-mounted aft trolling rod holders

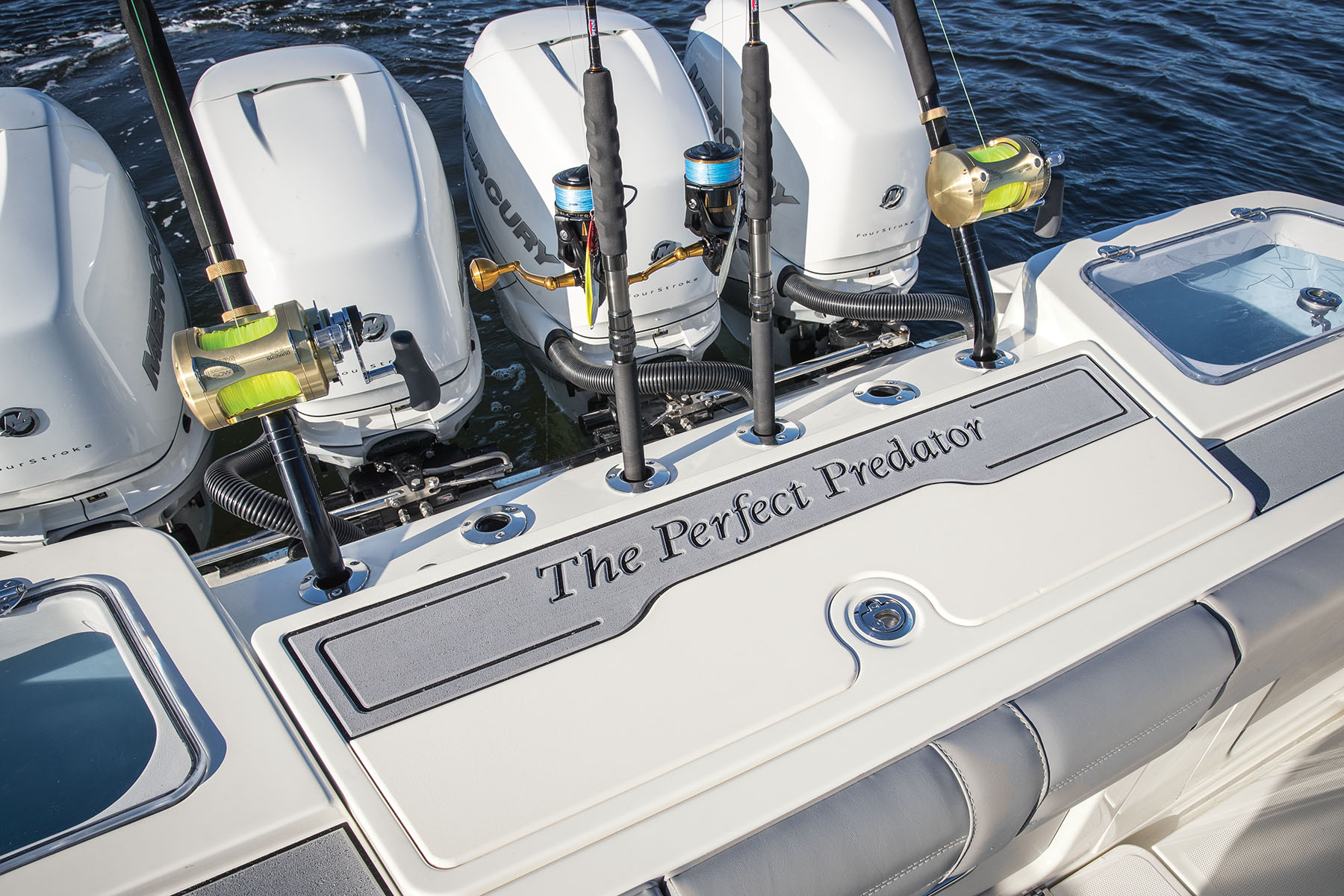

  • 6 transom-mounted rod holders

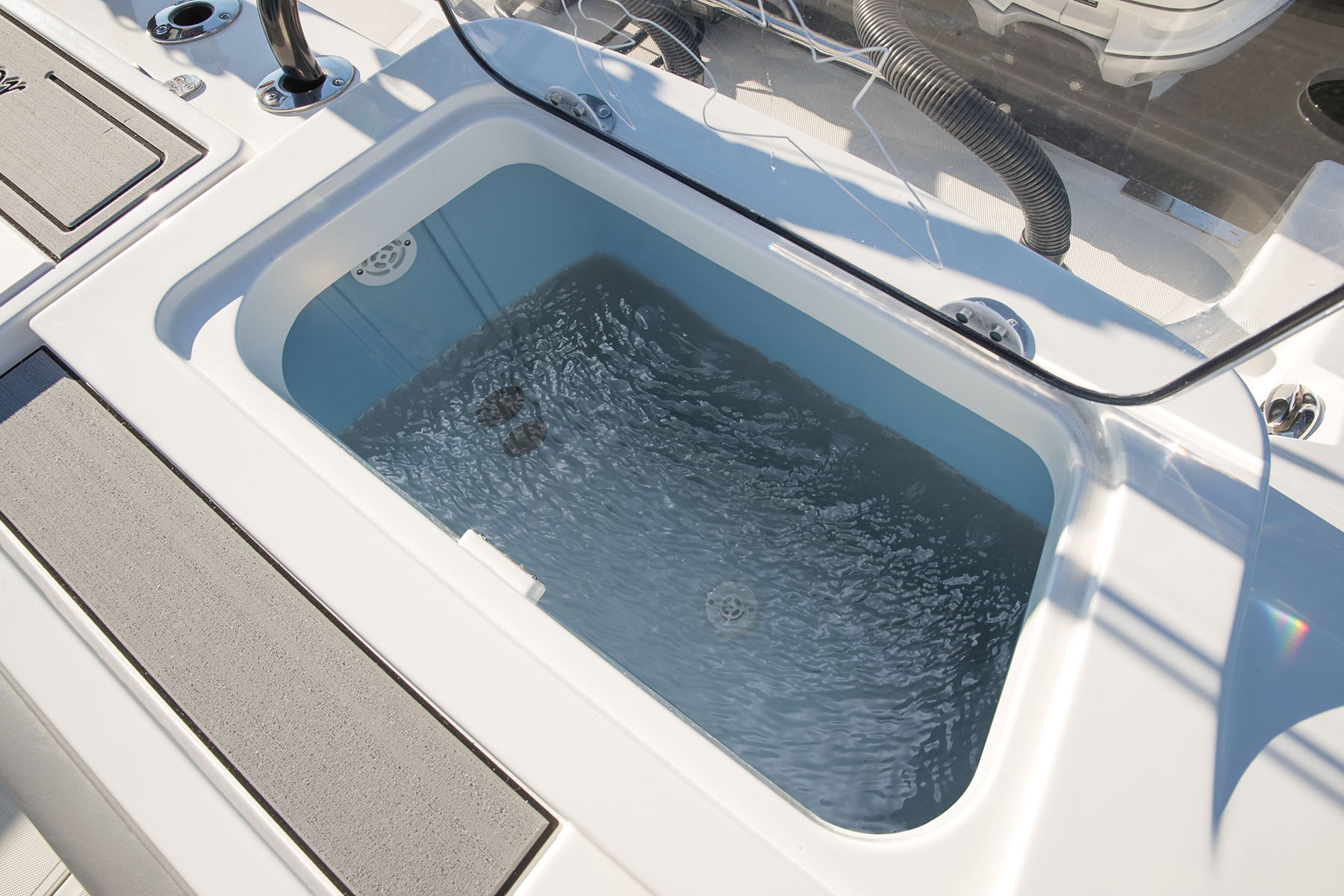

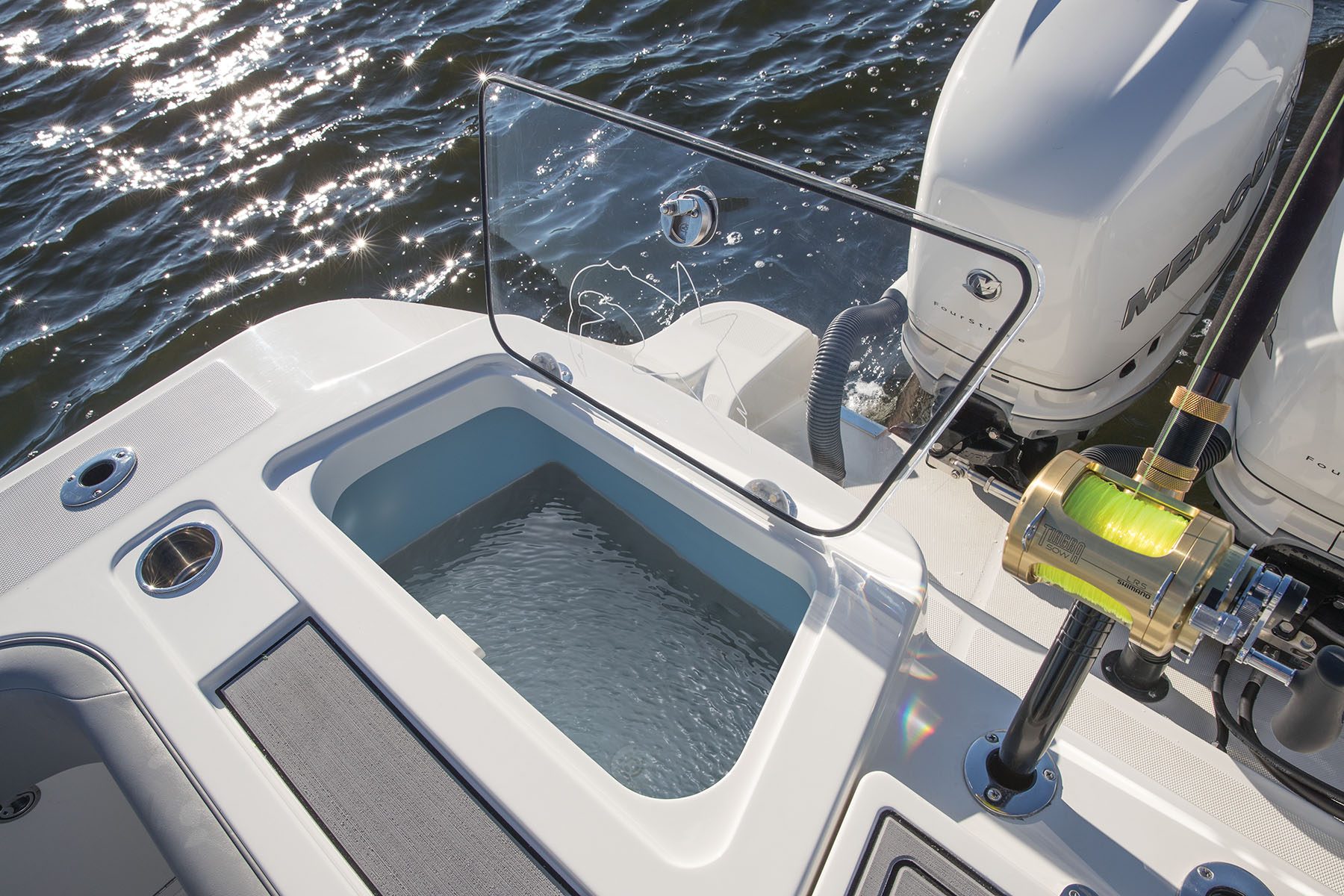

  • 2 aft 50-gal. (189.27 L) rounded livewells w/brass seacocks, angled fills & friction-hinged acrylic lids
  • Aft center cutting board
  • In-transom, natural bait prep/storage box
  • Molded non-skid surfaces throughout

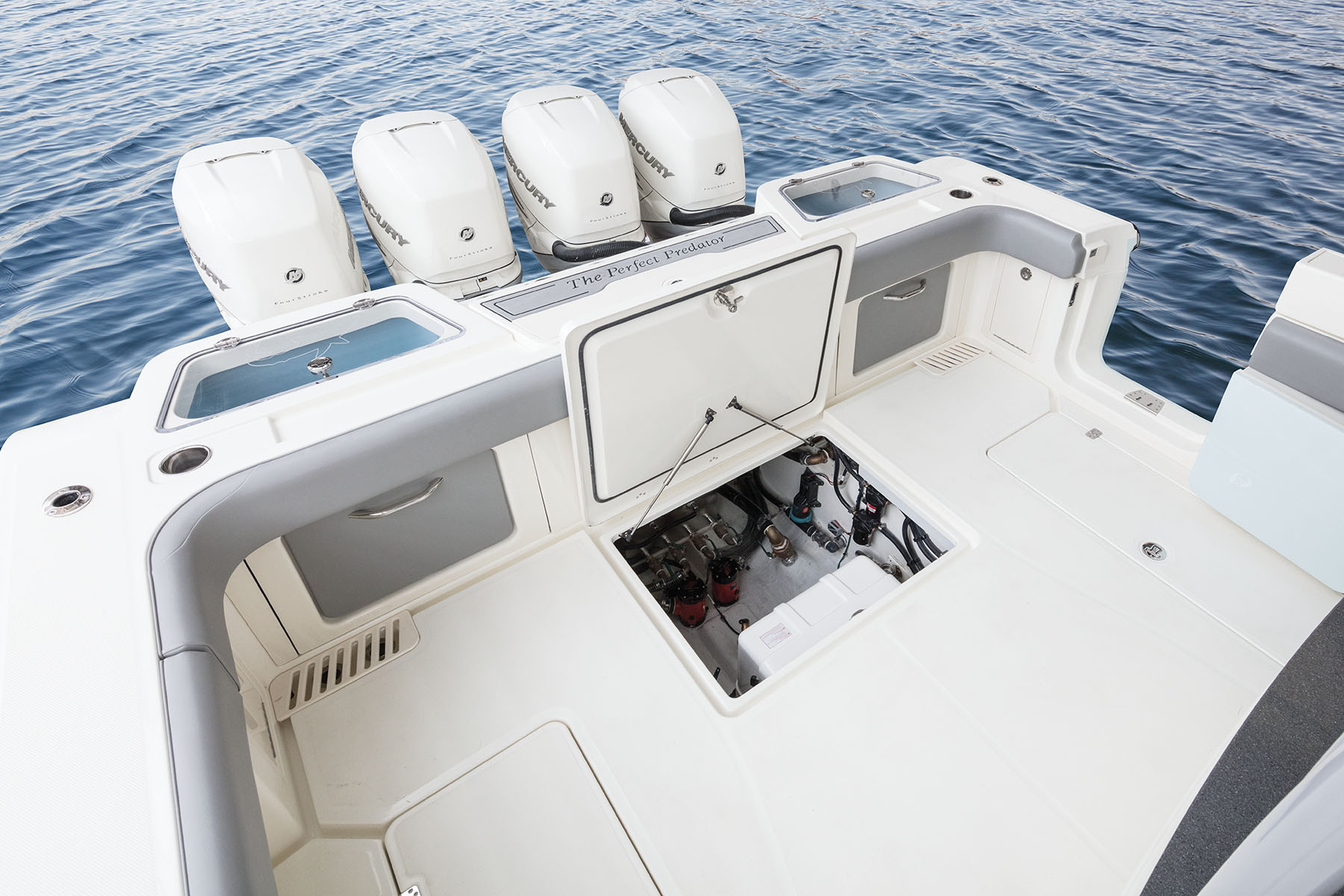

  • Large lazarette/bilge access hatch
  • Full-length, high density, drained 360° coaming bolsters

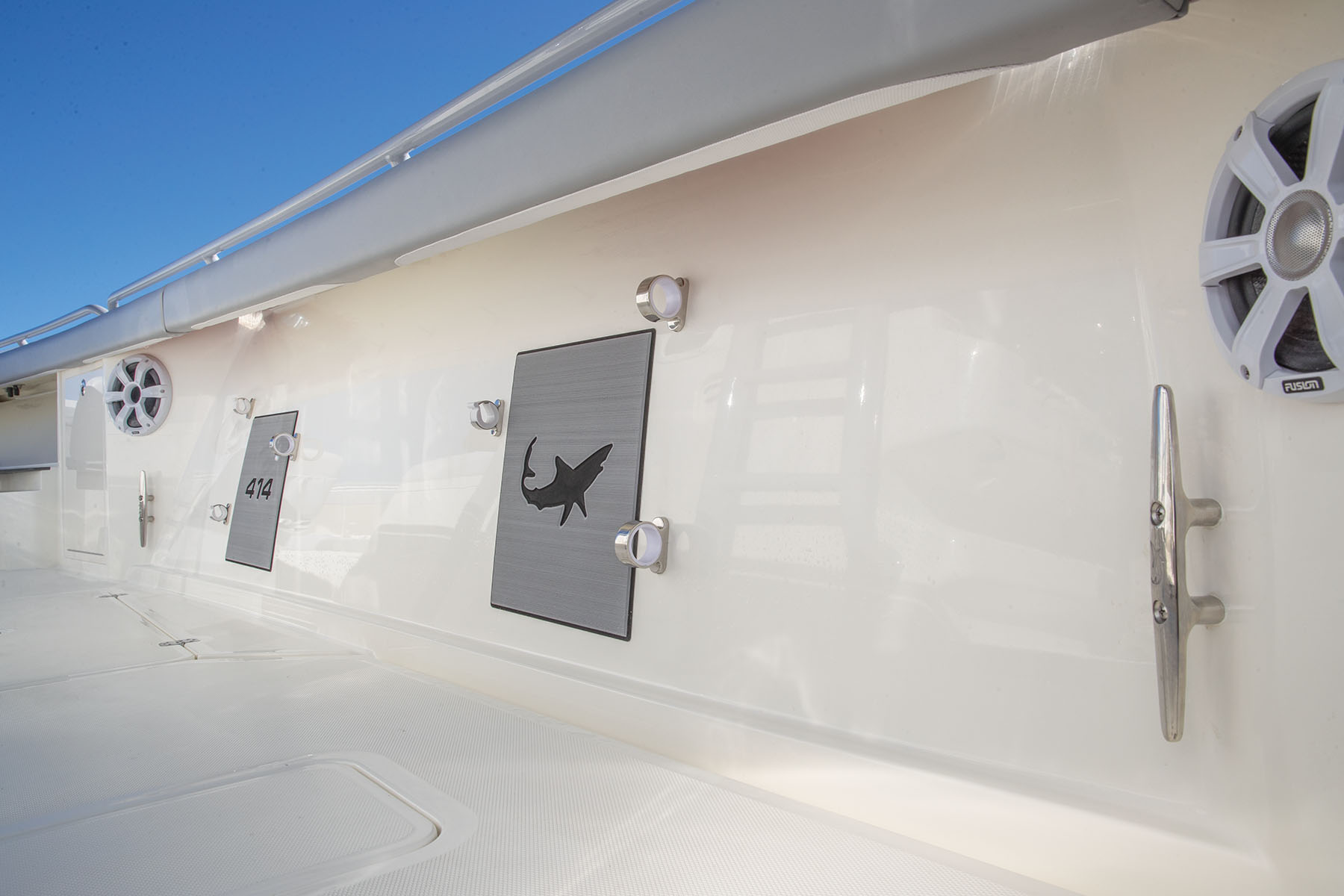

  • Four 8" (20.32 cm) stainless steel, anti-rattle pop-up cleats

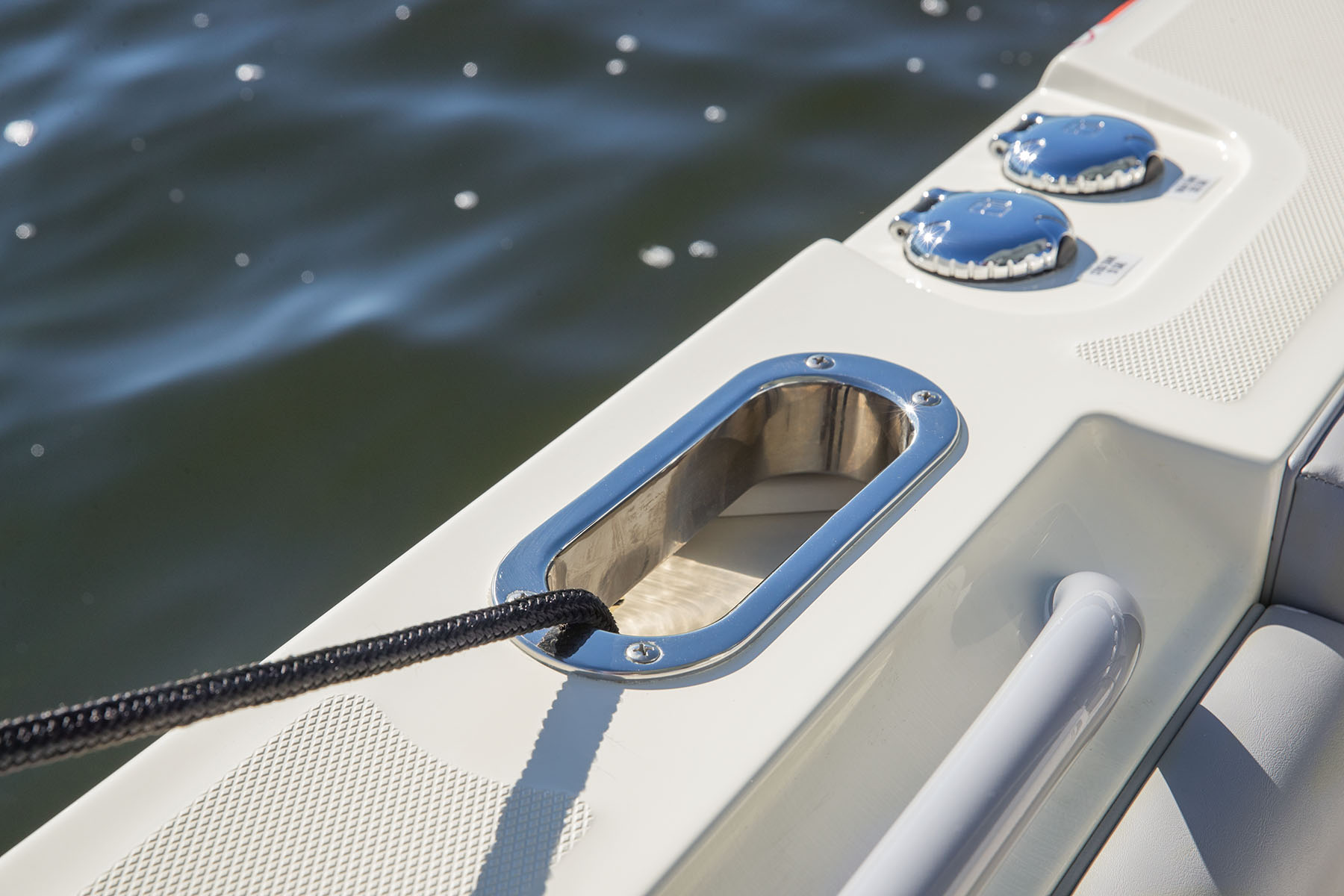

  • Four 10" (25.4 cm) stainless steel, vertical cleats below deck w/access via hawse pipes
  • 4 bow deck drink holders
  • 2 aft deck drink holders
  • Legendary dry-riding MAKO® hull
  • Aggressive deep V hull design
  • Set-back transom delivers undisturbed water to the props
  • Performance lifting strakes
  • Recessed, custom, twin-piston activated trim tabs
  • Factory-matched stainless steel propellers
Construction & Exterior

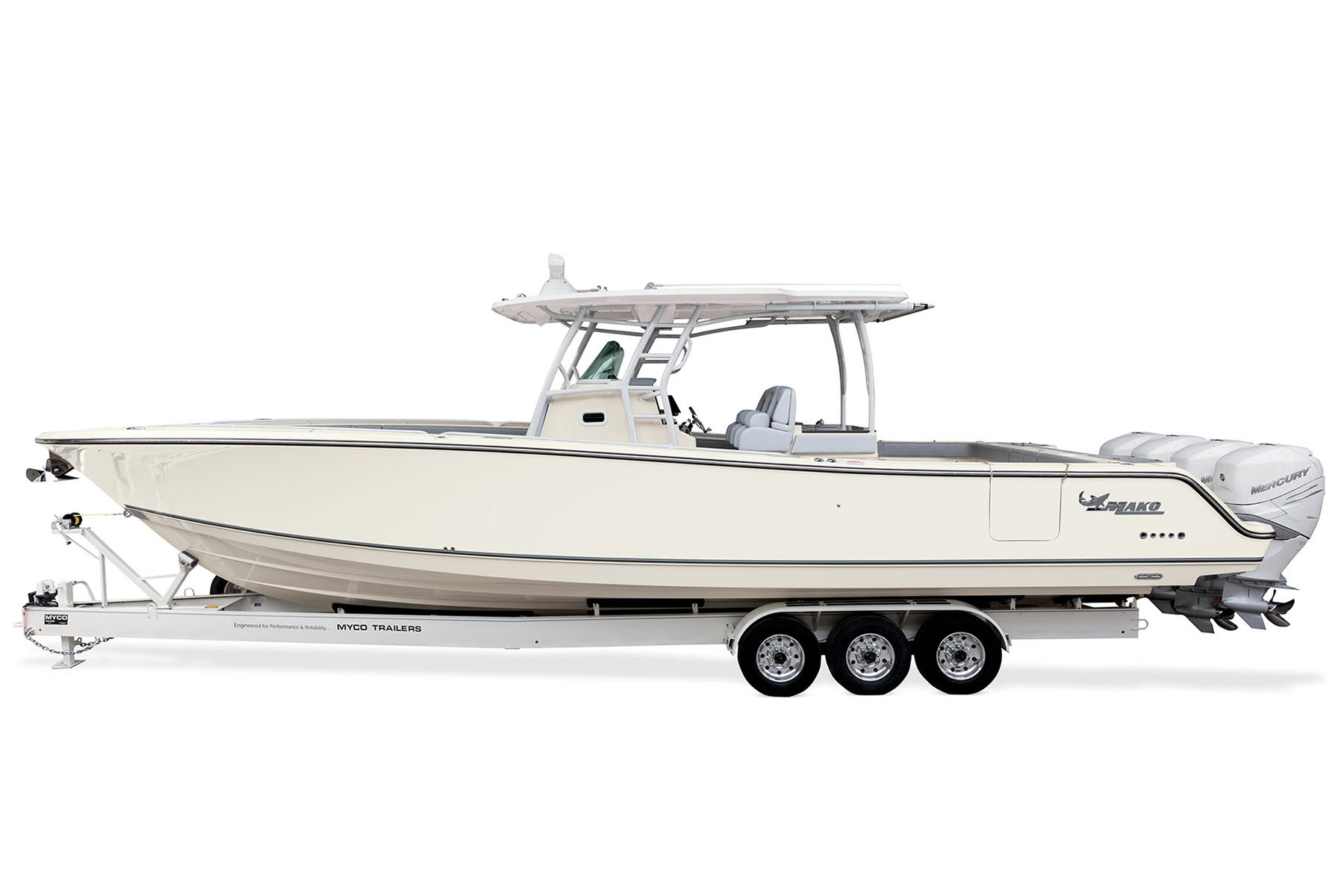

  • Color: MAKO® Bone White gelcoat
  • Ring deck design for more usable interior space
  • 100% composite construction
  • Coosa® Bluewater 100% composite transom core
  • Heavy-duty, 5" (12.7 cm) fiberglass-encapsulated transom w/3" (7.62 cm) fiberglass-impregnated, high-density composite core
  • Hull/deck joint chemically sealed & bonded 360° & mechanically fastened every 6" (15.24 cm) w/316 stainless steel fasteners
  • 1-piece molded fiberglass stringer grid w/integrated transom knee supports & gelcoat finish
  • Closed-cell foam-injected stringer grid for USCG-approved flotation
  • Vinyl ester barrier coat
  • Heavy-duty rub rail w/stainless steel insert
  • Premium marine-grade stainless steel hardware & fasteners for corrosion resistance
  • Heavy duty extra thick, closed-molded hatch covers w/finished undersides & integrated gaskets
  • Aluminum backing plates for cleats & chocks

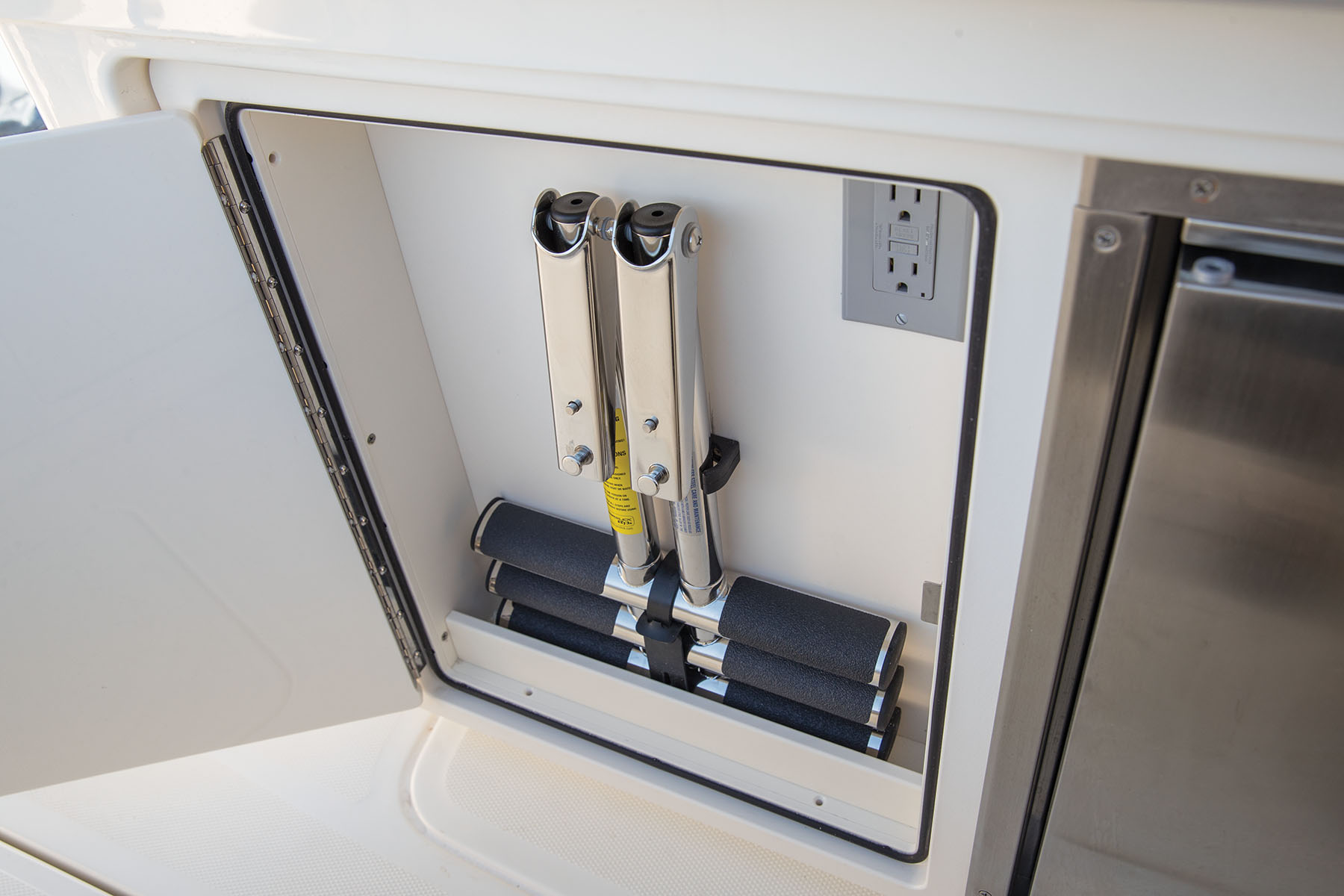

  • 3-step, stowable dive ladder
  • Recessed, pull-out, telescoping boarding ladder
Electrical, Mechanical & Plumbing Systems
  • Aluminum main fuel tank w/4 baffles

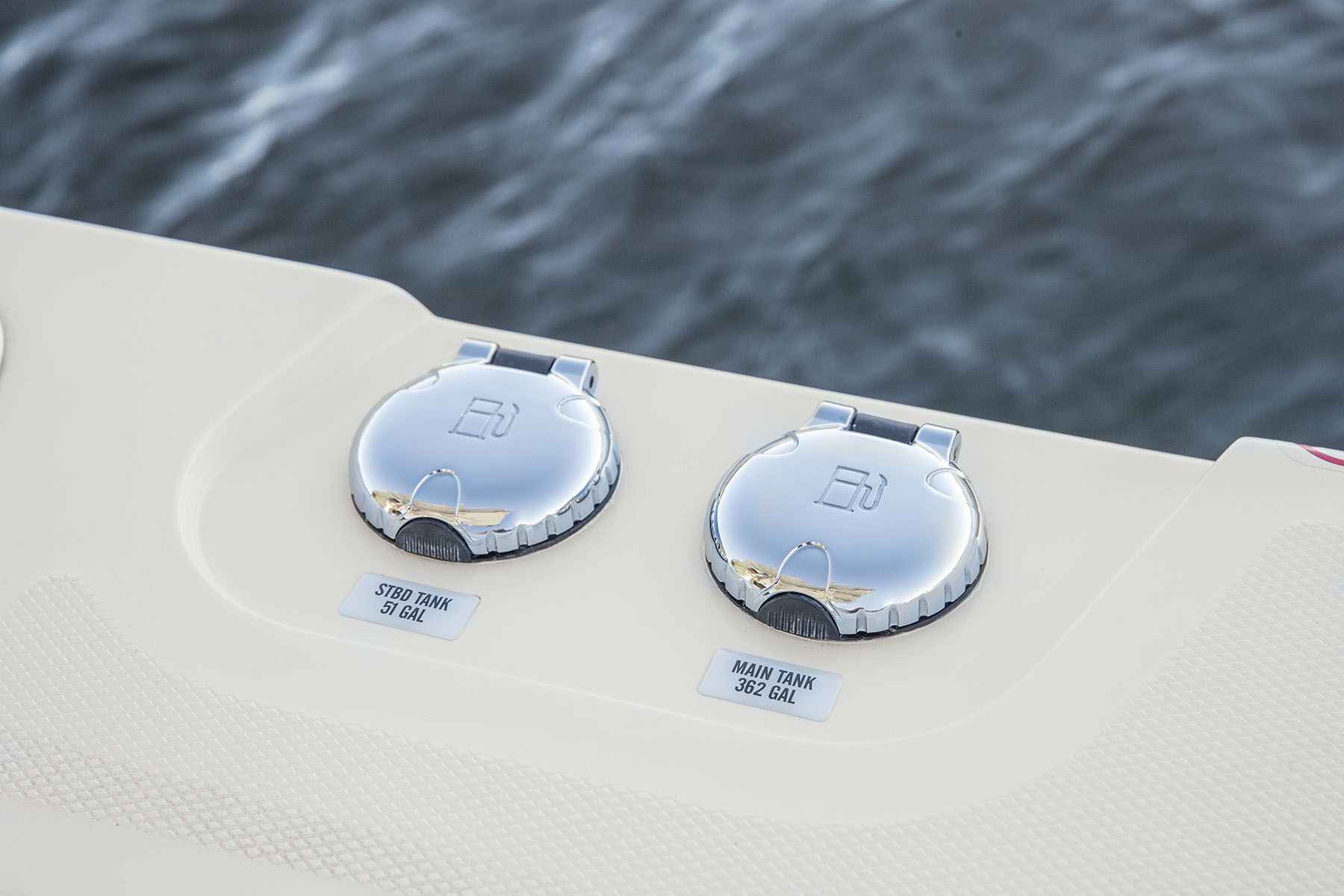

  • 464-gal. (1,756.43 L) main fuel tank
  • Two 51-gal. (193.06 L) auxiliary saddle fuel tanks w/transfer pumps
  • CZone™-controlled fuel transfer pumps w/manual bypass valves

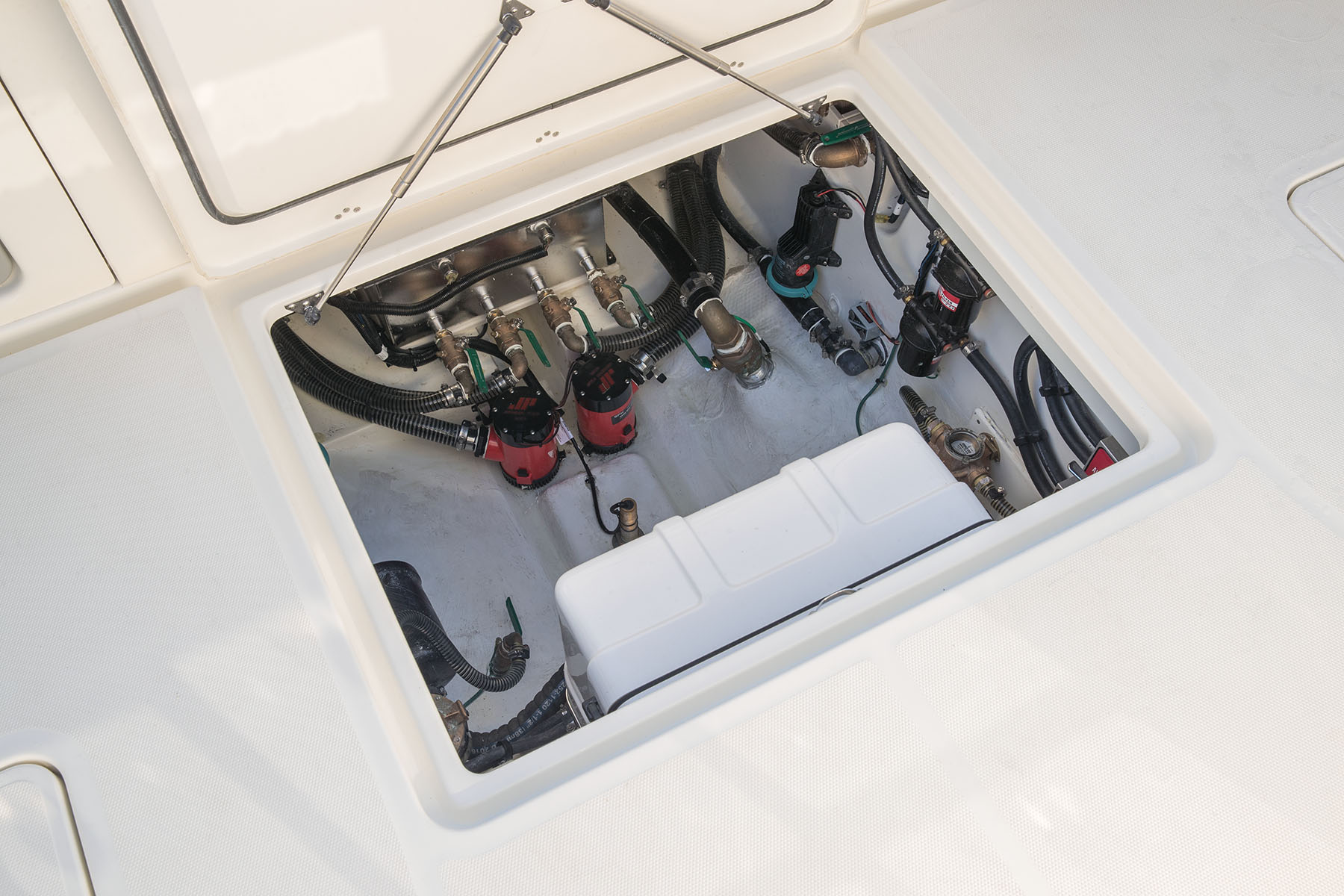

  • Electroplated Sea Chest keeps 4 pumps submerged for cooler running & longer life
  • Forward 1,000 GPH (3,785.41 LPH) bilge pump w/auto float
  • Two 4,000 GPH (15,141.65 LPH) aft bilge pumps w/auto float
  • Fore & aft high-water bilge alarms
  • Two 2,000 GPH (7,570.82 LPH) submerged auxiliary livewell pumps
  • Two 2,000 GPH (7,570.82 LPH) submerged livewell pumps
  • Pressurized raw water washdown pump
  • High-speed raw water intake molded into hull bottom
  • Pressurized freshwater pump
  • 50-gal. (189.27 L) CZone™-monitored freshwater tank
  • 1 Gulper macerator pump per cockpit floor fishbox
  • Forward sump box w/800 GPH (3,028.33 LPH) gray water pump w/auto float
  • 22-gal. (83.28 L) CZone™-monitored, coated waste tank
  • USCG-compliant navigation lights
  • Fore-, mid- & aft-facing White/Blue LED spreader lights in the hardtop
  • Blue, diffused LED lighting under gunnels
  • Automatic, dimmable threshold lights
  • 240V, 60-amp shore power
  • 1 cranking battery per outboard
  • 2 house batteries
  • 2 Marinco® Charge Master battery chargers—constantly on w/power supply (shore or Genset power)
  • Thru-hull bonding harness for below-water corrosion resistance
  • Brass seacocks on all below-water thru-hull fittings
  • Labeled, tinned-copper wiring for easy maintenance & protection in a marine environment
  • Wiring access hatches, battery switch panel & battery access inside head
Optional Trailer

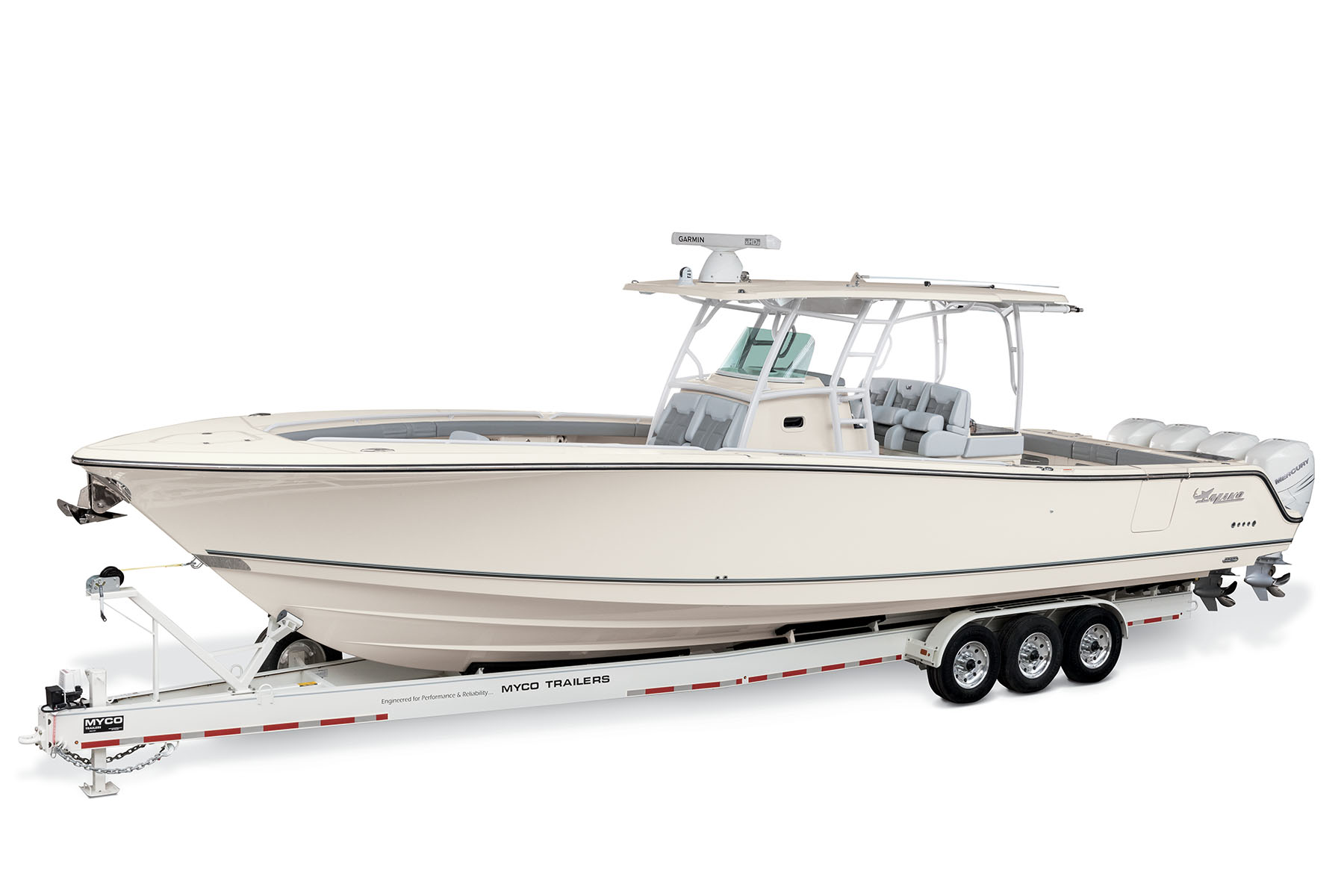

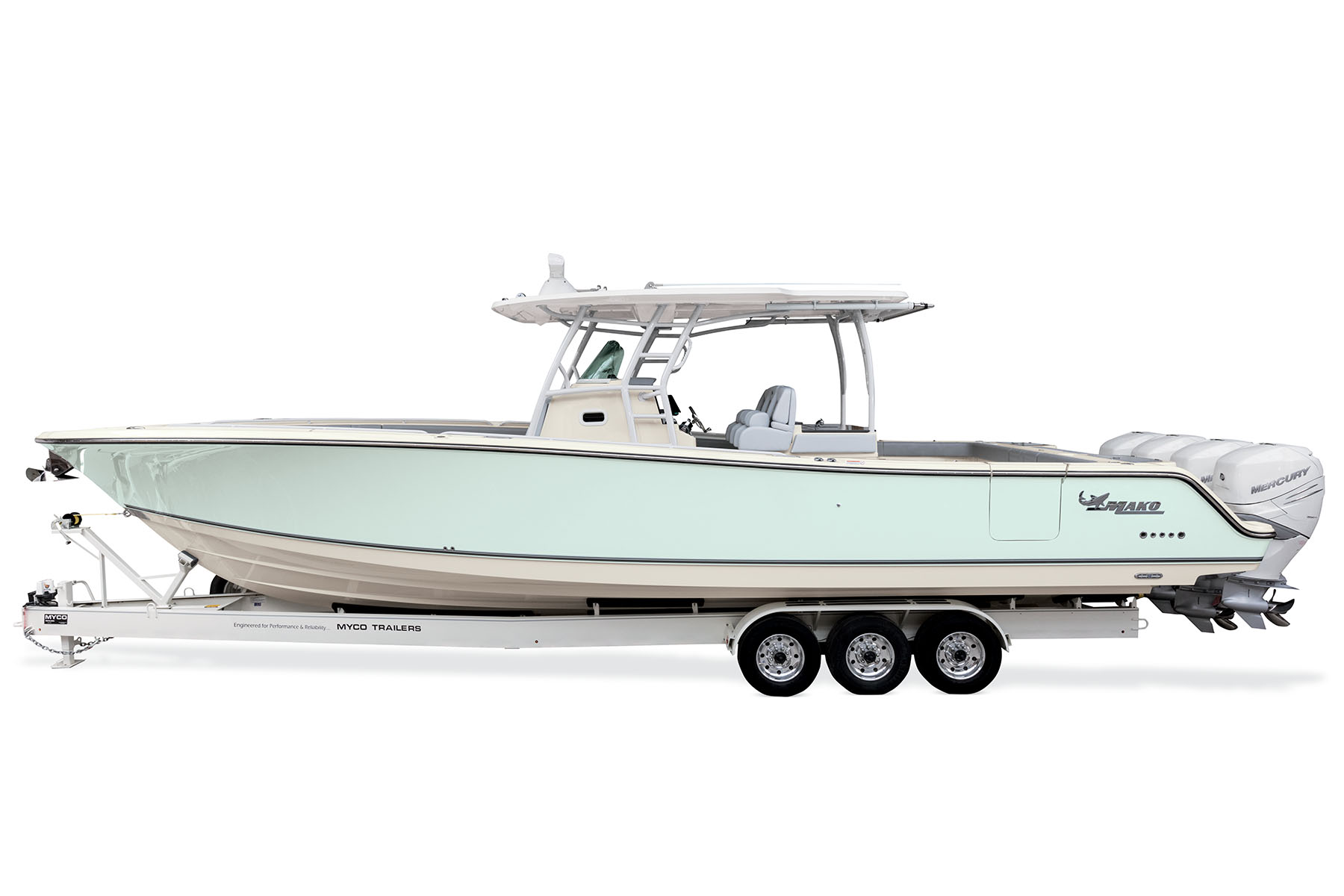

  • OPTIONAL triple-axle MYCO galvanized & painted trailer w/electric hydraulic disc brake available.
