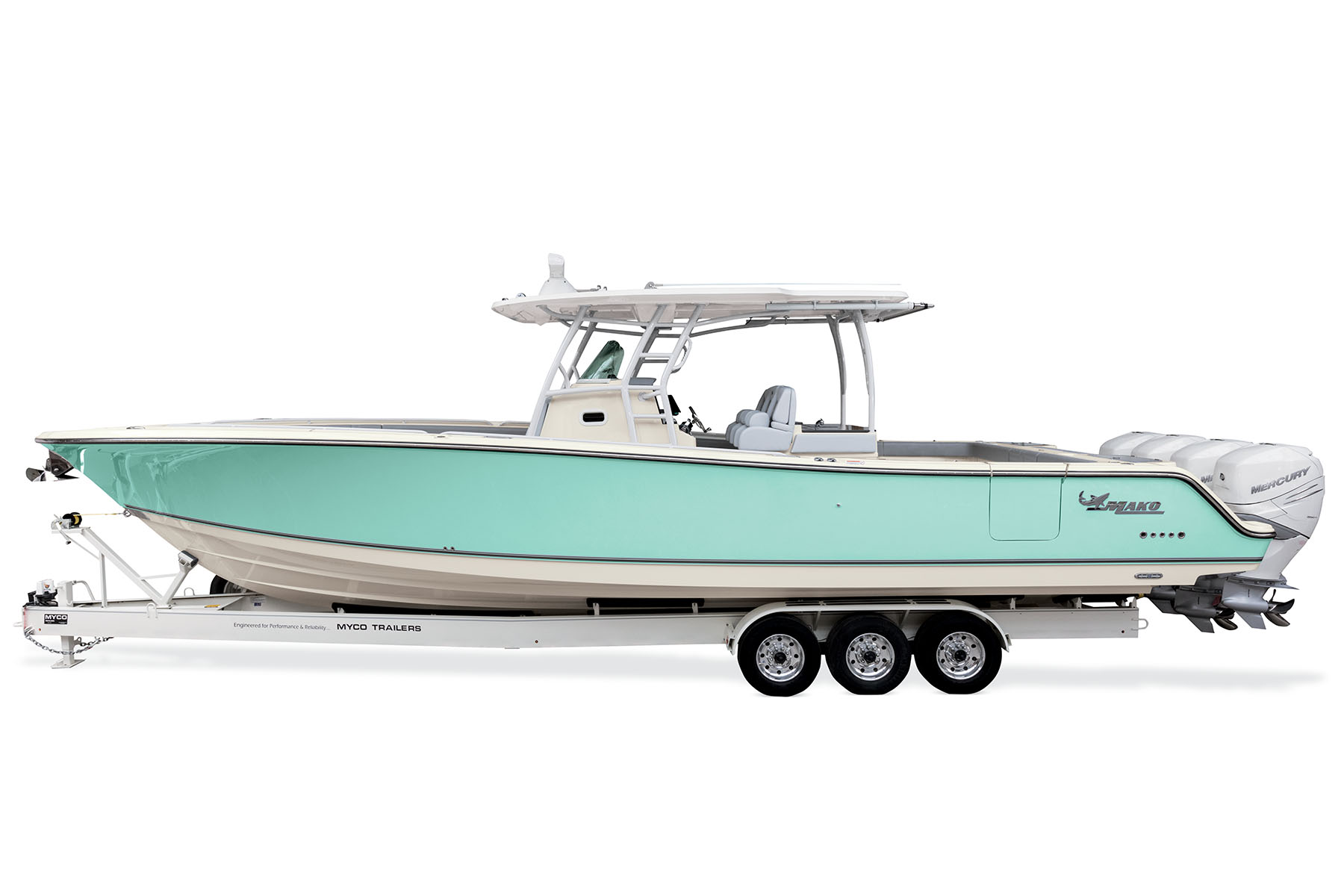

2019 414 CC Family Edition
2019
414 CC Family Edition
w/ Quad Mercury® 350 XXL Verado® Phantom Black Bluewater Family Edition
Price Excludes Optional Trailer
| View Price w/ Prep & Freight: | Select Dealer |
|
NO HAGGLE NO HASSLE® National Price
Base Price
|
$568245
USD
|
Overview
The MAKO® 414 CC is the largest, most powerful and most comfortable boat in the 50-plus-year history of MAKO. With beautiful fit and finish, premium fishing features and state-of-the-art technology, the 414 CC is ready to safely take you and your crew to the horizon and back for an unparalleled family adventure or the fishing trip of a lifetime.
Available in Standard, Family Edition and Sportfish Edition, the MAKO 414 CC is the ultimate offshore fishing and family recreational boat—and it’s backed by MAKO Assurance 5+Life—the best factory warranty in saltwater boats.
Specifications
| Length | 12.5 m | 41' |
| Beam | 3.63 m | 11' 11'' |
| Bottom width | 3.22 m | 10' 6.75'' |
| Max. Recommended HP | 1675 HP | |
| Fuel Capacity | 1756.24 L | 464 gal. |
| Interior depth | 93.98 cm | 37'' |
| Transom height at center line | 86.36 cm | 34'' |
| Deadrise | 24 degrees | |
| Draft | 60.96 cm | 24'' |
| Dry weight | 7956.01 kg | 17540 lbs. |
| Average hull weight | 6803.89 kg | 15000 lbs. |
| Average package weight | 10432.62 kg | 23000 lbs. |
| Package height w/hardtop | 4.06 m | 13' 4'' |
| Storage Length | 14.02 m | 46' |
Motor Options
| AVAILABLE MOTOR | ESTIMATED SPEEDS | PACKAGE PRICE | VIEW PRICE W/ PREP & FREIGHT | ||
|---|---|---|---|---|---|
| Bluewater Family Edition | |||||
| Quad Mercury® 350 XXL Verado® Phantom Black | - |
$568245 USD
|
Select Dealer | ||
| Quad Mercury® 350 XXL Verado® Warm Fusion White | - |
$574145 USD
|
Select Dealer | ||
| Quad Mercury® 350 XXL Verado® Phantom Black w/Joystick Piloting | - |
$586400 USD
|
Select Dealer | ||
| Quad Mercury® 350 XXL Verado® Warm Fusion White w/Joystick Piloting | - |
$592995 USD
|
Select Dealer | ||
Features
Family Edition
- See Motors tab for pricing
- Deluxe hardtop w/6’ (1.83 m) SureShade® automatic deploy/retract aft deck shade
- SharkTooth remote monitoring app for iOS & Android
- Kenyon® dual-burner electric hot plate w/PUPS™ (Pop Up Potholder System)
- Dometic® 12V 1.6cu refrigerator
- 8kW Fischer Panda® Genset w/24-gal. (90.85 L) diesel fuel tank
- Head & cockpit air conditioning
- 120V AC hot freshwater heater
- IRIS295v2 NightRunner 2 infrared camera on forward hardtop w/helm waterproof joystick controller
- Shadow-Caster® underwater light package w/8 SCM-10 Blue LED lights
- Port & starboard bow seating w/cushions, stowable backrests & 59-qt. (55.83 L) gel-coated storage beneath
- Removable cushioned bow filler doubles as a raised table (stowable in bow in-deck compartment)
- Tempered safety glass windscreen w/an aluminum frame
- FUSION UD750 stereo w/6 Blue LED lighted speakers, 1,600W amp & two 10" (25.4 cm) subwoofers
- Electric head w/overboard drainage & holding tank
Certification & Safety
- Backed by MAKO® Assurance 5+Life—the best factory warranty in saltwater boats
- NMMA® yacht certified
- Factory leak tested for hull, plumbing & fitting integrity
- Premium stainless steel hardware & fasteners for corrosion resistance
- Dual-tone marine horn
- Flush-mounted Ritchie Navigation® Voyager compass
Console
- Garmin® 8617 MFD Package: 2 Garmin® 17" (43.18 cm) GPSMAP® 8617 MFD chartplotter/sonar combos, 2 Garmin® GSD 25 sounder modules, Garmin® GXM™ 51 w/side/downscan transducer, Garmin® VHF 300 Black box radar & Airmar B265 w/dual CHIRP transducer
- CZone™ digital switching w/comprehensive electrical-monitoring system
- Digital switching through multifunction displays
- Stainless steel tilt steering wheel w/knob
- Binnacle-mounted motor control(s)
- Available w/Mercury® JPO (Joystick Piloting for Outboards) w/Skyhook® auto-positioning GPS (at additional cost)
- Mercury® VesselView®
- Control pad for forward hardtop infrared camera
- Heavy-duty motorized mechanical switching system w/battery selectors & voltage sensing relays (VSR)
- Recessed ignition switches
- Illuminated electrical distribution panel w/digital volt meters
- Illuminated panel & elevator switches
- Mercury® diagnostic port
- Oversized cushioned forward-console lounge w/275-qt. (260.25 L) insulated, drained cooler
- Vinyl-covered console brow
- Integrated full-width fiberglass footrest w/non-skid surface
- Marine-grade tinned wiring w/submersible connectors
- 2 console drink holders
- 12V DC outlet & dual USB ports
Leaning Post
- Fiberglass leaning post
- Armrest
- Backrest
- Tackle storage
- 2 large, hinged top storage drawers
- 6 large, sliding storage drawers
- Stainless steel freshwater sink w/sprayer/pull-out shower
- Diffused LED courtesy light
- Overhead LED lighting
- Battery & charger access below leaning post
- 120V electrical outlet
- Trash bin
- 2 drink holders on leaning post
Top
- Outrigger-ready fiberglass hardtop
- .25" (.64 cm) in-deck aluminum backing-plate reinforcement for hardtop frame
- .25" (.64 cm) aluminum backing-plate reinforcement for hardtop
- White powder-coated tubular frame
- Integrated port-side ladder w/recessed cut-out for top access
- Non-skid hardtop surface
- 2 electronics boxes w/lockable stainless steel latches
Head
- Main distribution panel w/breakers to bypass digital functions
- Portlight in head door
- 5" (12.7 cm) CZone™ monitor
- Custom-molded freshwater sink w/Corian® top
- Hot water pull-out shower head
- Fold-down bunk/storage area w/removable cushions
- Dual overhead cabinet storage
- Tempered safety glass port lights for natural interior lighting
- Bunk reading light
- Gelcoated interior for ease of cleaning
- Wiring, breaker & battery access
- 120V GFCI plug outlet
Interior
- 35-lb. (15.88 kg) Delta® polished anchor & 600' (182.88 m) rode
- Lewmar® below deck, vertical free-fall windlass w/rode stowage locker
- 2-tone high-density marine-grade vinyl upholstery w/stain-resistant coating & composite substrates on seats
- 824-qt. (779.8 L) bow center in-deck storage compartment w/drain
- 3 across powered helm seating w/folding arm rests & flip-up bolsters
- Self-bailing cockpit w/gutters, oversized drains & transom valves
- 4" (10.16 cm) elevated helm platform w/threshold lights
- Port & starboard stainless steel, under-gunnel rod hangers w/reel protectors for 6 rods up to 9' (2.74 m) long
- 2 port & 2 starboard midship tilt-out, lockable storage
- 455-qt. (430.59 L) port & starboard midship in-deck storage compartments
- Tuna/dive/boarding door w/hinged gate
- 511-qt. (483.59 L) insulated port & starboard aft in-deck fishboxes w/Gulper macerators & overboard discharge
- 21"-wide (53.34 cm) flush-folding, in-gunnel aft port & starboard bench seats
- 32"-wide (81.28 cm) flush-folding, cushioned port & starboard corner transom seats
- 36"-wide (91.44 cm) flush-folding, cushioned center transom seat
- Aft port tilt-out, lockable storage w/Boga-Grip holder, needle nose plier holder, 12" (30.48 cm) filet knife holder & tackle tray holder
- Aft starboard tilt-out, lockable storage w/leader holder & plier holder
- 1 port & 1 starboard gunnel-mounted aft trolling rod holders
- 6 transom-mounted rod holders
- 2 aft 50-gal. (189.27 L) rounded baitwells w/brass seacocks, angled fills & friction-hinged acrylic lids
- Aft center cutting board
- In-transom, natural bait prep/storage box
- Molded non-skid surfaces throughout
- Large lazarette/bilge access hatch
- Full-length, high density, drained 360° coaming bolsters
- Four 8" (20.32 cm) stainless steel, anti-rattle pop-up cleats
- Four 10" (25.4 cm) stainless steel, vertical cleats below deck w/access via hawse pipes
- 4 bow deck drink holders
- 2 aft deck drink holders
Performance
- Legendary dry-riding MAKO® hull
- 24°-deadrise aggressive Deep V hull design
- Set-back transom delivers undisturbed water to the props
- Performance lifting strakes
- Recessed, custom, twin-piston activated trim tabs
- Factory-matched stainless steel propellers
Construction & Exterior

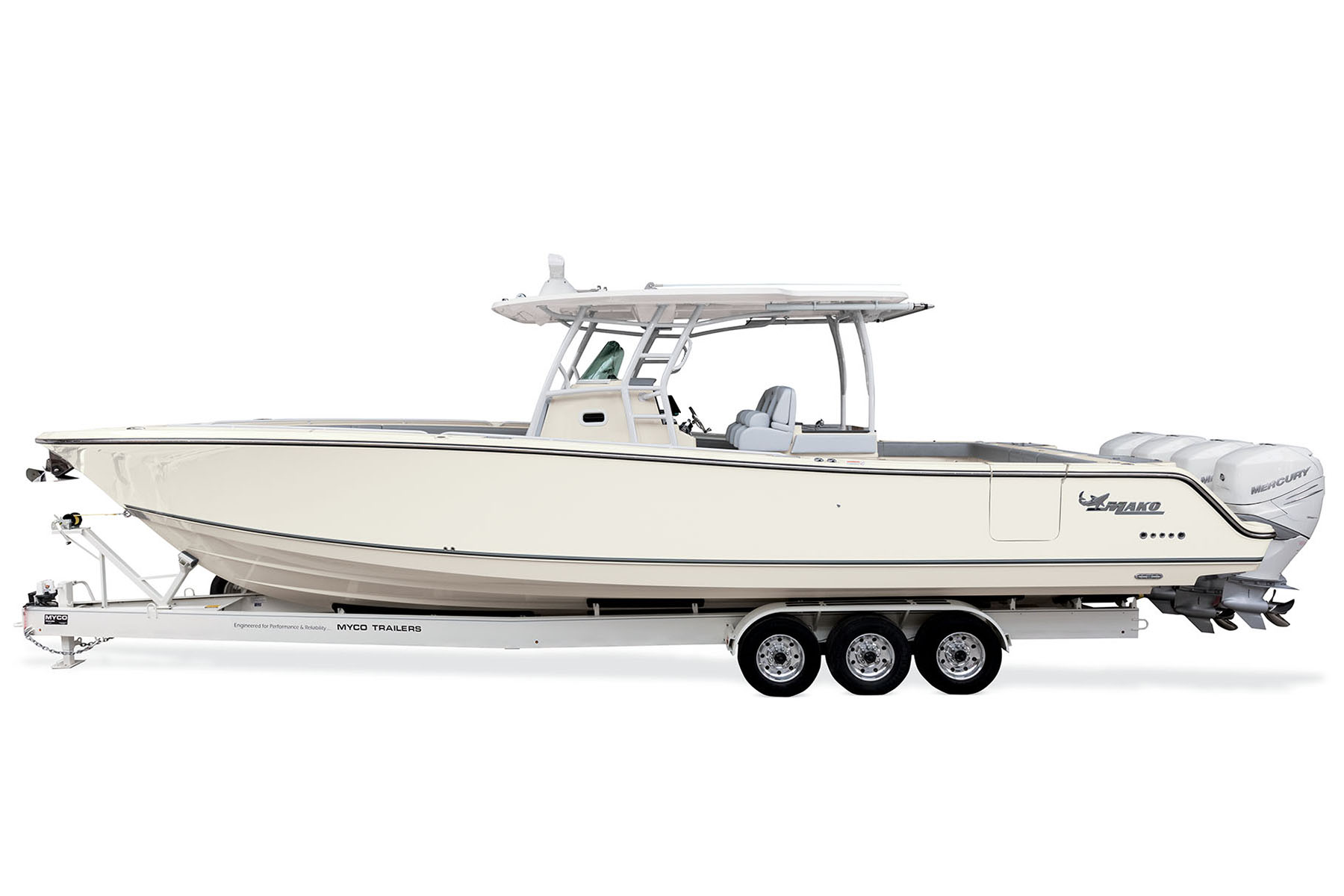

- Color: MAKO® Bone White gelcoat
- 100% composite construction
- Coosa® Bluewater 100% composite transom core
- Ring deck design for more usable interior space
- Heavy-duty, 5" (12.7 cm) fiberglass-encapsulated transom w/3" (7.62 cm) fiberglass-impregnated, high-density composite core
- Hull/deck joint chemically sealed & bonded 360° & mechanically fastened every 6" (15.24 cm) w/316 stainless steel fasteners
- 1-piece molded fiberglass stringer grid w/integrated transom knee supports & gelcoat finish
- Closed-cell foam-injected stringer grid for USCG-approved flotation
- Vinyl ester barrier coat
- Premium marine-grade stainless steel hardware
- Heavy duty extra thick, closed-molded hatch covers w/finished undersides & integrated gaskets
- Heavy-duty rub rail w/stainless steel insert
- Aluminum backing plates for cleats, chocks & hinges
- 3-step, stowable dive ladder
- Recessed, pull-out, telescoping boarding ladder
Electrical, Mechanical & Plumbing Systems
- Aluminum main fuel tank w/4 baffles
- 464-gal. (1,756.43 L) main fuel tank
- Two 51-gal. (193.06 L) auxiliary saddle fuel tanks w/transfer pumps
- CZone™ controlled fuel transfer pumps w/manual bypass valves
- Electroplated Sea Chest keeps 4 pumps submerged for cooler running & longer life
- Forward 1,000 GPH (3,785.41 LPH) bilge pump w/auto float
- Two 4,000 GPH (15,141.65 LPH) aft bilge pumps w/auto float
- Fore & aft high-water bilge alarms
- Two 2,000 GPH (7,570.82 LPH) submerged auxiliary baitwell pumps
- Two 2,000 GPH (7,570.82 LPH) submerged baitwell pumps
- Pressurized raw water washdown pump
- High-speed raw water intake molded into hull bottom
- Pressurized freshwater pump
- 50-gal. (189.27 L) CZone™-monitored freshwater tank
- 1 Gulper macerator pump per cockpit floor fishbox
- Forward sump box w/800 GPH (3,028.33 LPH) gray water pump w/auto float
- 22-gal. (83.28 L) CZone™-monitored, coated waste tank
- USCG-compliant navigation lights
- Fore-, mid- & aft-facing White/Blue LED spreader lights in the hardtop
- Blue, diffused LED lighting under gunnels
- Automatic, dimmable threshold lights
- 240V, 60-amp shore power
- 1 cranking battery per outboard
- 2 house batteries
- 2 Marinco® Charge Master battery chargers—constantly on w/power supply (shore or Genset power)
- Thru-hull bonding harness for below-water corrosion resistance
- Brass seacocks on all below-water thru-hull fittings
- Labeled, tinned-copper wiring for easy maintenance & protection in a marine environment
- Wiring access hatches, battery switch panel & battery access inside head
Optional Trailer

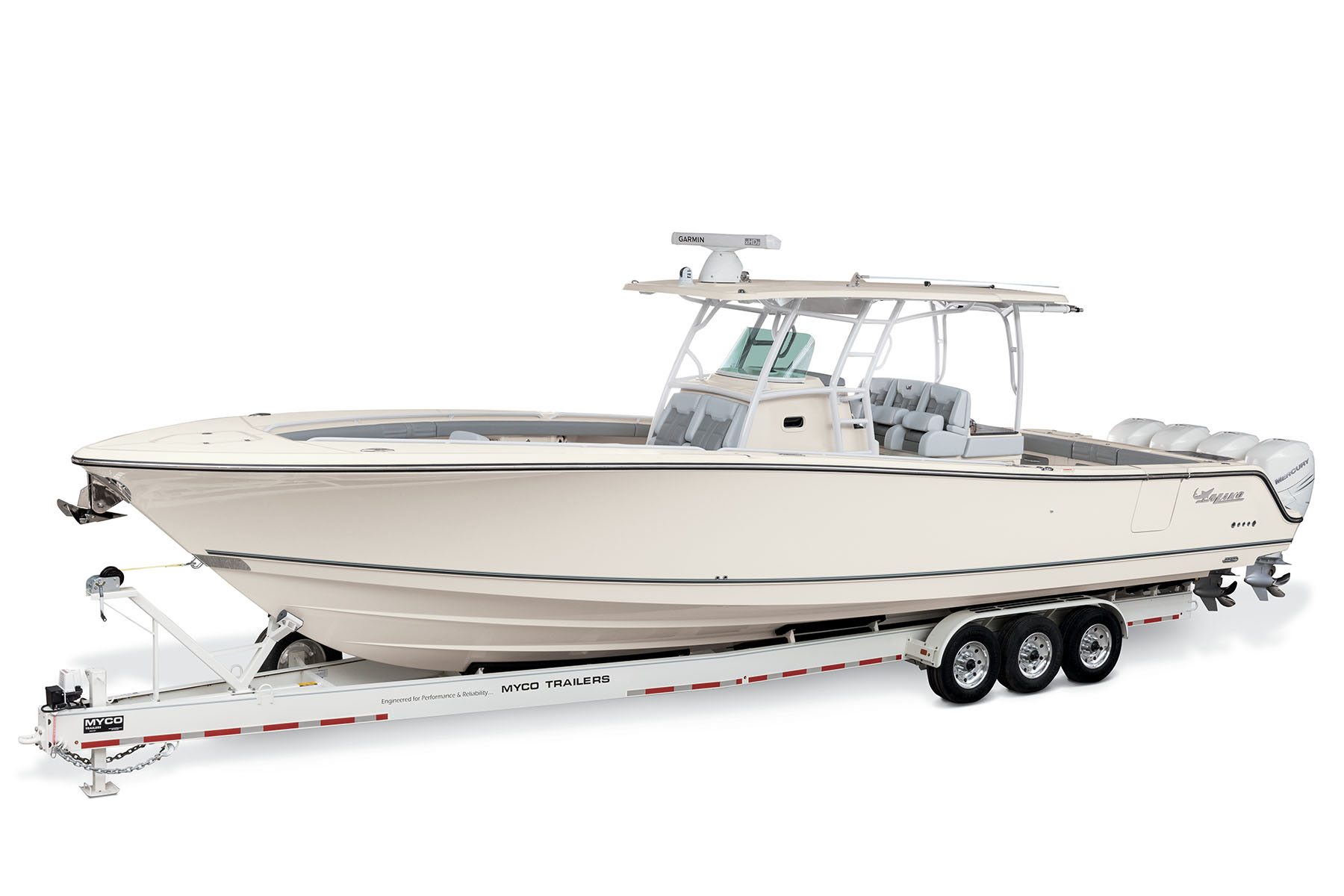

- OPTIONAL triple-axle MYCO galvanized & painted trailer available w/electric hydraulic disc brake
