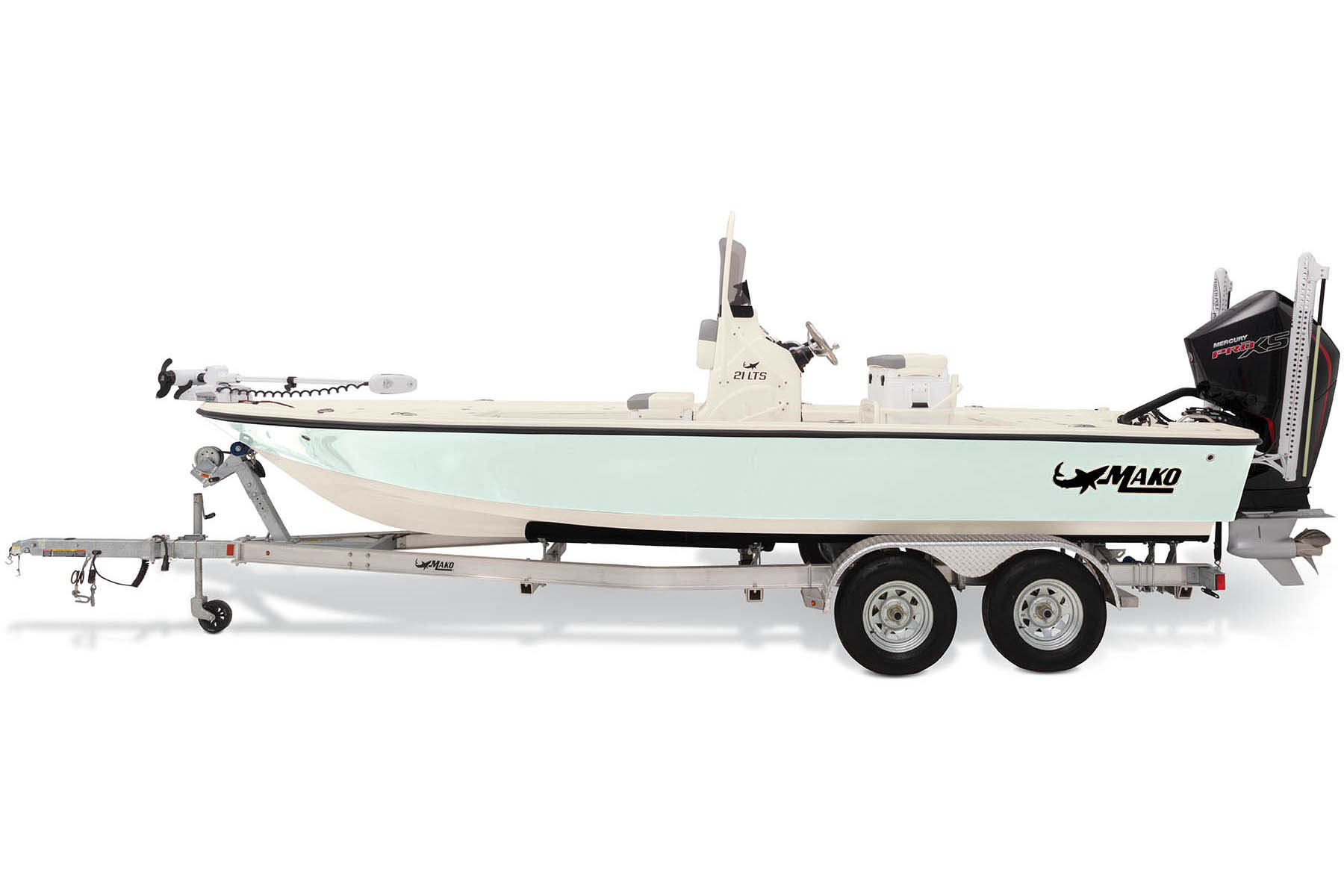

2019 21 LTS Guide Package

2019

21 LTS Guide Pkg.

w/ 150 XL FourStroke Mercury® FourStroke

Boat, Motor, & Trailer

View Price w/ Prep & Freight:

NO HAGGLE NO HASSLE® National Price Base Price	$44995 USD

NO HAGGLE NO HASSLE® National Price

Base Price

$44995

USD

Your Price w/ Prep & Freight:	USD

FIND A DEALER

Overview

The MAKO® 21 LTS Guide Package is a ferocious inshore predator that's set up for die-hard guides and professional anglers. Built to specs supplied by top redfish tournament pros, the 21 LTS sports our patented Rapid Planing System™ transom and MAKO performance fiberglass hull. This gets you on plane fast, increases engine efficiency and increases top-end speed by feeding air-free water directly into the prop.

The hull/deck joint is chemically bonded 360° and mechanically fastened every 6" with stainless steel fasteners for a lifetime of durability. And the 21 LTS comes with a MAKO tandem-axle aluminum trailer and a Mercury® outboard—you can optionally power up to 225 horsepower.

Specifications

Standard | Metric

Length	6.53 m	21' 5''
Beam	2.54 m	8' 4''
Bottom Width	2.24 m	7' 4''
Max. Recommended HP	225 HP
Fuel Capacity	227.1 L	60 gal.
Max. Person Capacity	7 persons
Max. Person Weight	498.95 kg	1100 lbs.
Max. Person, Motor & Gear Weight	952.54 kg	2100 lbs.
Interior Depth	43.18 cm	17''

Transom Height At Center Line	68.58 cm	27''
Deadrise	16 degrees
Draft	30.48 cm	12''
Dry Weight	1240.58 kg	2735 lbs.
Average Hull Weight	952.54 kg	2100 lbs.
Average Package Weight	1501.39 kg	3310 lbs.
Package Height	2.77 m	9' 1''
Storage Length	8.08 m	26' 6''

Motor Options

AVAILABLE MOTOR	ESTIMATED SPEEDS	PACKAGE PRICE	VIEW PRICE W/ PREP & FREIGHT
Mercury® FourStroke
150 XL FourStroke	-	$44995 USD	Select Dealer
Mercury® Pro XS®
200 XL Pro XS® FourStroke	-	$49245 USD	Select Dealer
225 XL Pro XS® FourStroke	-	$51120 USD	Select Dealer
225 XL Pro XS® FourStroke w/DTS controls	-	$52895 USD	Select Dealer

Features

Guide Pkg.

Minn Kota® Riptide® Terrova® 24V, 80-lb. (36.29 kg) thrust, 60" (1.52 m) shaft trolling motor w/i-Pilot®
2 Power-Pole® Pro Series II 8' (2.44 m) White shallow-water anchors
8" (20.32 cm) hydraulic jack plate
Simrad® NSS9 evo2 9" (22.86 cm) chartplotter MFD
Custom stainless steel steering wheel w/knob
Pro-Air® aeration system for aft livewell
2 console rod holders
Starboard rod storage organizer
3-bank, 30-amp trolling battery charger
Powder-coated rails (Gray or White)
Navico® C-MAP Insight™ HD mapping
Free 1-year subscription to Navico® Genesis™ Edge

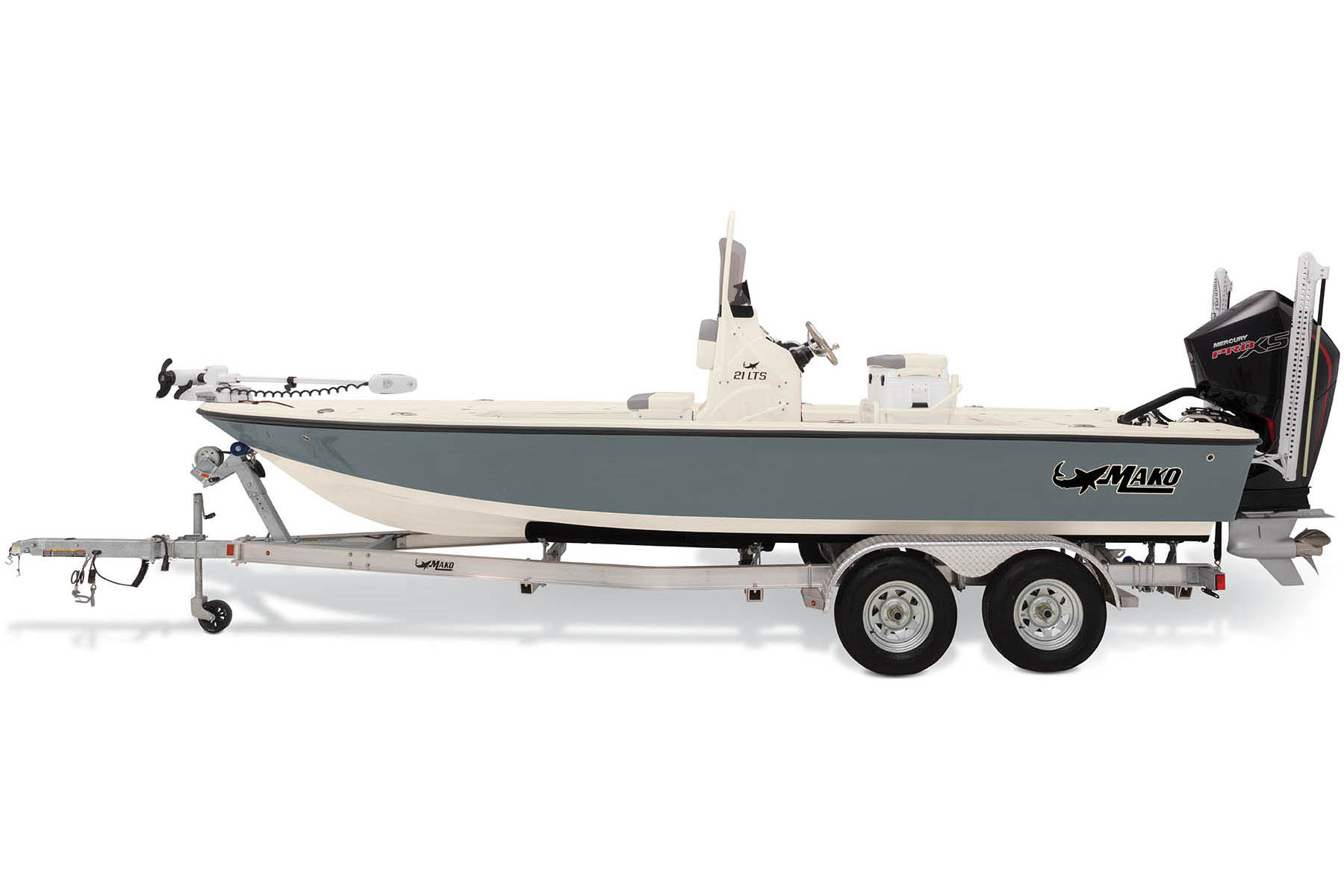

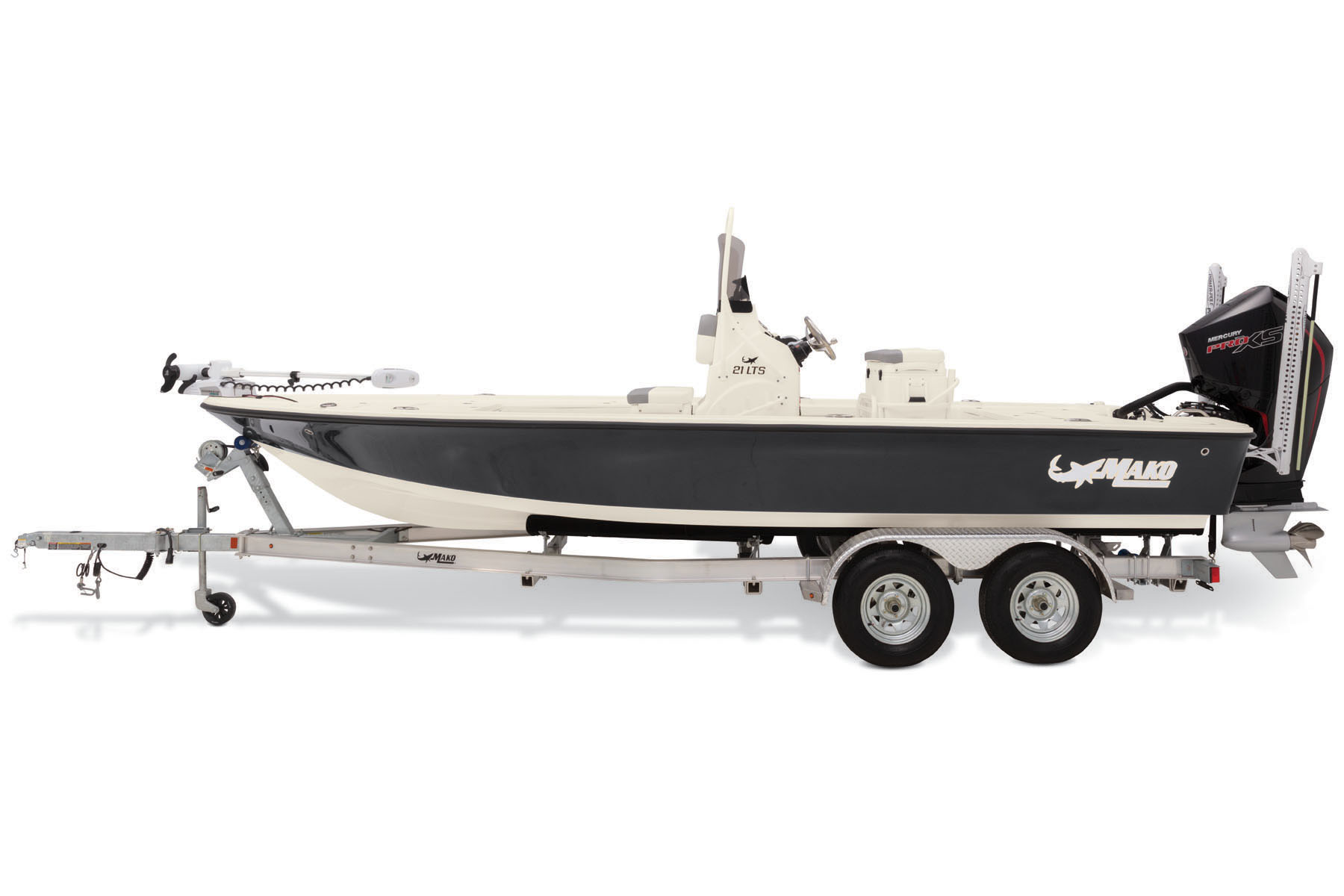

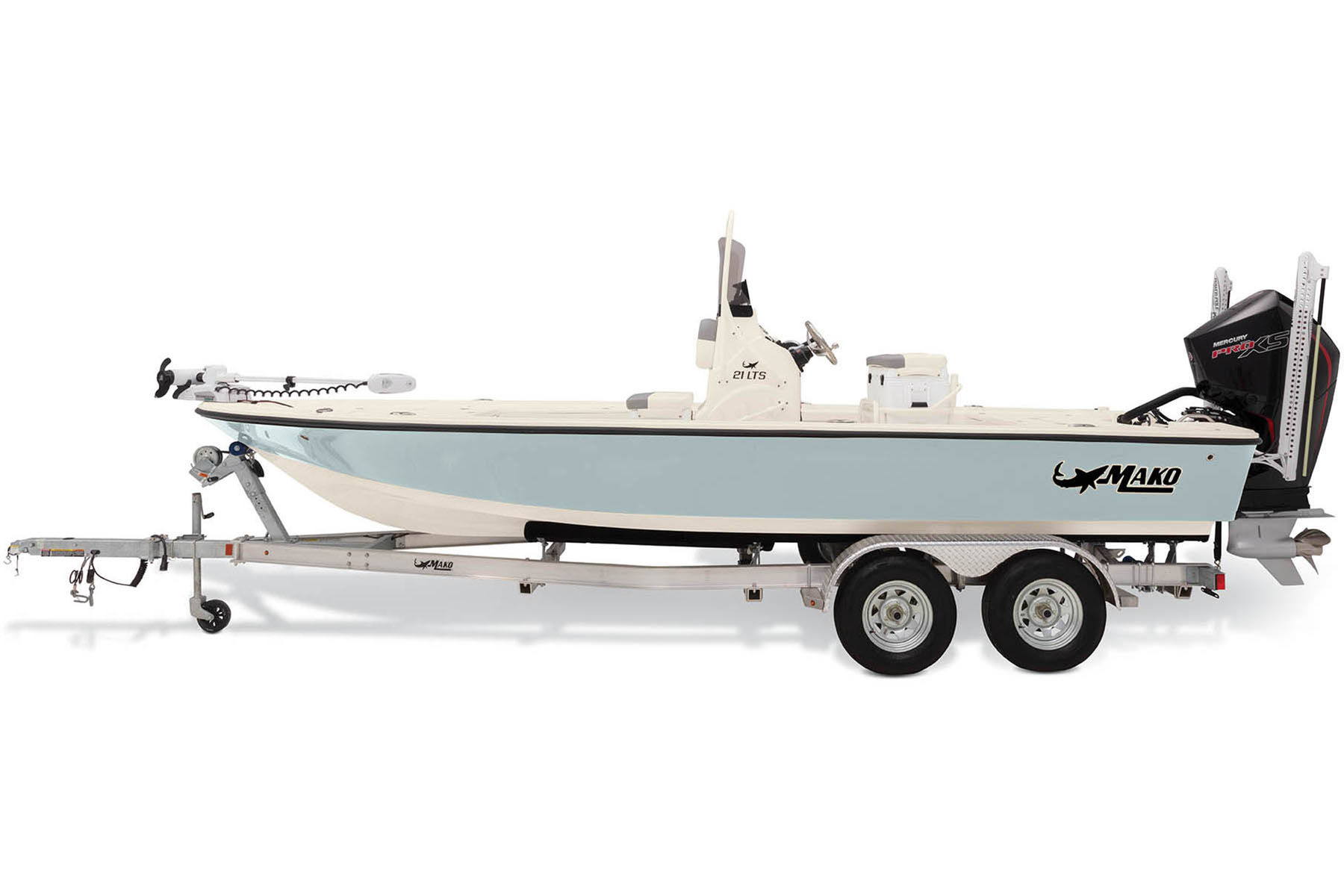

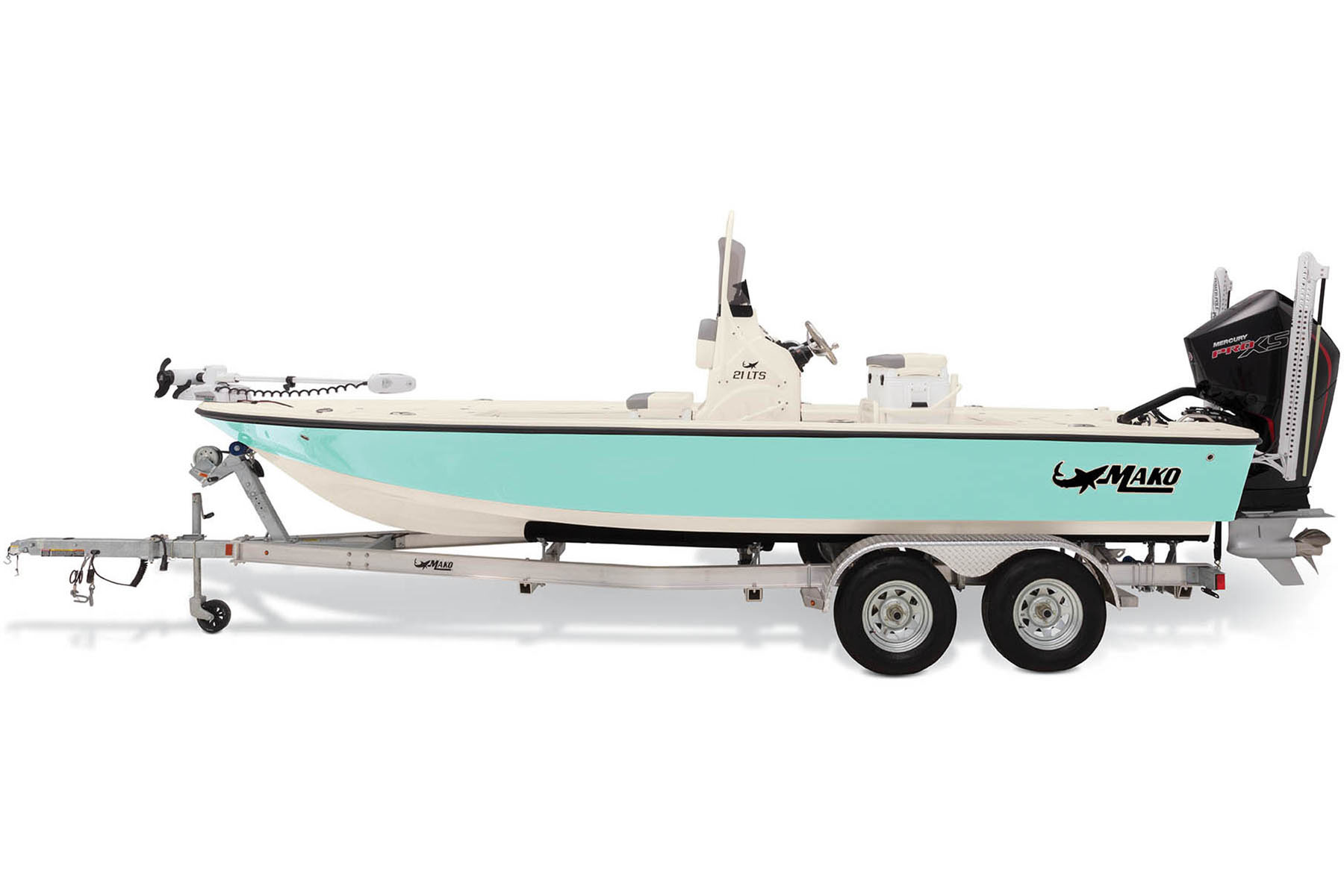

Color: standard 2-tone hull choice in Gulfstream Blue, Onyx Black, Pompano Silver, Seafoam Green, NEW Trigger Gray, Victory Red or Wahoo Blue

Certification & Safety

Backed by MAKO® Assurance 5+Life—the best factory warranty in saltwater boats
NMMA® certified
Factory leak tested for hull, plumbing & fitting integrity
Stainless steel hardware & fasteners for corrosion resistance
Fire extinguisher
Horn

Console

Elevated fiberglass console
SeaStar™ hydraulic steering
Analog tachometer, fuel gauge & water pressure gauge
Battery/gear storage
Removable 72-qt. (68.14 L) forward-console cooler/seat w/integrated cushion
Heavy-duty anodized aluminum grab rail
Contoured acrylic windscreen
Area to flush- & surface-mount additional electronics
2 stainless steel drink holders w/drainage system

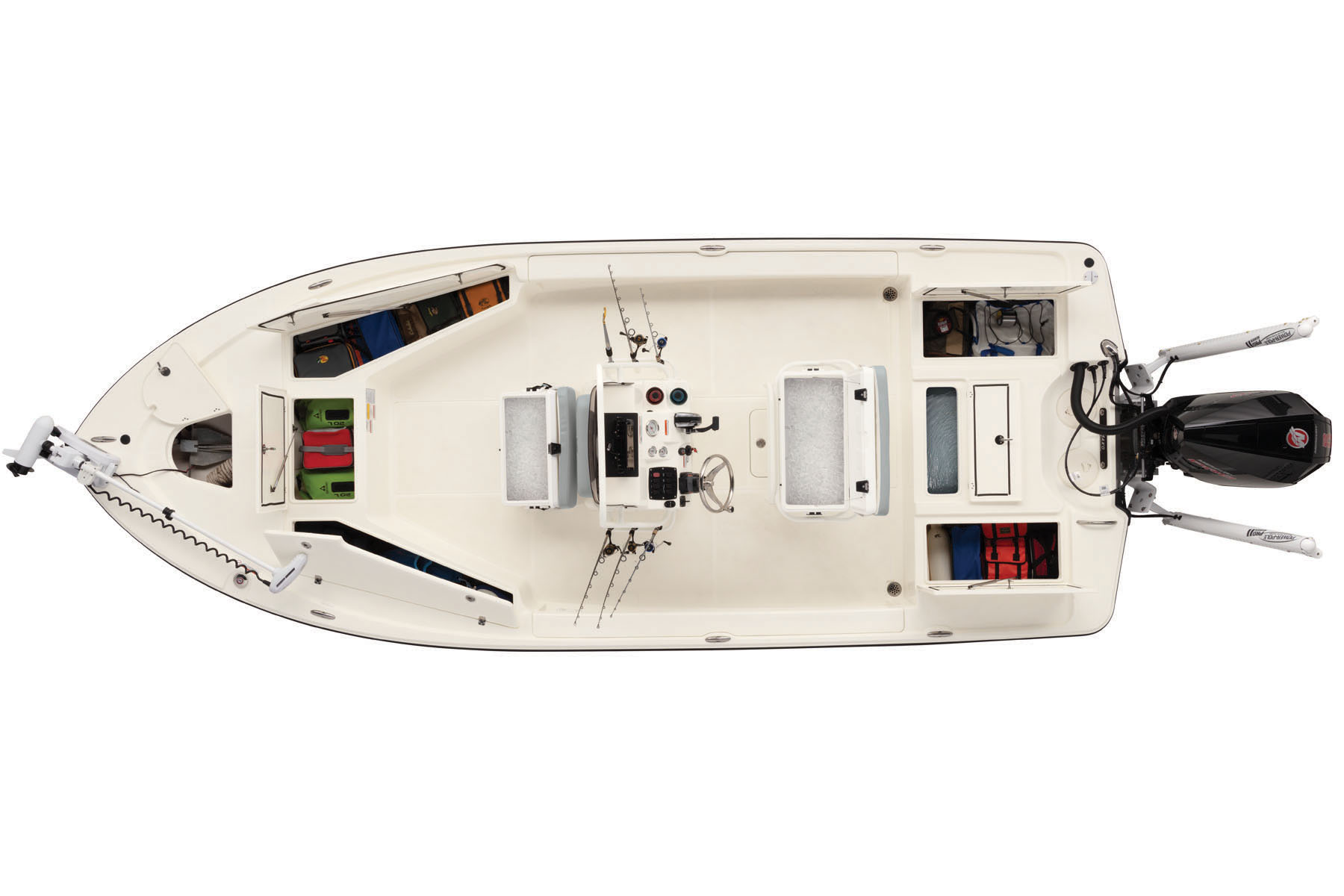

Interior

Anchor locker
2-tone high-density marine-grade vinyl upholstery w/stain-resistant coating & composite substrates on seats
360° fishability
90-qt. (85.17 L) bow port & starboard boxes w/stainless steel compression latches
136-qt. (128.7 L) bow center storage compartment w/locking stainless steel compression latch
Anodized aluminum helm seat frame w/4-rod rocket launcher & removable 94-qt. (88.96 L) cooler w/integrated seat cushion
2 large aft guttered & gasketed lock-down dry storage compartments
Closed-molded laminate hatch covers w/finished undersides
Lighted aft 30-gal. (113.56 L) livewell w/Pro-Air® aeration system
Closed-molded coaming boards
Bilge access hatch

Performance

Award-winning RAPID PLANING SYSTEM™ (RPS) transom for quicker holeshots, shallow-water abilities & better overall performance
Factory-rigged w/matched propeller

Hardware & Accessories

Seven 6" (15.24 cm) stainless steel low-profile pull-up cleats (bow, fore, midship & aft)
Powder-coated transom reinforcement plate w/MAKO® logo
Reboarding step & stainless steel grab handle
Stainless steel & bronze thru-hull fittings
Stainless steel bow & stern eyes
Stainless steel fuel fill

Construction & Exterior

100% composite construction
Encapsulated, fiberglass-infused transom w/high-density Coosa® Bluewater composite core
Molded, patterned non-skid casting platforms & cockpit sole
Console chemically bonded & mechanically fastened to deck w/.25" (6.35 mm) aluminum backing plates
Hull/deck joint chemically bonded & mechanically fastened w/stainless steel fasteners for strength & durability
Integrated 1-piece molded, gelcoated fiberglass stringer grid system w/gelcoat finish & fully injected w/closed-cell foam for USCG-approved flotation
High-density, fiberglass-infused trolling motor mounting core
Marine-grade stainless steel hardware & fasteners throughout
Gelcoat finish on all bulkheads & compartment interiors
Self-bailing cockpit
Composite seat substrates
Heavy-duty rub rail

Electrical, Mechanical & Plumbing Systems

Integrated EPA-compliant fuel system w/rotocast corrosion-free fuel tank
1,000 GPH (3,785.41 LPH) cartridge baitwell pump w/auxiliary inlet port
High-speed raw water pickup
USCG-compliant navigation lights
2 cockpit courtesy lights
Interstate® cranking battery w/tray
6-circuit ATO/ATC distribution fuse block
Marine-grade rocker switches w/push button breaker protection
Marine-grade tinned wiring w/submersible connectors
12V outlet

Trailer

Custom tandem-axle trailer
Tandem-axle brakes
Sure Lube hubs
1,000-lb. (453.59 kg) capacity tongue jack
Aluminum construction
Stainless steel hardware
Galvanized steel components
LED marker lights
PVC loading guides

Options

Electronics

Auto bilge switch	$40
SmartCraft® digital gauges	$650

Rigging

Dual battery rigging	$155
Remove MAKO® turn-key installation (credit given)	$-250

Accessories

Flush-mounted compass	$125
Tackle box management system	$300
2 flush-mounted aft rod holders	$100
Port & starboard side rails	$310

Performance & Steering

Hydraulic jack plate w/emergency ladder $1590

Functional

Deluxe tournament console grab rail	$465
Bike seat (includes seat, base, pole & spyder)	$145
Tournament seat (includes seat, base, pole & spyder)	$265
Forward & aft bike seats (includes seats, bases, poles & spyders)	$290
Forward & aft tournament seats (includes seats, bases, poles & spyders)	$565
1 bike & 1 tournament seat (includes seats, bases, poles & spyders)	$440
Helm leaning post & aft center seat backrests w/center cushion	$925
Helm leaning post & aft center seat backrests w/port, center & starboard cushion set	$1190
Aft port & starboard casting deck jump seats	$160
Leaning post backrest & center cushion	$500
Removable leaning post backrest w/aft port, center & starboard cushion set	$750
Removable helm (1) & stern (1) seat backrests	$550
Removable bow casting platform	$590
Poling platform (includes push-pole holders & dual rod holders)	$2160
Raw water washdown	$200
Anchor locker/casting net tub	$75
Active trim	$575
Active trim w/digital gauges	$510
Trim tabs (factory installed, mandatory w/115 motors)	$800

Tops

Canvas T-top $3480

Covers & Curtains

Ratchet cover—Black (fits boats w/ or w/out trolling motor, but will not fit w/T-top)	$750
Ratchet cover w/poling platform—Black (will not fit w/T-top)	$800
Ratchet cover w/trolling motor & poling platform—Black (will not fit w/T-top)	$800

Trailer

Spare tire kit for standard trailer w/galvanized wheel & ST215/75D14 radial tire	$325
Deluxe package w/tandem torsion axles, tandem-axle brakes, aluminum wheels, aluminum spare tire carrier & wheel/tire	$1000
